5.3.4 Terminal Locations - Unit Size 5X
Terminal locations - Unit Size 51
Take the following position of the terminals into consideration when designing the cable access.

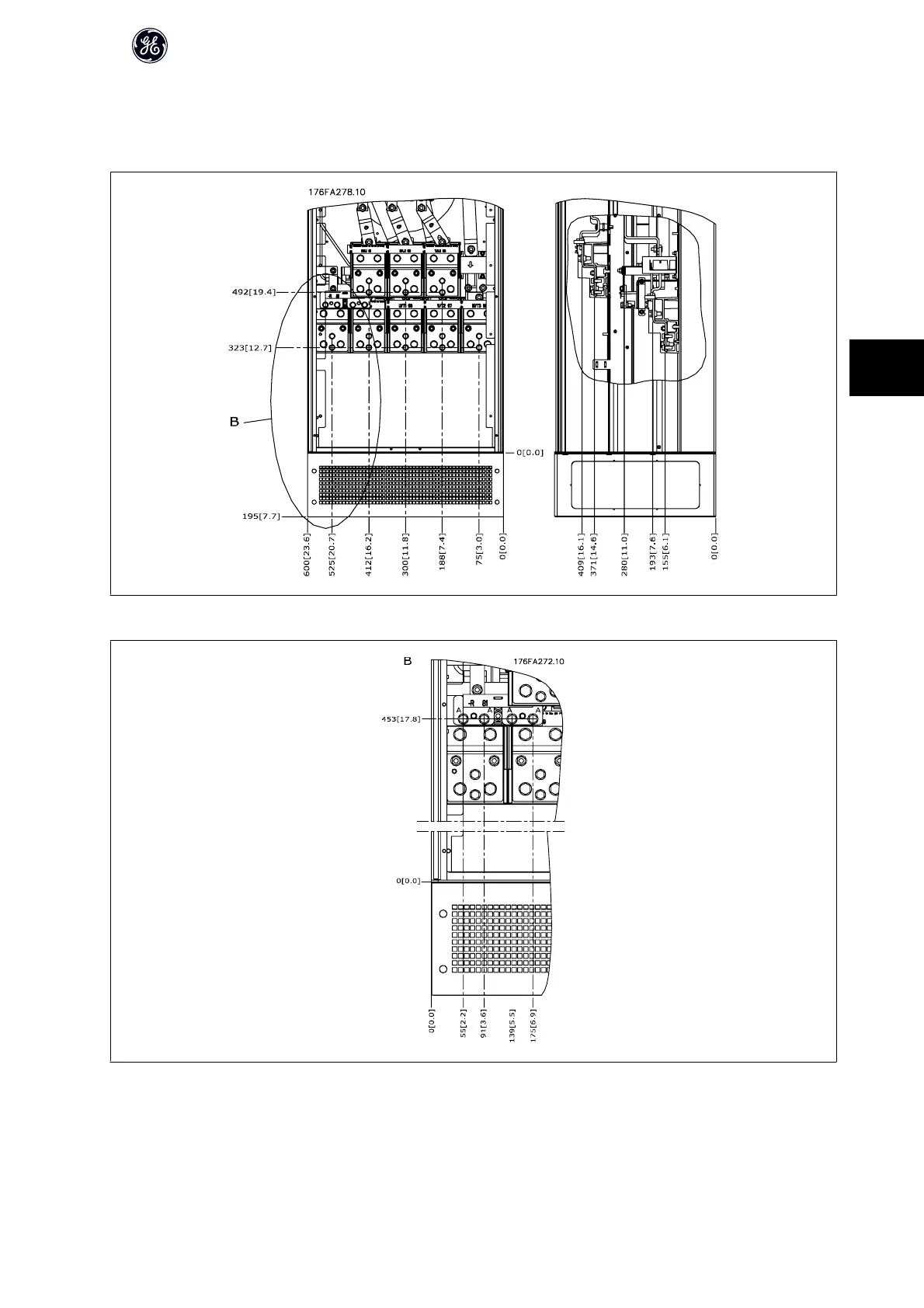

Illustration 5.16: IP21 (NEMA Type 1) and IP54 (NEMA Type 12) drive type power connection positions
Illustration 5.17: IP21 (NEMA type 1) and IP54 (NEMA type 12) drive type power connection positions (detail B)
AF-600 FP High Power Operating Instructions
55
5
