GERAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

8-10 Section 8-3 - System Software - Installation/Upgrade Procedure

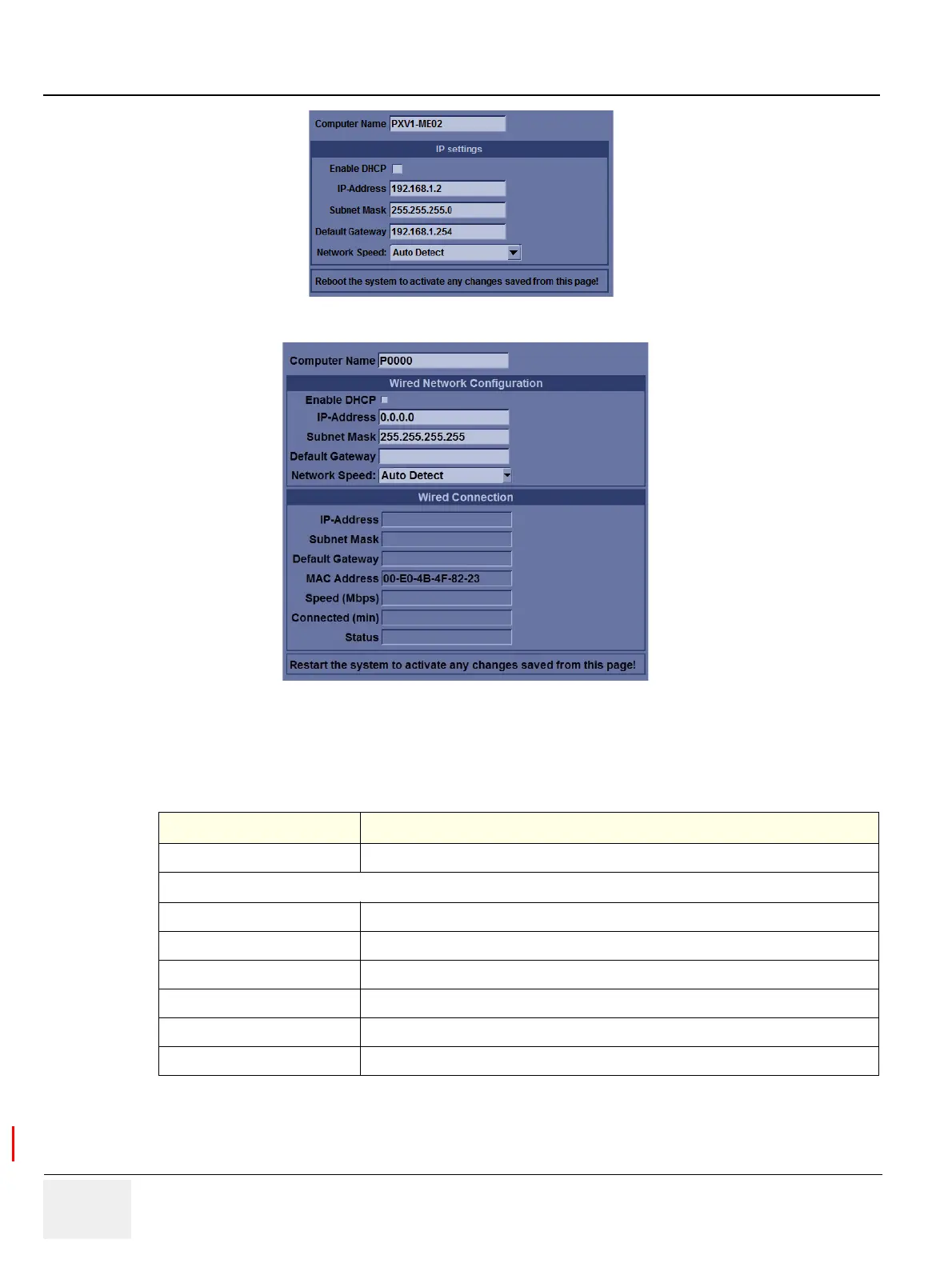

Figure 8-1 Connectivity - Recording the TCP/IP settings (R1.x.x)

Figure 8-2 Connectivity - Recording the TCP/IP settings (R2.x.x and later)

2) Record all settings in Table 8-4.

8-3-5-2-1-3 Connectivity — WLAN

1) Press Utility--> Connectivity--> TCP/IP--> Wireless Network Configuration--> Configuration.

The Wireless Network Configuration tool appears. Available Wireless Networks appear.

Table 8-4 Record settings from TCP/IP screen

Parameter Value

Computer Name

IP Settings

Enable DHCP ON / OFF

IP-Address

Subnet Mask

Default Gateway

Network Speed

MAC Address (R2.x.x)
