8-118 Section 8-18 - Replacement of Front fan

Section 8-18

Replacement of Front fan

8-18-1 Manpower

1 Person, 10 minutes.

8-18-2 Tools

Standard Phillips Screwdriver.

8-18-3 Removal Procedure

1) Remove the Front Cover from system. (refer to section 8-6)

2) Remove 4 screws and disconnect fan connector.

3) Unlock cable clamp (square), then pull out connector and cable. Refer to following figures.

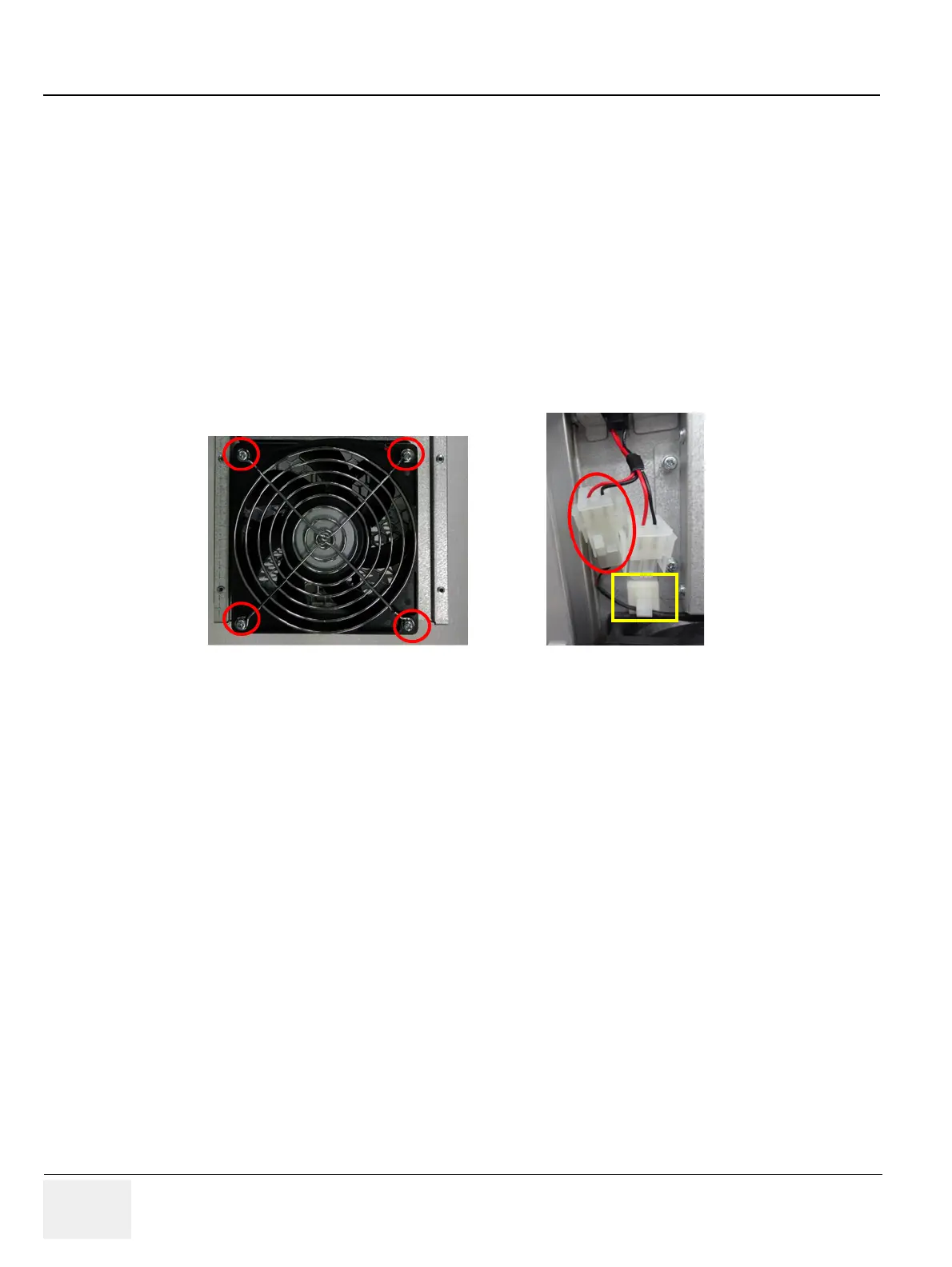

Figure 8-138 Fan screw points and disconnecting fan connector

8-18-4 Installation Procedure

Parts to be installed in reverse order of removal.

8-18-5 Functional Check

Visual examination.

1) Verify that Fan is rotating when system is turned ON.
