GE Vivid E9 Service Manual

GE H EALTHCARE
D IRECTION GA091568, R EVISION 5 VIVID E9 S ERVICE M ANUAL
8 - 40 Section 8-5 - Replacing Covers and Bumpers
8-5-2-3 Side Covers installation
Follow these steps to install the Side Covers:
1.) Align tabs at the top inside of Side Cover with the slots on Top Cover.
2.) Place the top edge of the Side Cover so it hooks onto the Top Cover.
3.) Align and squeeze the front edge of the side cover to latch it into place.
4.) Position the Side Cover’s side lock first.
5.) Position the Side Cover’s front lock.
6.) Align and squeeze the bottom front of the side cover to latch it into place.
7.) Position the Side Cover’s rear lock, lifting up the rear tab and guiding it into place.
8.) Align and squeeze the bottom rear of the side cover to latch it into place.

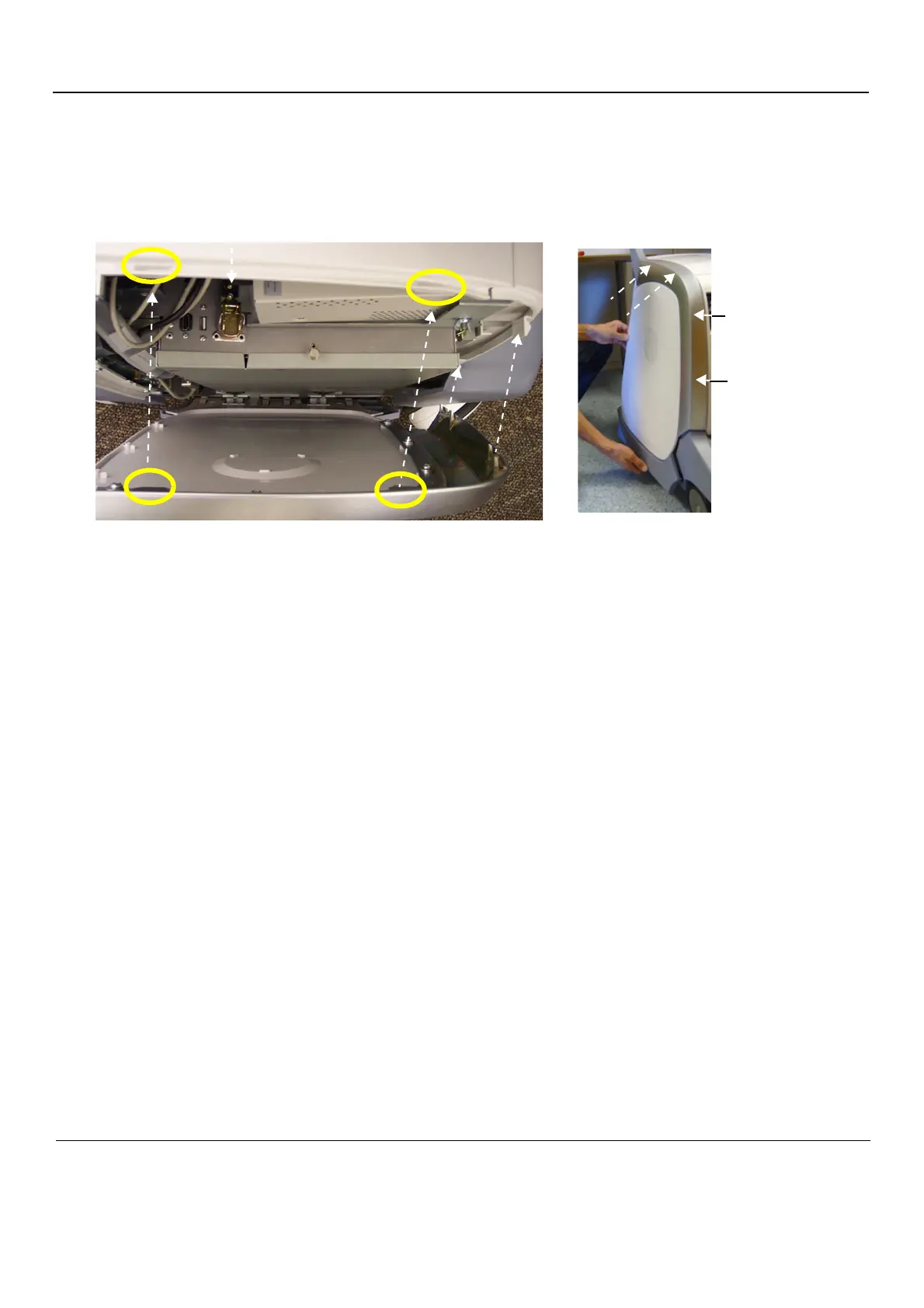

Figure 8-47 Hook the Side Cover onto Top Cover
SIDE LOCK
LOCATION
FRONT LOCK
LOCATION

GE Vivid E9 Specifications

General

Power Requirements	100-240 VAC, 50/60 Hz
Display	High-resolution LCD monitor
Doppler Modes	Color Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
3D/4D Imaging	Yes
Advanced Features	Speckle Reduction Imaging
Connectivity	DICOM, USB, Ethernet
Transducer Types	Linear Array
Operating Temperature	10°C to 40°C
Humidity Range	30% to 80% non-condensing
