GE Vivid E9 Service Manual

GE H EALTHCARE
D IRECTION GA091568, R EVISION 5 VIVID E9 S ERVICE M ANUAL
9 - 50 Section 9-8 - XYZ parts
Section 9-8
XYZ parts

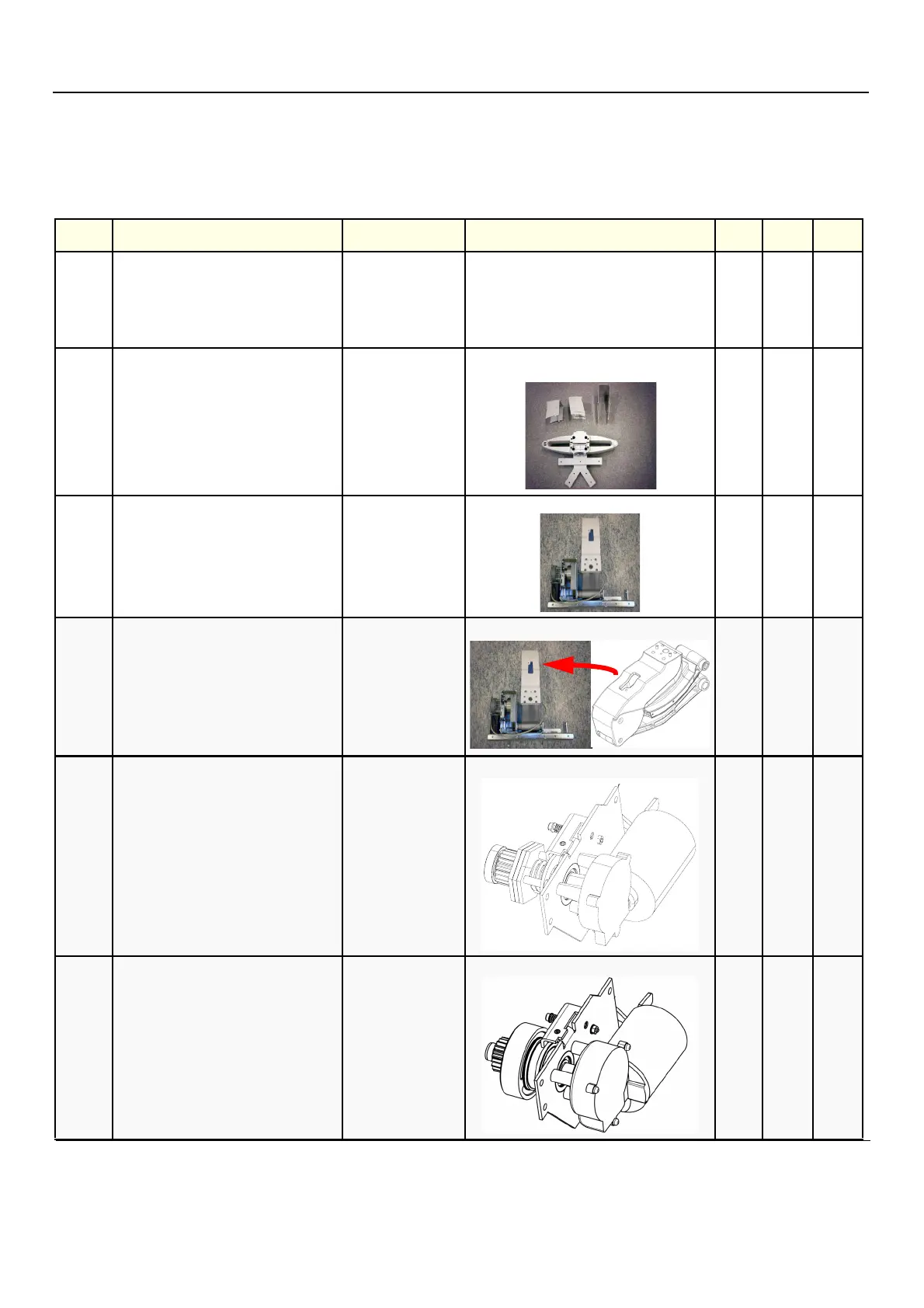

Table 9-24 XYZ parts sheet 1 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU
1.
XY MECHANISM GA200946
“FROG LEG”
Replaces GA200036
NOTE! This part requires that either the
XYZ controller, Part Number GA200795 or
Part number GA200994, is installed.
1NY
2.
XY MECHANISM GA200036
“FROG LEG”
1NY
3.
Z-MECHANISM GA200039 1NY
4.
Z-Mech Sub Assy GA200134 1 N Y
5.
DRIVE GEAR ASSEMBLY GA200750 1 N Y
6.
DRIVE GEAR ASSEMBLY GA200177 1 N Y
