GE H
EALTHCARE
D
IRECTION
GA091568, R
EVISION
5 VIVID E9 S
ERVICE
M
ANUAL
3 - 10 Section 3-2 - Setup reminders

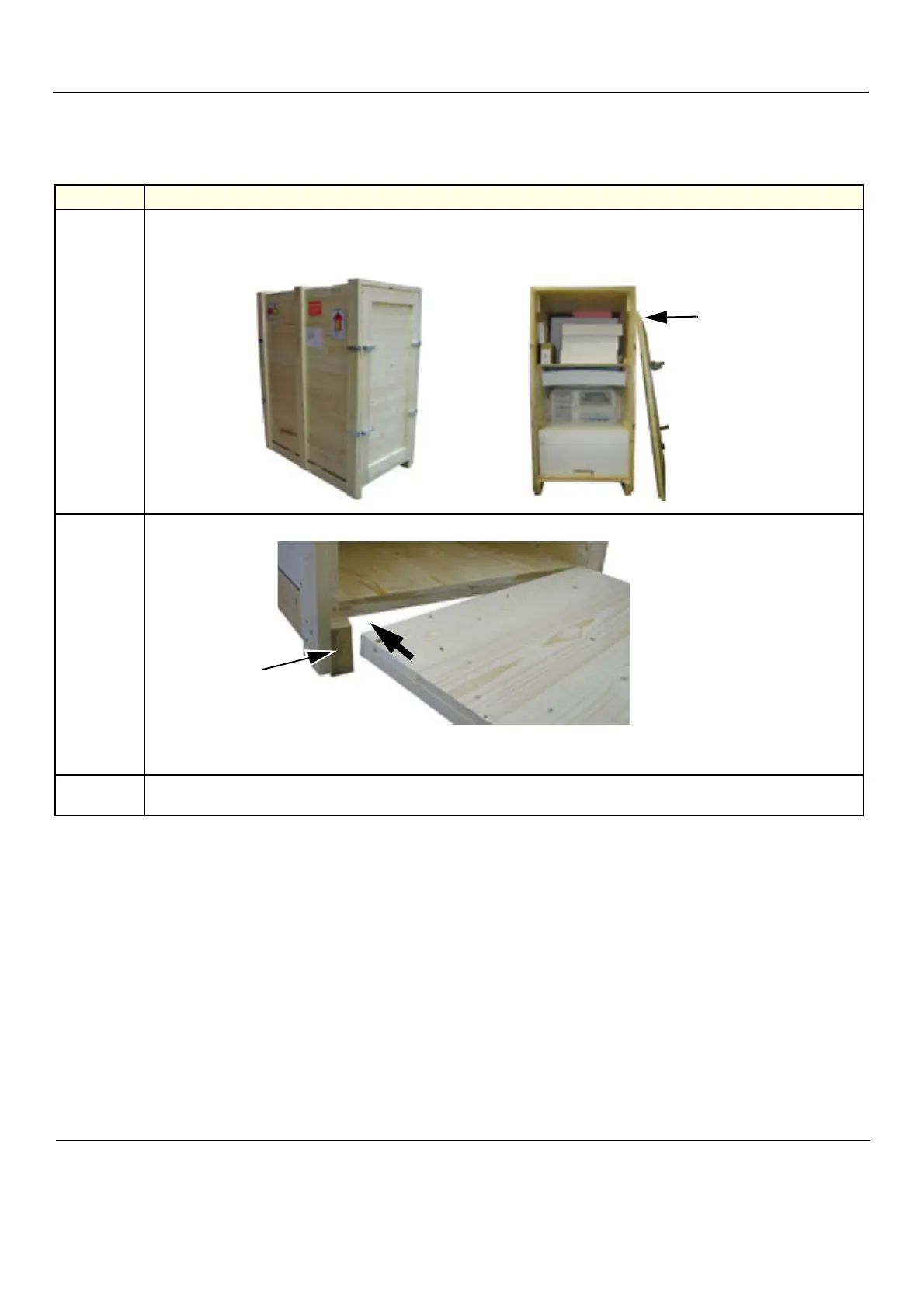

3-3-5 Unpacking VIVID E9 from the Wooden Box
Table 3-7 Unpacking VIVID E9 from the Wooden Box sheet 1 of 2
Step Task
1. Open the four hinges on each door and remove the doors.
One of the doors are used as ramp out off and into the transportation box.
On the first version of the Transportation Box, only the front door is meant to be used as a ramp. It has bevel cut in one end.
2.
Place the front door as a ramp against the rear edge of the pallet.
3.
Carefully remove the accessory box, and any other items, including the wooden shelf above the scanners Operator Panel and all
the filling material, from the Transportation Box.
Front door bevel cut.
This end of the door
should be used as
the lower end of the
ramp.
On the second version transportation box, the ramp is placed
directly on the labank ends.
“Labank”
To Next Page
