Chapter 8 - Replacement procedures 8 - 97
8-6-6-2 LCD Mount Lock removal procedure
Follow these steps to remove the LCD Mount Lock:
NOTE: It is not necessary to remove the LCD Monitor or the LCD Arm.
1.) Remove the 2 screws securing the LCD Mount Lock.
2.) Remove the LCD Mount Lock.
8-6-6-3 LCD Mount Lock installation procedure
Follow these steps to install the LCD Mount Lock:
1.) Position the LCD Mount Lock.
2.) Install the 2 screws securing the LCD Mount Lock.
3.) Install the Bulkhead Cover.

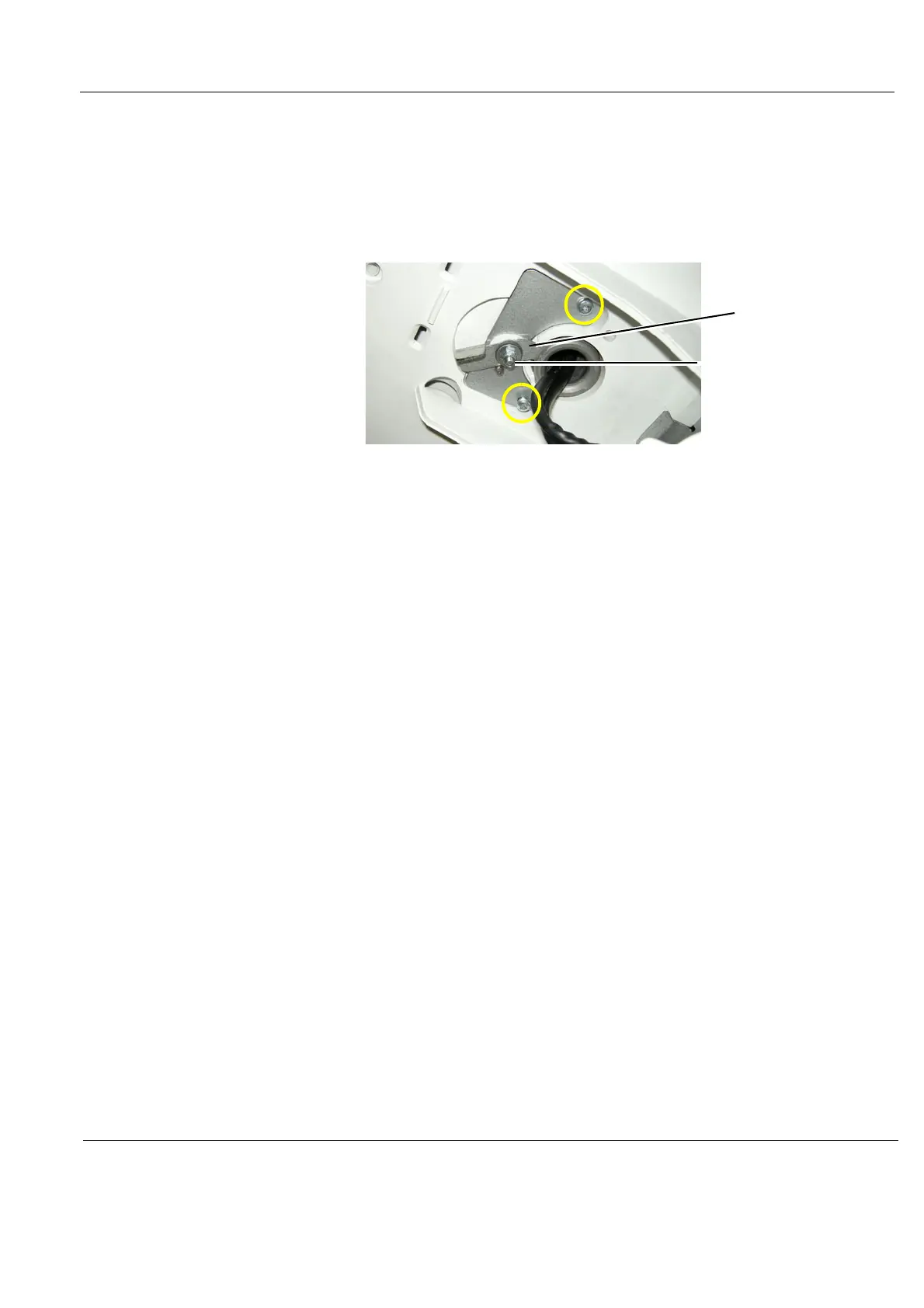

Figure 8-106 Screw placement, LCD Mount Lock
LCD MOUNT LOCK
HANDLE
DO NOT
LOOSEN NUT
