Chapter 9 - Renewal parts 9 - 31
5.

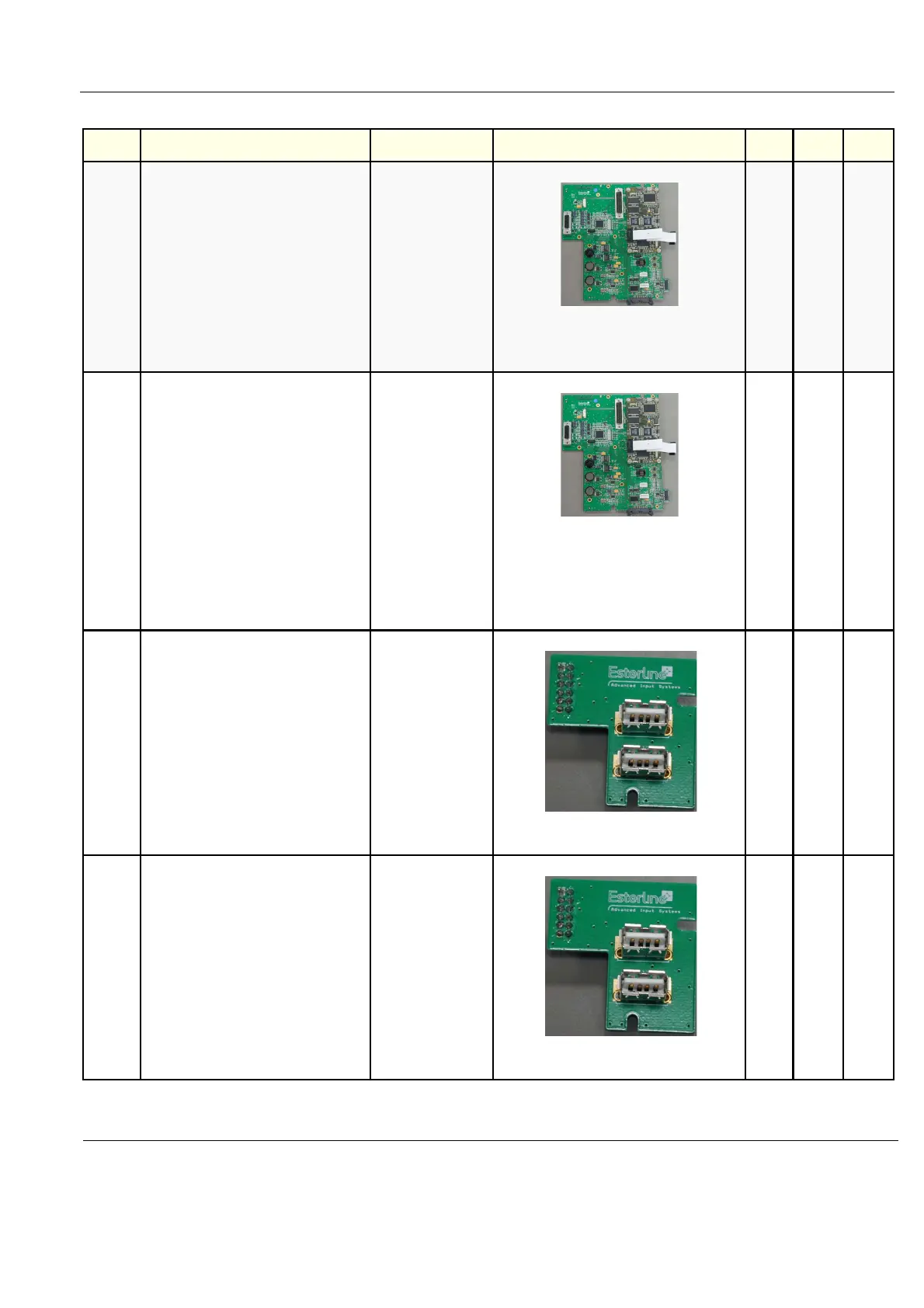

Main Controller Board With USB Board
and Cables 2
GA200718
OBSOLETE
OBSOLETE.
Use 5207000-40 as the replacement.
Note: Use the old LCD cable.
1 N Y
6.
Main Controller Board With USB Board
and Cables
GA200448
OBSOLETE
OBSOLETE.
Use 5207000-40 as the replacement.
Note: Use the old LCD cable.
NOTE! GA200448 is compatible with the
USB Connector Board models,
GA200441 and GA200717.
1NY
7.
USB Connector Board 2 GA200717
NOTE! This board is compatible with
both GA200448 and GA200718.
1NY
8.
USB Connector Board GA200441
NOTE! This board is only compatible
with GA200442
1NY
Table 9-19 Top Console PCBs (cont’d) sheet 2 of 3
ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU

GE Vivid E9 Specifications

General

Power Requirements	100-240 VAC, 50/60 Hz
Display	High-resolution LCD monitor
Doppler Modes	Color Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
3D/4D Imaging	Yes
Advanced Features	Speckle Reduction Imaging
Connectivity	DICOM, USB, Ethernet
Transducer Types	Linear Array
Operating Temperature	10°C to 40°C
Humidity Range	30% to 80% non-condensing
