GE Vivid E9 Service Manual

GE H EALTHCARE
D IRECTION GA091568, R EVISION 5 VIVID E9 S ERVICE M ANUAL

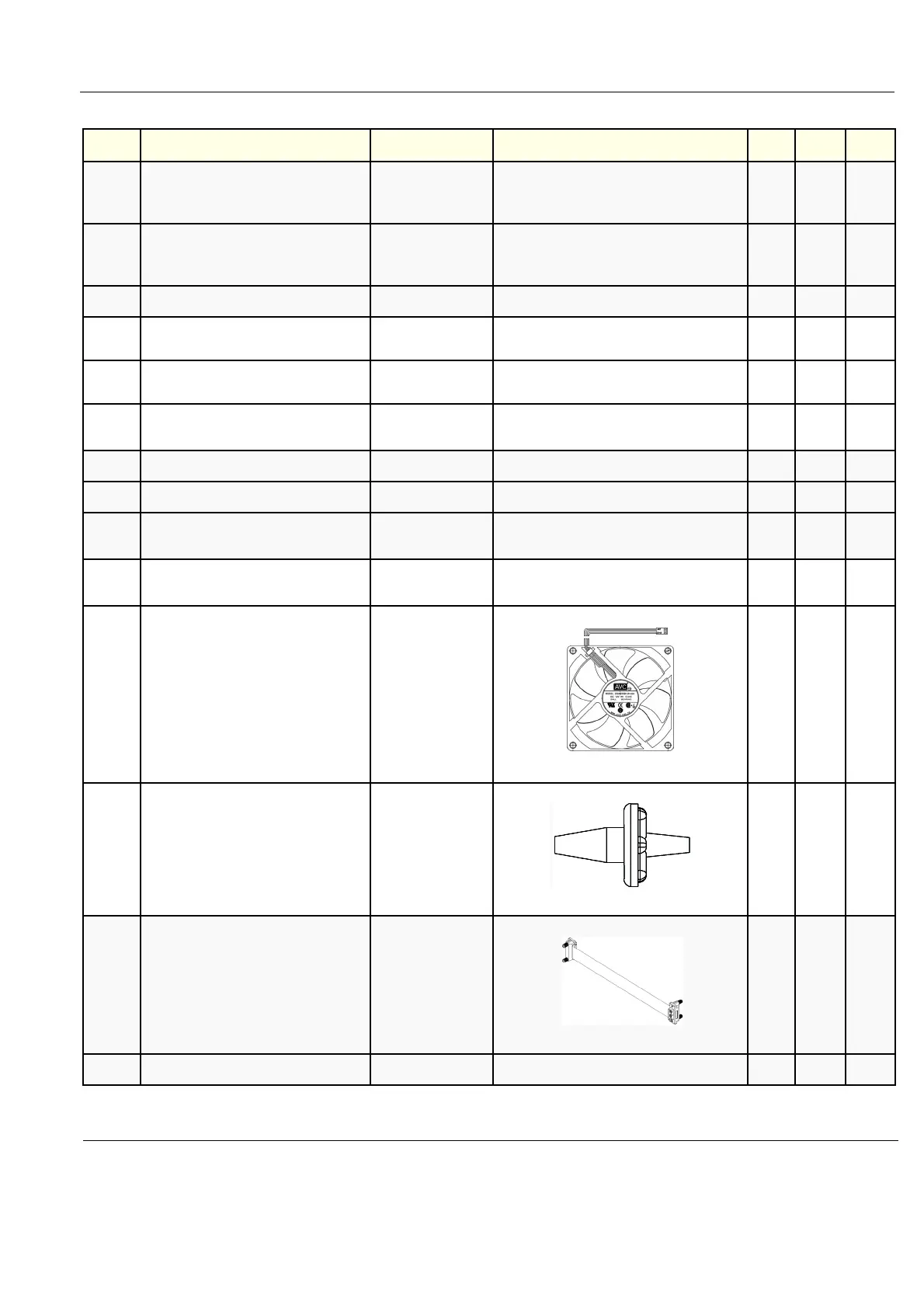

Chapter 9 - Renewal parts 9 - 63
9.
Yggdrasil BEP IO Assembly 2 GA200878
I/O ASSEMBLY
For use with: GA200890, GA200900 and
GB200003.
1 N Y
10.
Yggdrasil BEP IO Assembly 5321212
I/O ASSEMBLY
For 5145000-10, GA200800 and
GA200805.
1 N Y
11.
Yggdrasil BEP Cover with Gaskets GA200897 For GA200890, GA200900 and GB200003 1 N Y
12.
YGGDRASIL BEP COVER 5266155
For 5145000-10, GA200800 and
GA200805.
1NY
13.
BEP FRONT PANEL ASSEMBLY
WITHOUT USB, YGG
GA200873 For GA200890, GA200900 and GB200003 1 N Y
14.
BEP FRONT PANEL ASSEMBLY
WITHOUT USB, FREY
5301222-3
For 5145000-10, GA200800 and
GA200805.
1NY
15.
RJ-45 Coupler and Flange Category 6 5176472-2 For all BEPs 1 N Y
16.
BEP Power Supply, Vivid E9 GA200876 For GA200890, GA200900 and GB200003 1 N Y
17.
GE CUSTOM POWER SUPPLY
BOARD
5393800-2
For 5145000-10, GA200800 and
GA200805.
1 N Y
18.
Digital Video Recorder Circuit Board 5135840
OPTION
May be used on all BEPs
1NY
19.
BEP Fan 5198607
For all BEPs
1NY
20.
SHOCK MOUNT - HARD DRIVE 5267412
For all BEPs
1NY
21.
DVI FLEX, MAIN, YGGDRASIL BEP 5197216
For all BEPs
1 N Y
22.
BEP CMOS Battery (BIOS BATTERY) 2404028-7 1 N Y
Table 9-31 BEP5 Spare Parts (cont’d) sheet 2 of 2
ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU
