E)EXP-SC-PM-VDI100speedfeedbackcard:SinCosencodercardforPermanentMagnetmotor
EXP-SC-PM-VDI100terminalspecication
Terminal Name Description
Vcc Power Supply for encoder: 5V±5%, 200mA
GND Power Source and Input Signal Common
A, /A, B, /B, R, /R, C, /C, D, /D Encoder Signal Input Terminal, RS-422 Level
Input
AO, /AO, BO, /BO Pulse monitor output, RS-422 Level Output
E Shielding connection

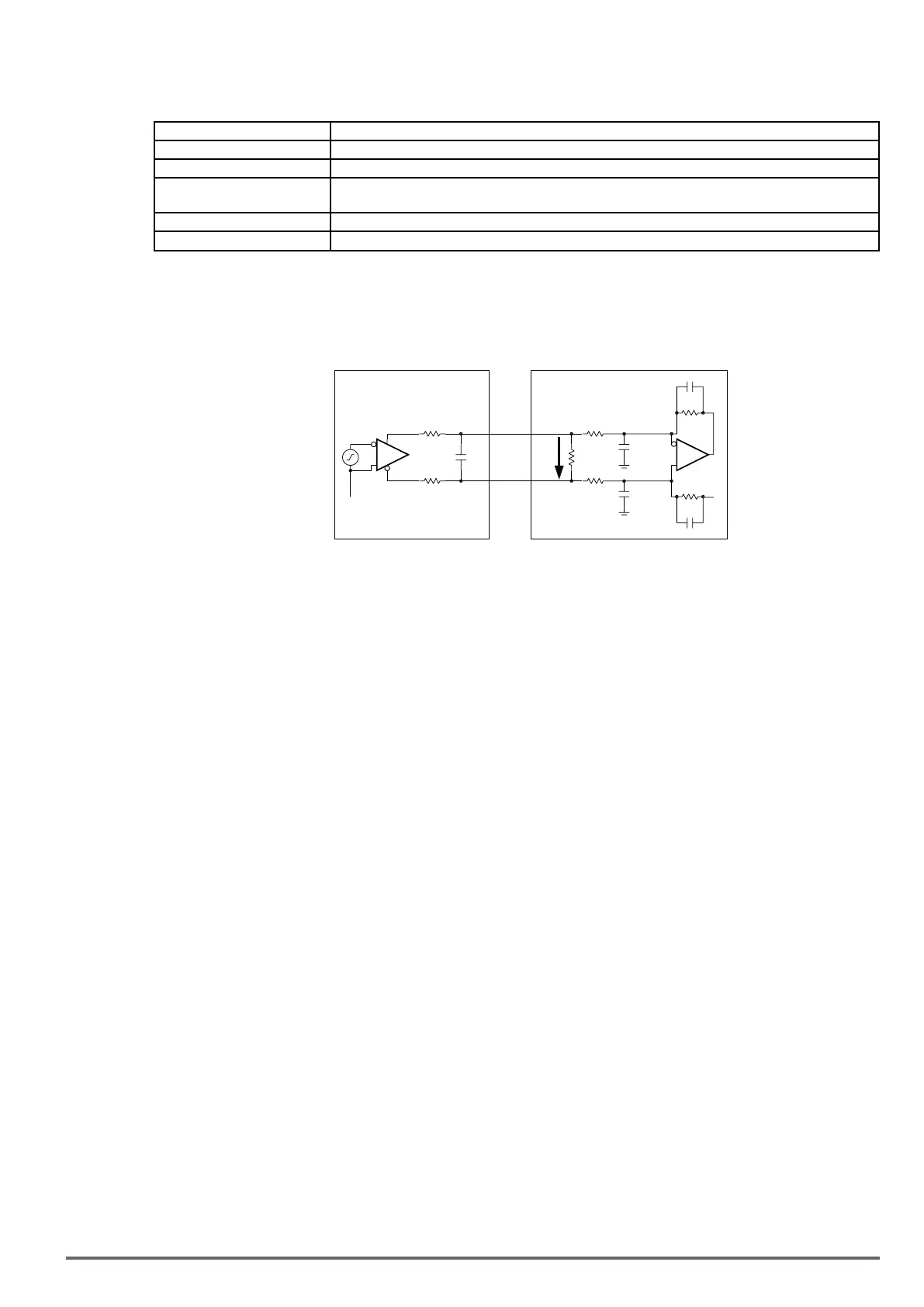

EXP-SC-PM-VDI100 block diagram
Vi
Vo
A+,B+,R+
A-,B-,R-
A
B
R
ENCODER EXP-SC-PM-VDI100
VDI100 • Instruction manual 347
