Gendex GXDP-700 User Manual

8 Calibration and adjustment
94 Gendex Dental Systems
207723 rev 7
8.5.2 Ceph Quality check program
(Optional)
NOTICE! Rotate the ear holders into PA view position.
Turn nasion support up out of the way.

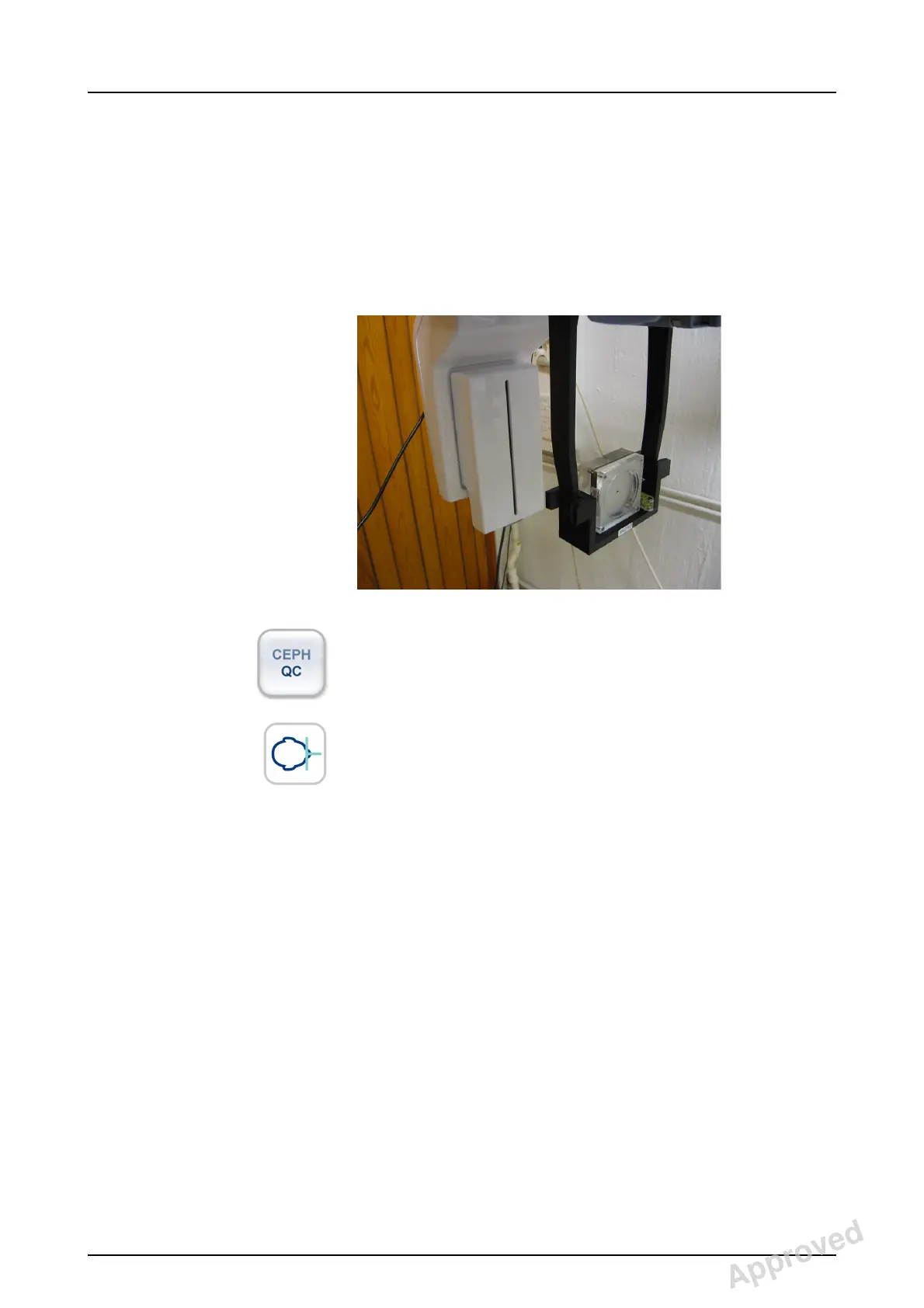

1. Attach the QC phantom to the ceph unit and ensure that
it’s leveled from the spirit level.
2. Select the Ceph QC program.
3. Press Patient In.
4. Take an exposure.
5. Visually evaluate the result using the installed imaging
software.
Approved: Laihonen Tuuli 2016-12-02 16:41
Reviewed: Nieminen Timo Antero 2016-12-02 15:31
Approved
See PDM system to determine the status of this document. Printed out: 2017-03-22 10:54:38
D507729, 7
Copyright © 2016 by PaloDEx Group Oy. All rights reserved.
