8 Calibration and adjustment
86 Gendex Dental Systems
207723 rev 7
8.3.2 Panoramic pixel calibration
NOTICE! The pixel calibration results are sensor specific.
If the x-ray unit is equipped with separate panoramic and
cephalometric sensors, the cephalometric sensor cannot
be used for panoramic imaging without re-calibration (and
vice versa).
NOTICE! Re-do panoramic pixel calibration, if cephalostat
sensor is moved to panoramic side or the sensor is
changed.
1. Remove the double cone calibration tool.
2. Select the program.
3. Press Patient In.

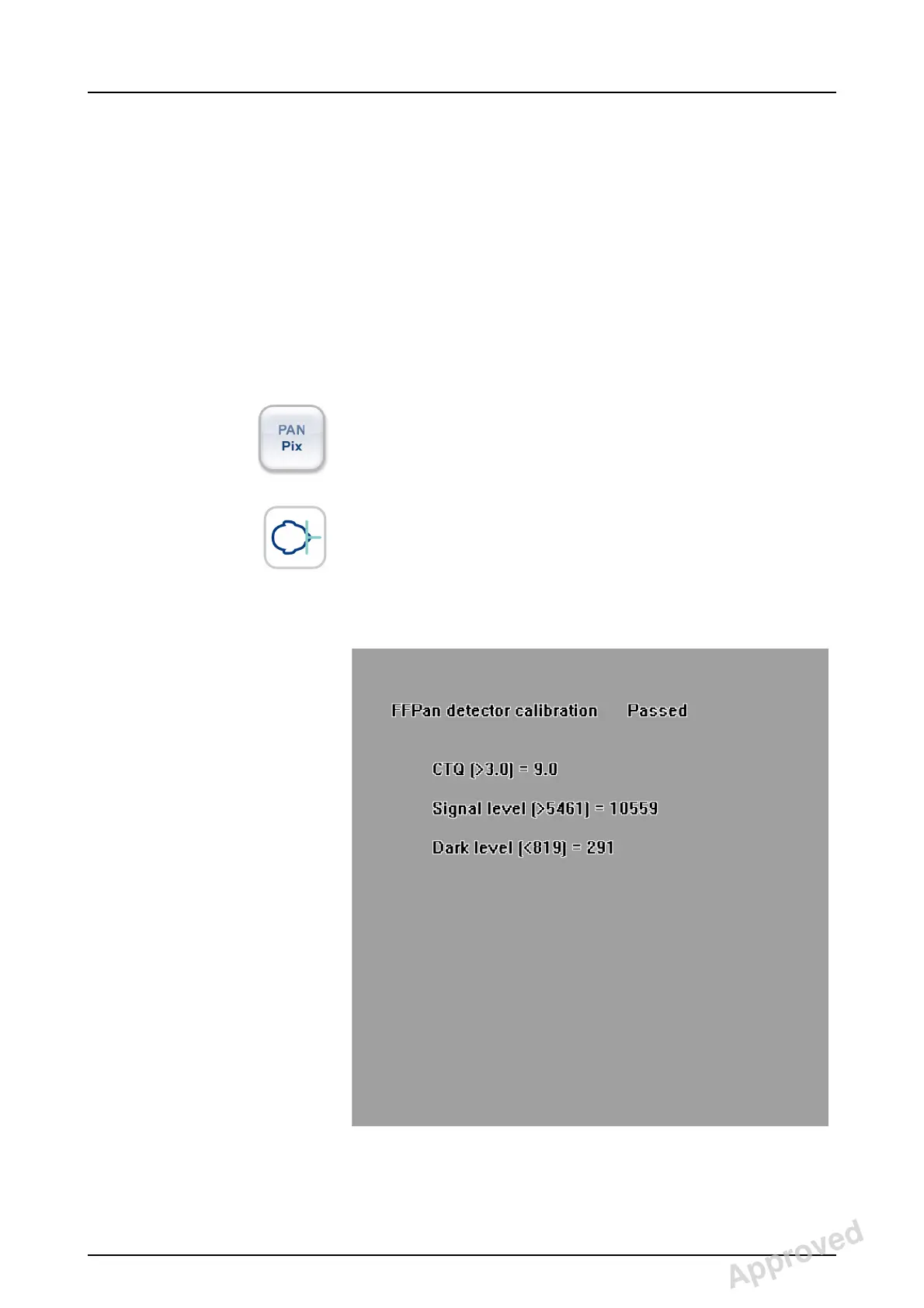

4. Take an exposure. Touch screen display informs when
the calibration is passed.
Approved: Laihonen Tuuli 2016-12-02 16:41
Reviewed: Nieminen Timo Antero 2016-12-02 15:31
Approved
See PDM system to determine the status of this document. Printed out: 2017-03-22 10:54:38
D507729, 7
