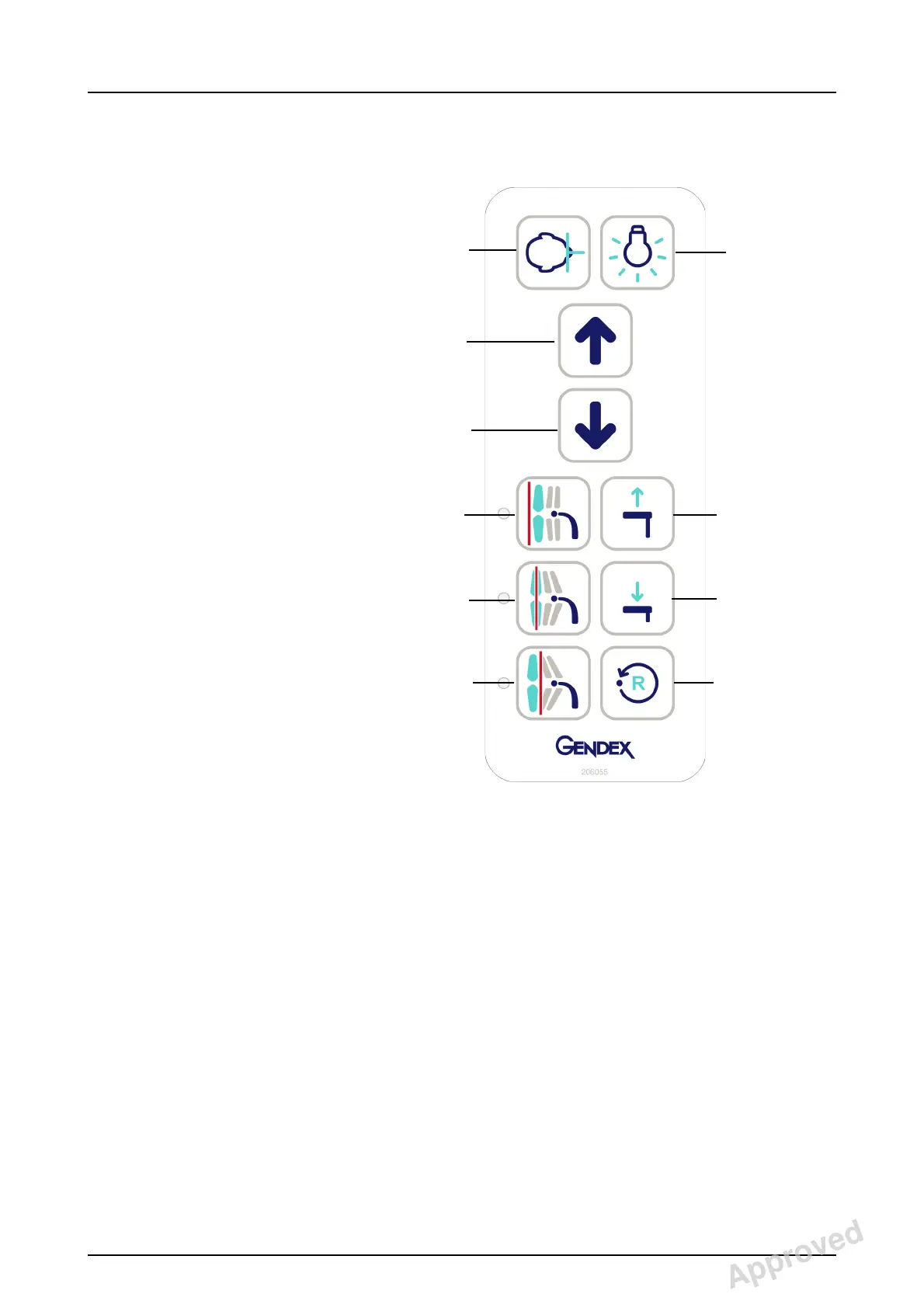

2.3 Control panel
1. Patient In key - moves the Rotating Unit to allow patient
better access when entering the unit.
2. Positioning lasers ON/OFF
3. Carriage UP
4. Carriage DOWN
5. Image Layer Control - Retrusion.
6. Image Layer Control - 'Normal' position; also use to reset
position
7. Image Layer Control - Protrusion
8. Chin support UP
9. Chin support DOWN
10.Reset button
