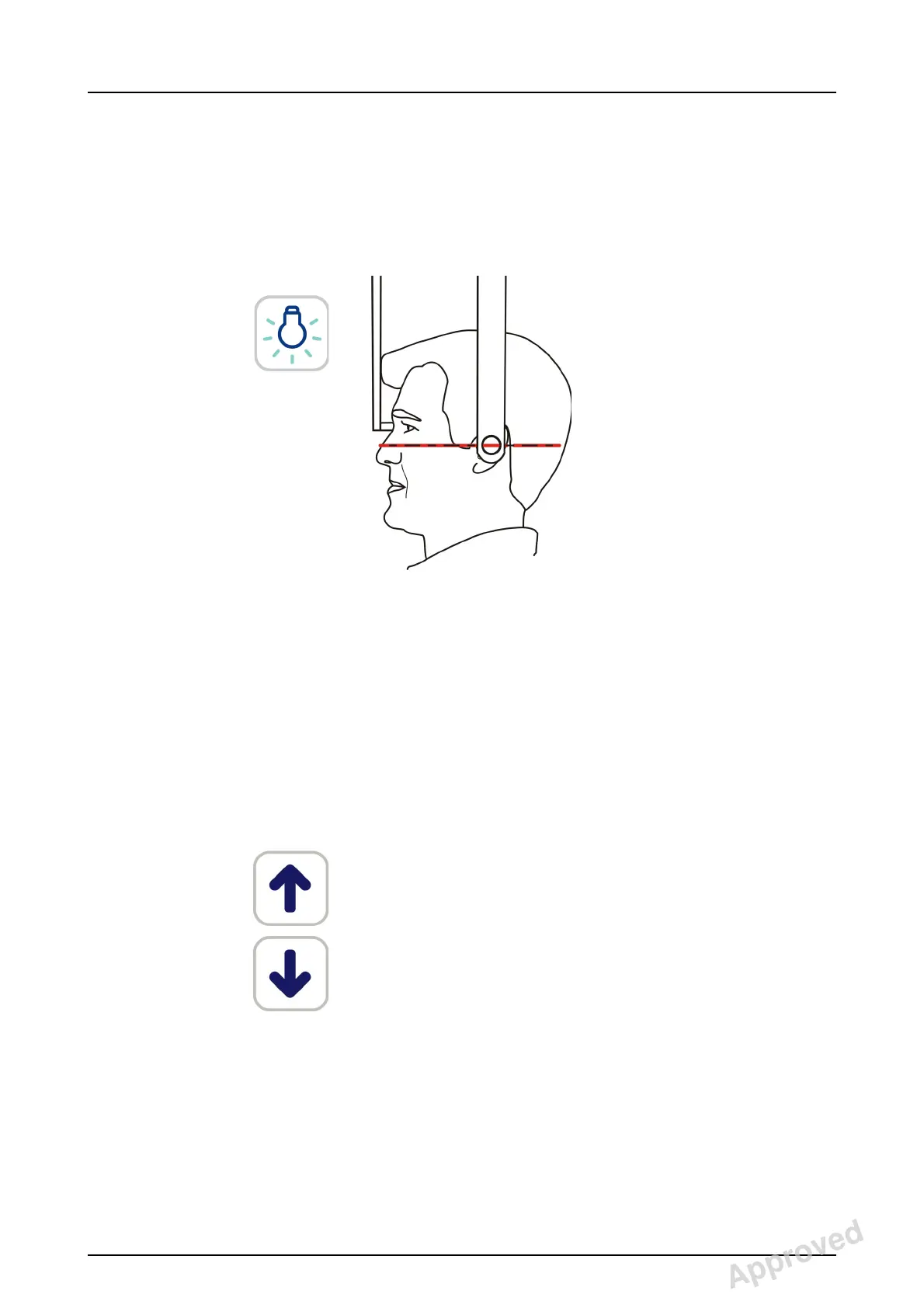

4. Adjust the unit height to get the Frankfort plane laser
passing over the orbitale and porion.
NOTICE! The shown laser line is a horizontal reference
line.
5. Tilt the nasion support down and slide it towards
patient’s nasion.
5.4.2.2 PA-AP projections
1. Unlock the lever and turn the ear rods to the PA projec-
tion position. Lock the position. Tilt the nasion support
aside. Place the hygienic barriers.
NOTICE! Use a new hygienic barrier for every patient.
2. Adjust the unit height.
3. Guide the patient to the unit facing the sensor. Instruct
the patient to stand as straight and tall as possible un-
der the cephalostat head. Slide the ear rods towards
patient’s ears. Tall patients can also sit on a chair.
