5 Using the unit
5.1 Attaching and removing the sensor
NOTICE! The pixel calibration results are sensor specific.
If the x-ray unit is equipped with separate panoramic and
cephalometric sensors, the cephalometric sensor cannot
be used for panoramic imaging without re-calibration (and
vice versa).
Re-do panoramic pixel calibration, if cephalostat sensor is
moved to panoramic side or the sensor is changed.
WARNING!
Handle the sensor with care as instructed in this manual.
The sensor must not be dropped or exposed to impacts. A
shock indicator inside the sensor shows if the sensor has
been exposed to excess impact.
5.1.1 Attaching the sensor
NOTICE! Normally there is no need to remove the sensor.

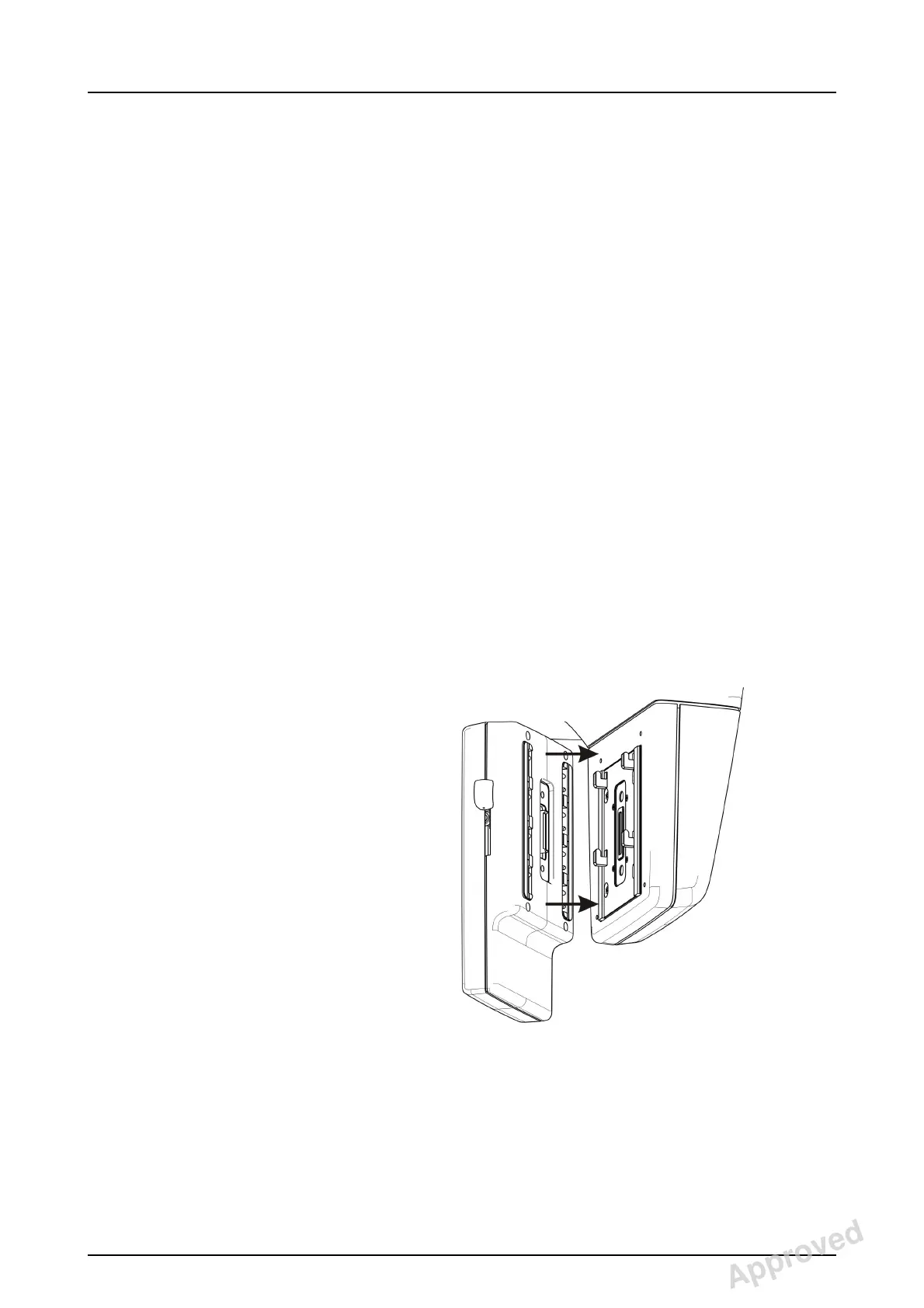

1. Insert the four slots on the rear of the sensor, into the four
hooks in the sensor holder.
