MAINTENANCE AND ADJUSTMENT OF THE UTV
- 91 -
4. Stop the engine and check the oil level again
NOTE:
Wait a few minutes until the oil settles before
checking the oil level.
NOTE:
Never remove the dipsti]ck just after high speed
operation because the heated oil could spurt out.
Wait until the oil cools down before removing the
dipstick.
6. Install:
·console
·passenger seat
·driver seat
Refer to “SEATS” in chapter 5.
CHANGING THE ENGINE OIL
Place the vehicle on a level surface.
1. Start the engine and let it warm up for several
minutes.
2. Stop the engine and place an oil pan under the
engine.
3. Remove:
·driver seat
·passenger seat
·console

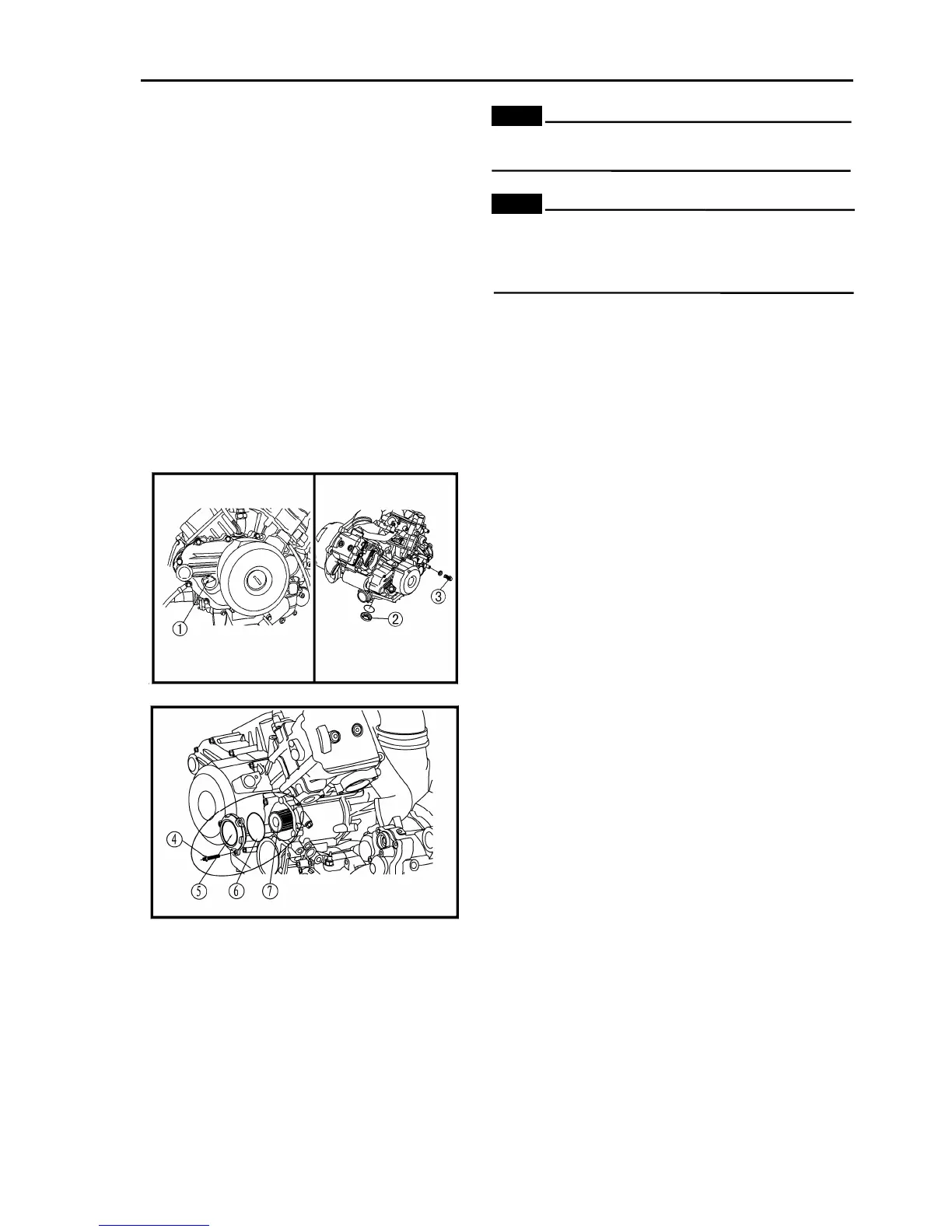

4. Remove:
dismount the following parts step by stem
① oil gauge
⑤ oil-draining blind nut, crankcase
⑥ oil-draining bolt, gear box
⑦ bolt M6 x 20 ,oil filter
⑧ oil filter cover
⑨ sealing ring
⑩ paper core oil filter
5. If you need to change the oil filter core, please
follow the steps below exactly (Generally change
the oil and core after run in-time.)
·Take out the oil gauge, and then dismount ②and
③, drain the oil.
· Dismount bolt ④ with a pipe wrench #8,remove
⑤ and ⑥,then take out ⑦.
· Replacement of the filter element, assembly by
