MAINTENCE AND ADJUSTMENT OF THE UTV
- 112 -
make , sure if the Steering bar is pormal , if not ,
adjust the tension rod left or right within the
specification .

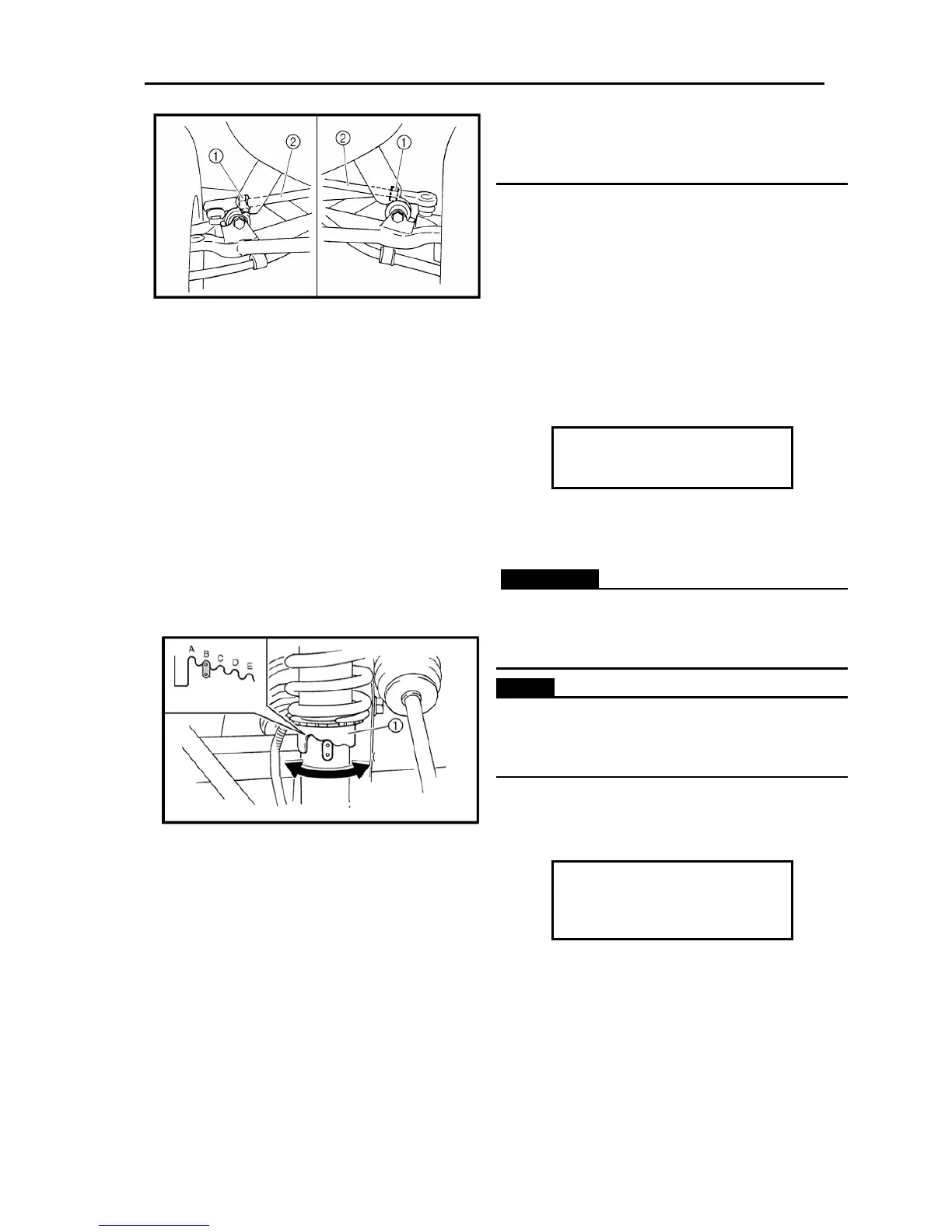

a. Mark both tie-rods ends. This reference point will
be needed during adjustment.
b. Loosen the locknut (tie-rod end) on eachâ‘
tie-rod.
c. The same number of turns should be given to
both the right and left tie-rods until the â‘¡
specified toe-in is obtained. This is to keep the
length of the rods the same.
d. Tighten the rod end locknut on each tie-rod.
Locknut (rod end)
40 Nm (4.0 m · kg, 29 ft · lb)
ADJUSTING THE FRONT AND REAR SHOCK
ABSORBERS (Option 1)
WARNING
:
Always adjust both shock absorber spring
preload to the same setting. Uneven adjustment
can cause poor handling and loss of stability.
NOTE:
The spring preload of the shock absorbers can
be adjusted to suit the operator’s preference,
weight, and the operating conditions.
1. Adjust:
• spring preload Turn the adjuster to increase â‘
or decrease the spring preload.
Standard position: B
Minimum (Soft) position: A
Maximum (Hard) position: E
.
