ENGINE

- 131 -

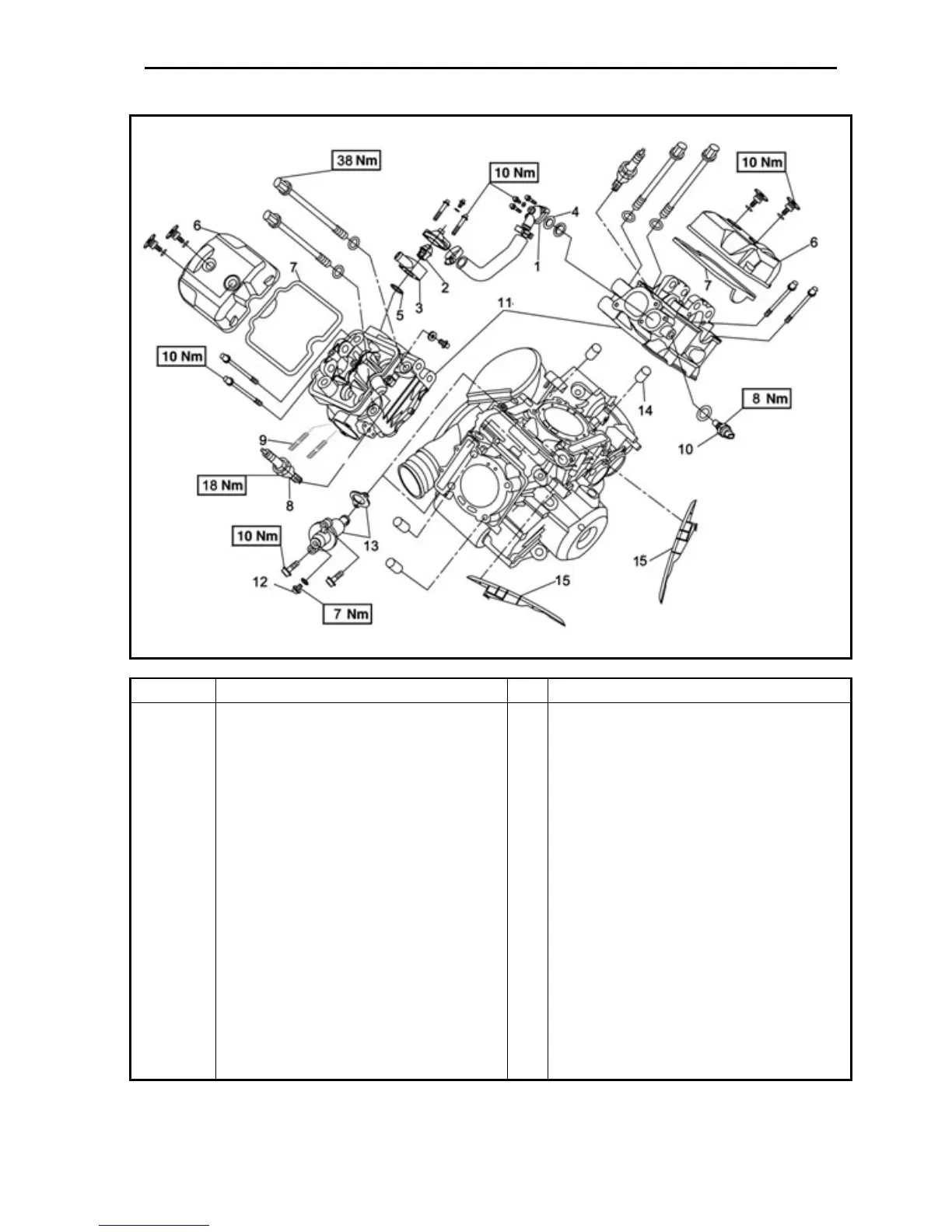

CYLINDER HEAD AND CYLINDER HEAD COVER

No. Part Name Qty Remarks

Removing the cylinder head and

cylinder head

Remove the parts in the order listed.

1 Thermostat cover 2

2 Thermostat 1

3 Cylinder water outlet connector 1

4 Washer 1

5 O-ring 2

6 Cylinder head cover 2

7 Cylinder cover pad 2

8 Spark plug 2

9 Stud Bolt M8×45 (stainless steel ) 4

10 Temperature sensor 1

11 Cylinder head 2

12 Timing chain tensioner cap bolt 2
