ENGINE

- 159 -

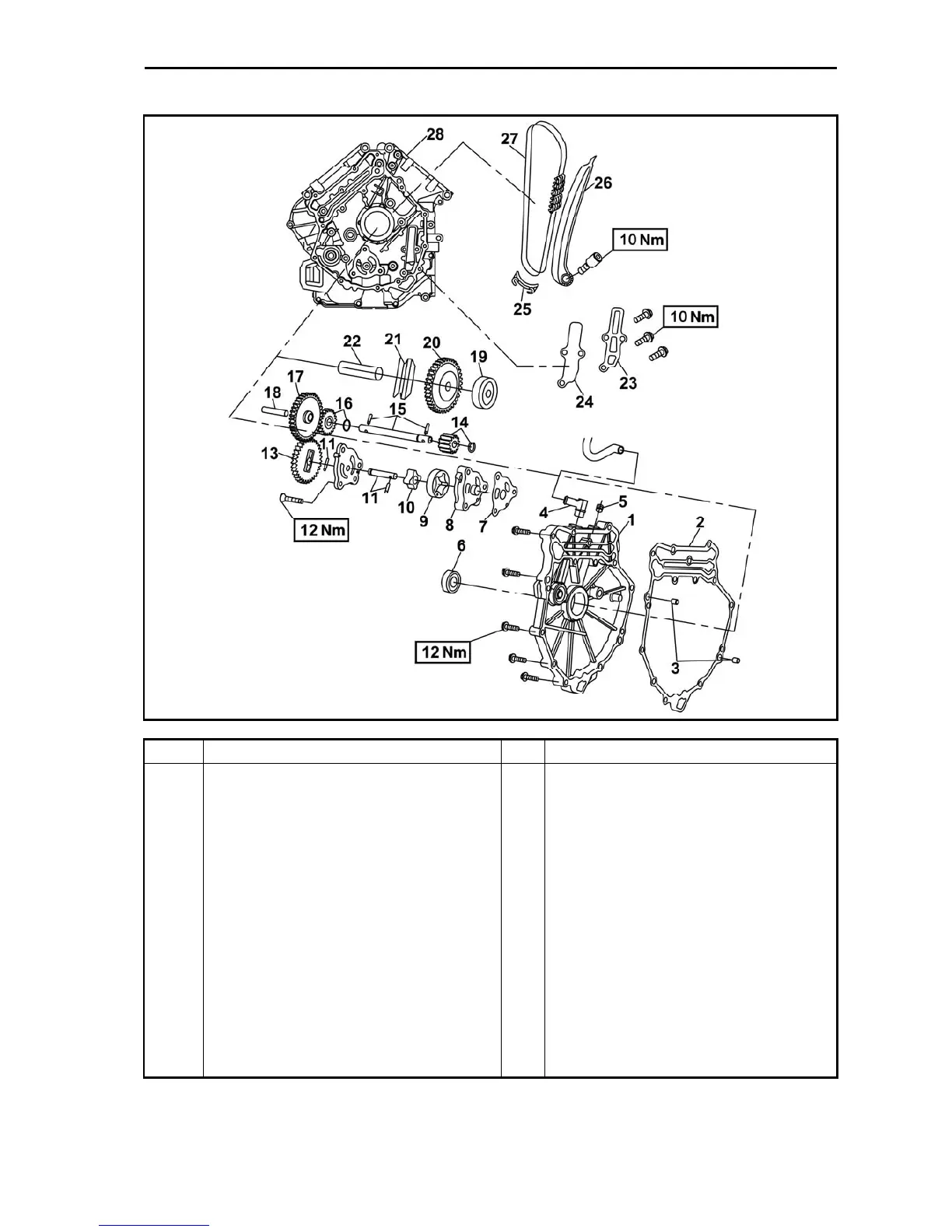

CRANKCASE COVER AND OIL PUMP

No. Part Name Qty Remarks

Removing the crankcase cover and oil

pump

Remove the parts in the order listed.

Crankcase separation

1 Crankshaft cover 1

2 Gasket 1

3 Dowel pin 2

4 Crankcase exhaust pipe 1

5 Crankcase block 1

6 Oil seal 1

7 Oil pump gasket 1

8 Oil pump 1

9 Outer rotor 1

10 Innter rotor 1
