MAINTENCE AND ADJUSTMENT OF THE UTV
- 109 -
5. Install:
·drain plug
NOTE:
Check the gasket (drain plug). If it is damaged,
replace it with new one.
6. Fill:
·differential gear case
Periodic oil change
0.32 L (0.28 Imp qt, 0.34 US qt)
Total amount
0.1 L (0.085 lmp qt, 0.105 US qt)
NOTE:
If gear oil is filled to the brim of the oil filler hole,
oil may start leaking from the differential gear
case breather hose. Therefore, check the
quantity of the oil, not its level.
WARNING
:
Take care not to allow foreign material to enter
the differential gear case.
7. Install:
• oil filler plug
23 Nm (2.3 m · kg, 17 ft · lb)

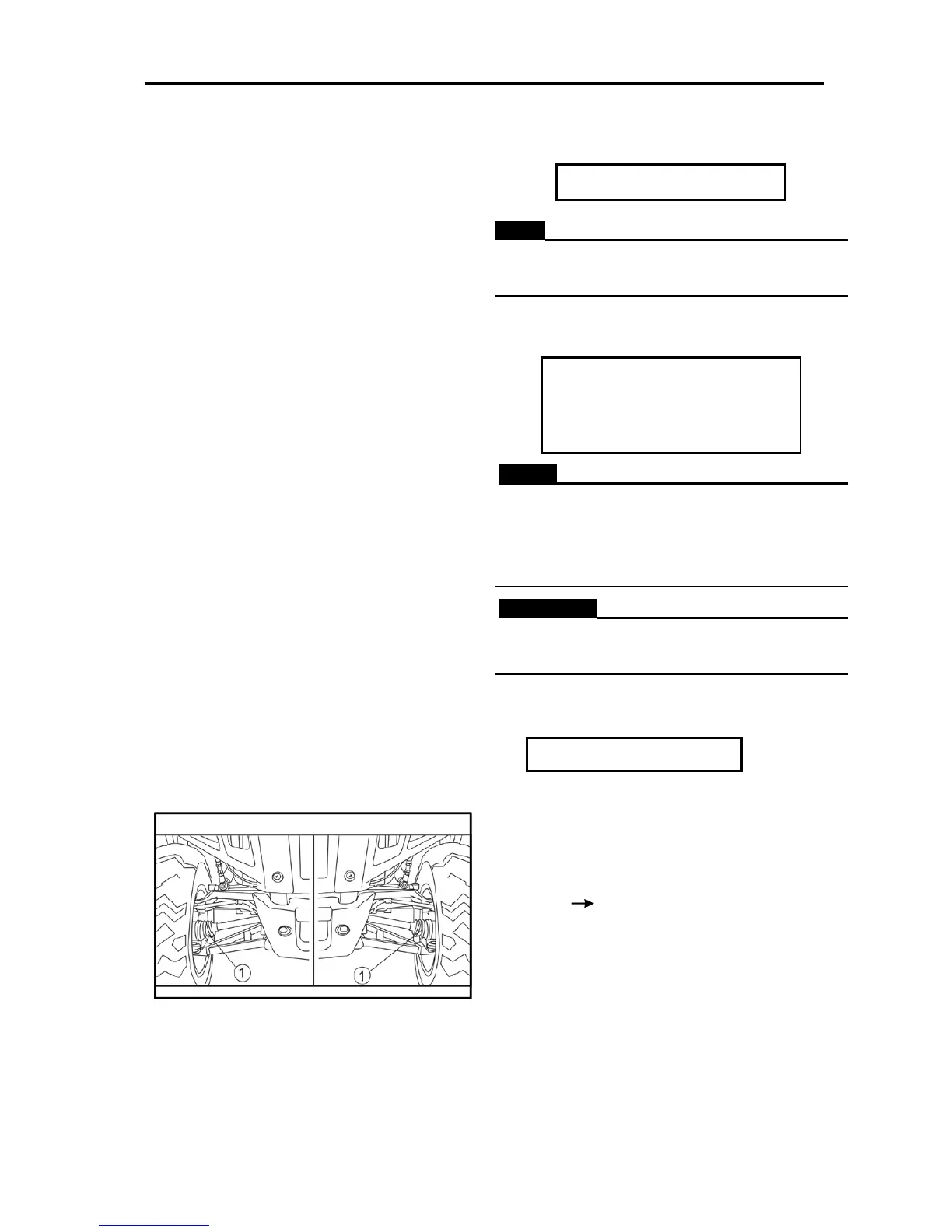

CHECKING THE CONSTANT VELOCITY JOINT
DUST BOOTS
1. Check:
• dust boots ①
Damage
Replace.
Refer to “FRONT CONSTANT VELOCITY
JOINTS,” in chapter 5.
□
F
Front
10 Nm (1.0 m · kg, 7.2 ft · lb)
.
