GENERAL INFORMATION
- 28 -
press:
a. Always support the inner and outer bearing races with a suitable size wooden or aluminum
spacer (Figure 44). If only the outer race is supported, pressure applie against the balls
and/or the inner race will damage them.
b. Always make sure the press arm (Figure
44) aligns with the center of the shaft. If the
arm is not centered, it may damage the
bearing and/or shaft.
c. The moment the shaft is free of the bearing.
It drops to the floor. Secure or hold the
shaft to prevent it from falling.
Installation
1. When installing a bearing in a housing, apply
pressure to the outer bearing race (Figure 45).

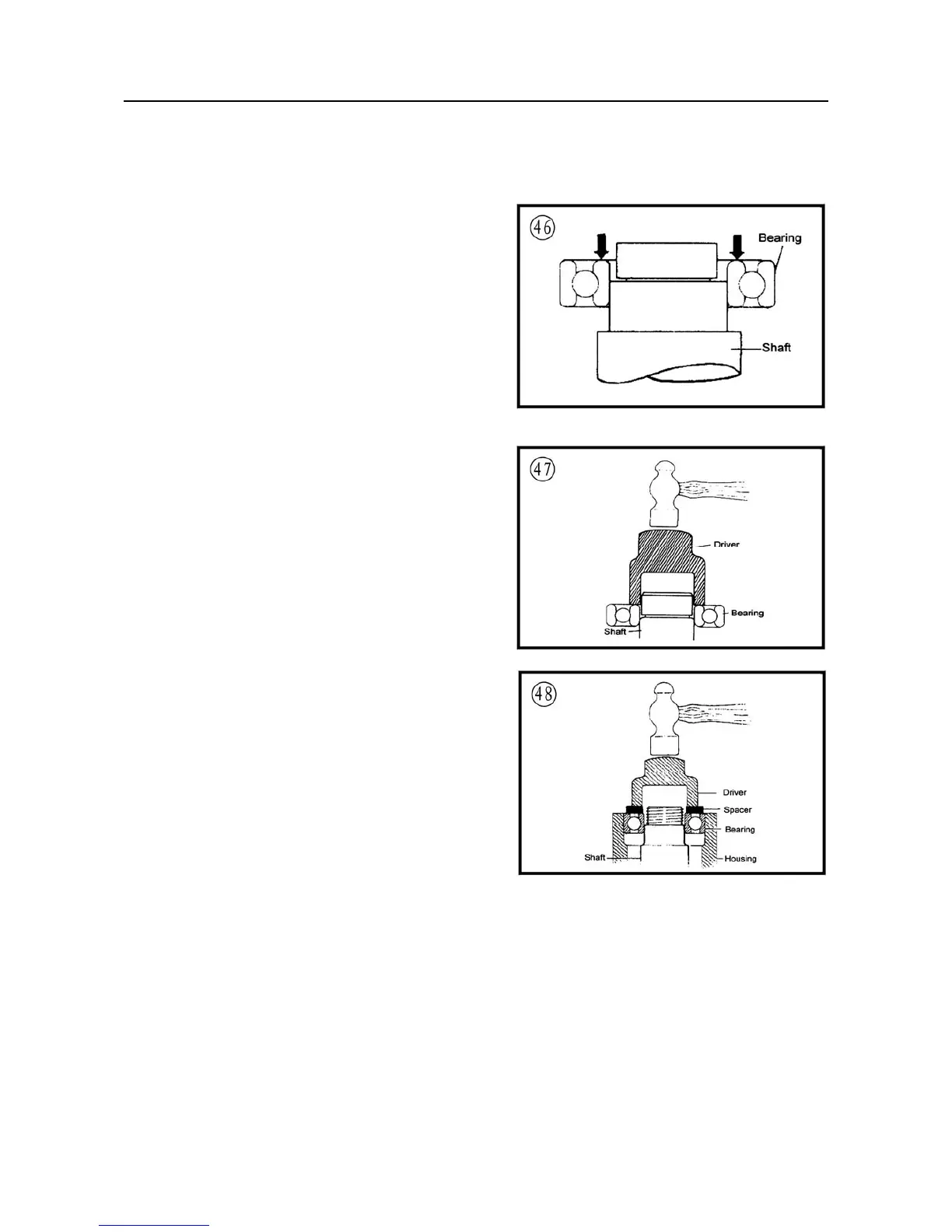

When installing a bearing on a shaft, apply
pressure to the inner bearing race (Figure 46).
2. When installing a bearing as described in Step 1,
some type of driver is required. Never strike the
bearing directly with a hammer or it will damage
the bearing. When installing a bearing, use a
piece of pipe or a driver with a diameter that
matches the bearing inner race. Figure 47 Shows
the correct way to use a driver and hammer to
install a bearing.
3. Step 1 describes how to install a bearing in a
case half or over a shaft However, when installing
a bearing over a shaft and into the housing at the
same time, a tight fit is required for both outer and
inner bearing races. In this situation, install a
spacer underneath the driver tool so that pressure
is applied evenly across both races. See Figure
48. If the outer race is not supported as shown,
the balls will push against the outer bearing race and damage it
Interference fit
1. Follow this procedure when installing a bearing over a shaft. When a tight fit is required, the
bearing inside diameter is smaller than the shaft. In this case. Driving the bearing on the shaft
using normal methods may cause bearing damage. Instead, heat the bearing before installation.
Note the following:
a. Secure the shaft so it is ready for bearing installation.
b. Clean all residues from the bearing surface of the shaft. Remove burrs with a file or
sandpaper.
c. Fill a suitable pot or beaker with clean mineral oil. Place a thermometer rated above
120℃(248°F) in the oil. Support the thermometer so it does not rest on the bottom or side
