CHASSIS

- 195-

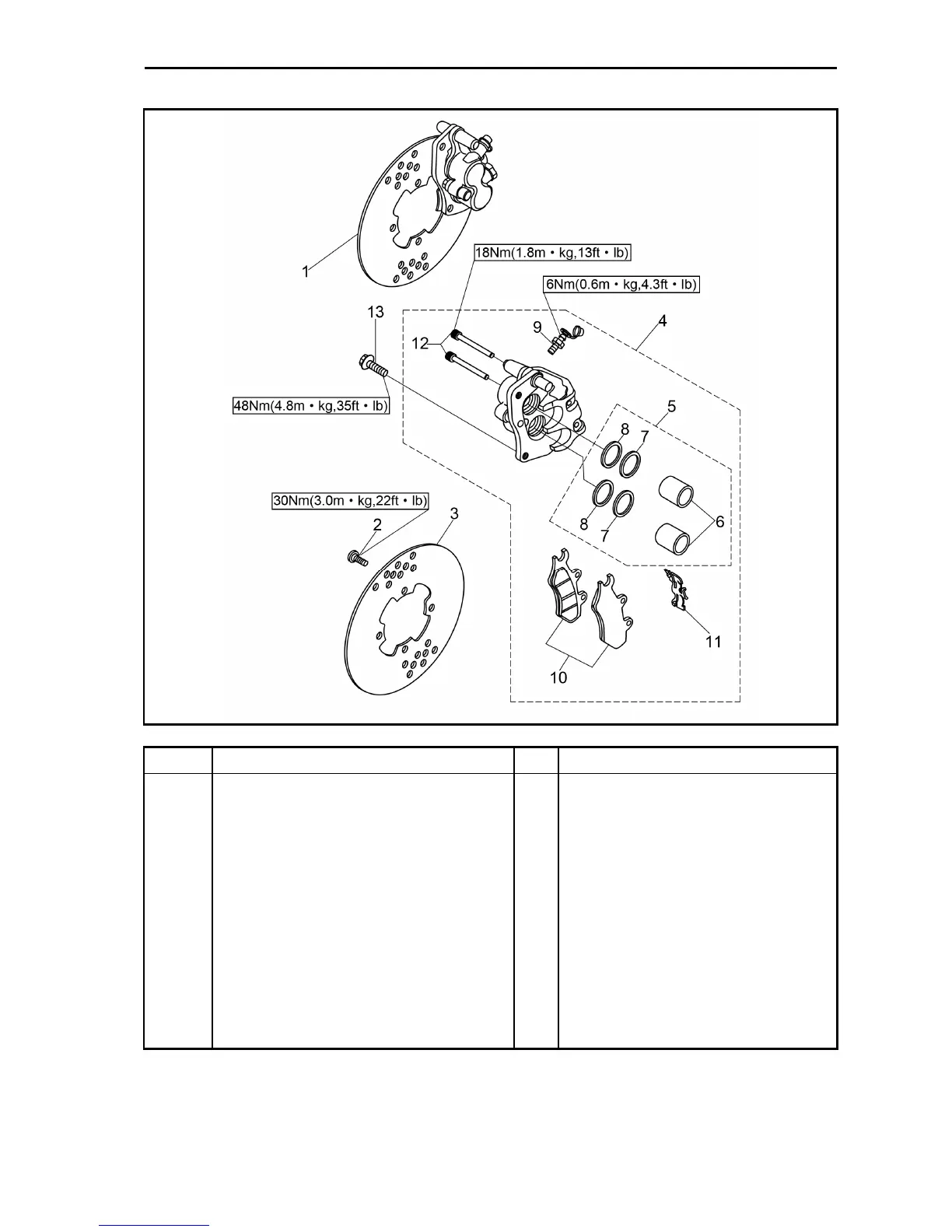

FRONT BRAKE CALIPER

No. Part Name

Qty Remarks

Removing front brake caliper

Front brake disc 2

Hexagon step bolt M8×15-Φ15×5 8

3 Front brake disc 2

4 Front brake caliper 2

5 Brake caliper piston assembly 2

6 Brake caliper piston 4

7 Dust seal 4

8 Caliper piston seal 4

9 Bleed screw 2

10 Brake pad 2
