MAINTENCE AND ADJUSTMENT OF THE UTV
- 100 -

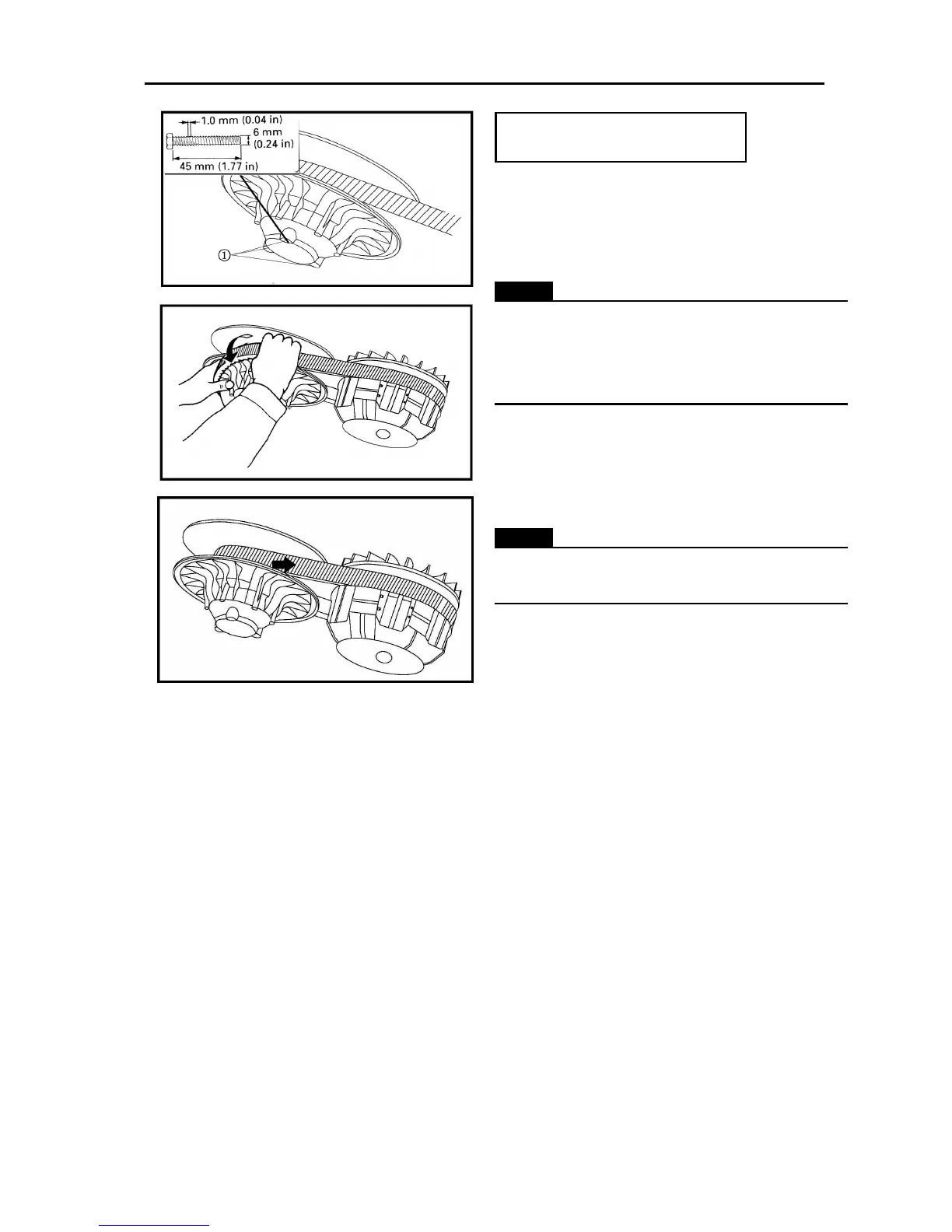

·Replace V-belt:
Install the bolts â‘ into the secondary fixed
sheave hold.
NOTE:
Tightening the bolts â‘ will push the secondary
sliding sheave away, causing the gap between
the secondary fixed and sliding sheaves to
widen.
·Remove the V-belt ①from the primary sheave
and secondary sheave.
·Install the V-belt.
NOTE:
Install the V-belt so that its arrow faces the
direction shown in the illustration.
· Remove the bolts.
2. Install:
· drive belt cover
· driver seat
CLEANING THE SPARK ARRESTER
1. Clean:
Tap the tailpipe lightly with a soft-face hammer or
suitable tool, then use a wire brush to remove any
carbon deposits from the spark arrester portion of
the tailpipe and the inner contact surfaces of the
muffler
2. Spark arrester
V-belt width: 31.2 mm
<Limit:> 26 mm
.
