ENGINE

- 144 -

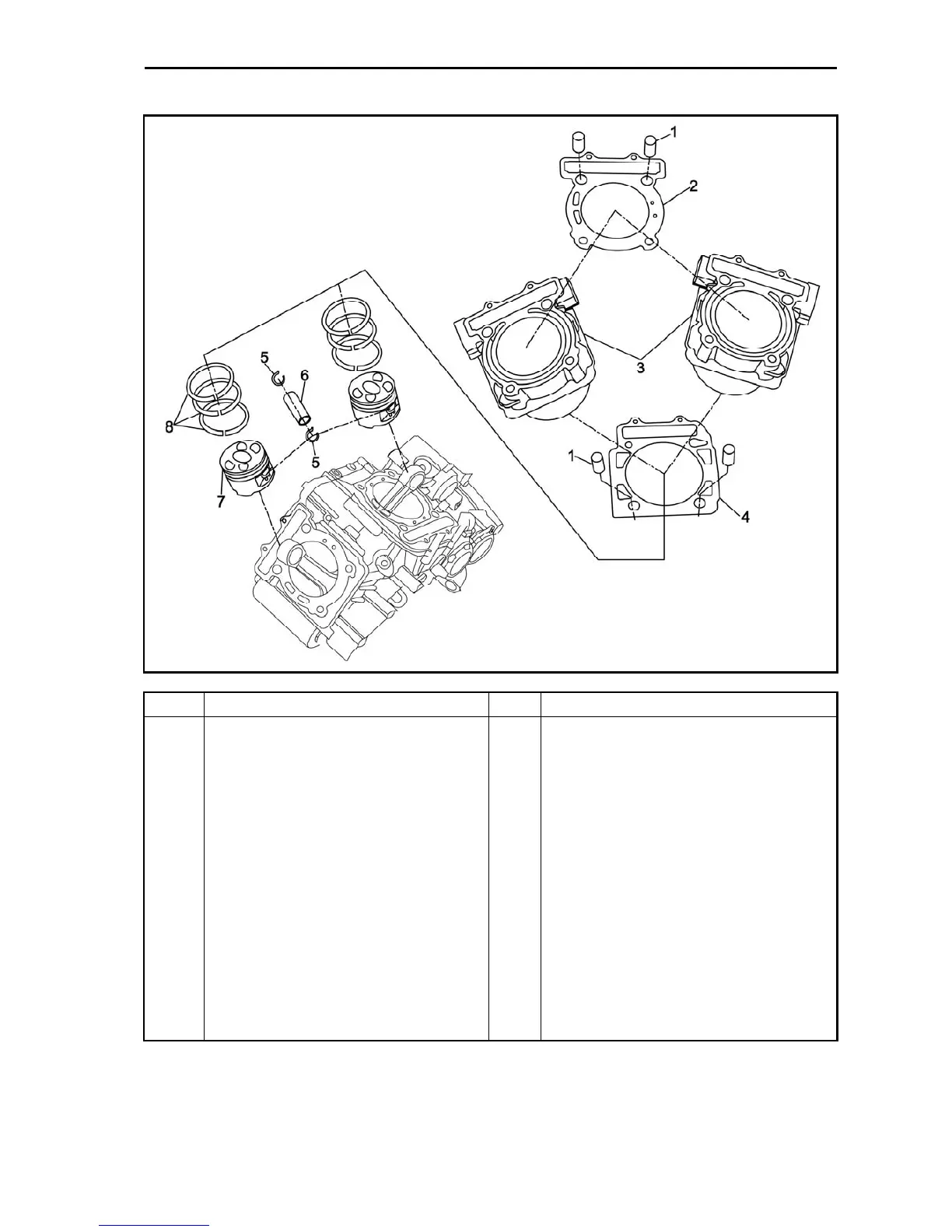

CYLINDER AND PISTON

No. Part Name Qty Remarks

Removing the cylinder and piston Remove the parts in the order listed.

Water pump outlet hose

Cylinder head

1 Dowel pin 16

2 Cylinder head gasket 2

3 Cylinder 2

4 Cylinder gasket 2

5 Piston pin clip 4

6 Piston pin 2

7 Piston 2

8 Piston ring set 2

For installation, reverse the removal

procedure.
