CHASSIS

- 232-

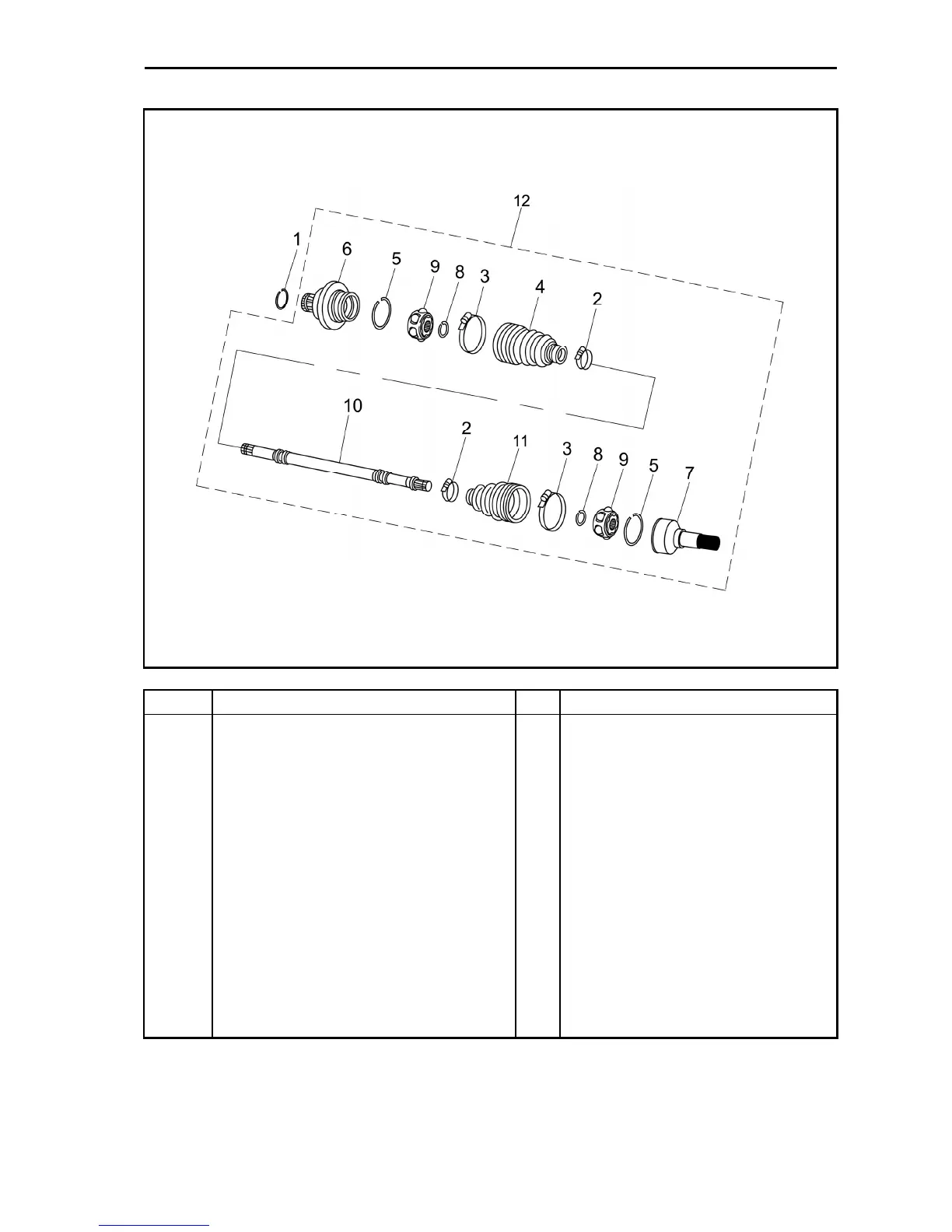

C.V Axle, Rear Axle

No. Part Name Qty Remarks

Removing the rear bridge(L.&R.)

1 Circlip 2

Adjustable Clamp 4

Hoop A,dust p shed 4

Inner rubber dust-proof(c-1513), front axle

5 Circlip 4

6 Double off-set joint assembly 2

7 Double off-set joint assembly 2

8 Circlip 4

9 Ball bearing 4

10 Joint shaft assembly 2

Outer rubber dust-proof(C-1605), front axle

C.V Axle, rear axle 2
