ENGINE
- 136 -

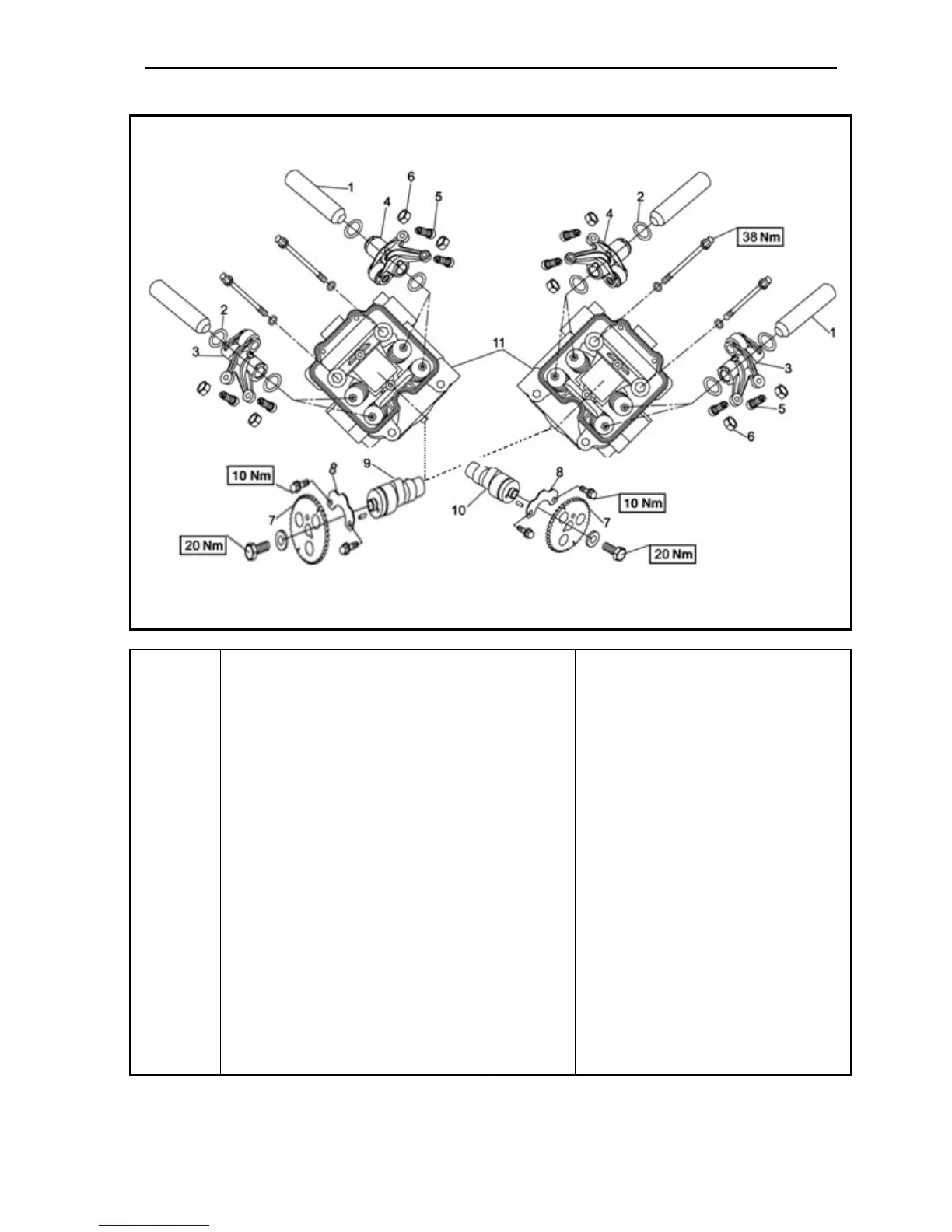

ROCKER ARMS AND CAMSHAFT
No. Part Name Qty Remarks
Removing the rocker arms and Remove the parts in the order listed.
camshaft
Cylinder head cover
1 Rocker arm shaft 4
2 Wave washer 8
3 Rocker arm (exhaust) 2
4 Rocker arm (intake) 2
5 Valve adjuster 8
6 Locknut 8
7 Camshaft sprocket 2
8 Camshaft station plate 2
9 Camshaft â…¡ 1
10 Camshaftâ…  1
11 Cylinder head 2
For installation, reverse the removal
procedure.
