7.12
Viewing controller operation and status in Control
Builder
The Monitoring tab in Control Builder can be used to view the operation and status of
any of the various control components represented as icons in the monitoring tree. The
hierarchical tree in
Figure 7 shows a number of C300 Redundant Controller Pairs and their associated CEE
and IOLINK blocks. Right clicking on any of the icons and selecting Module
Properties… opens the configuration form for that object.

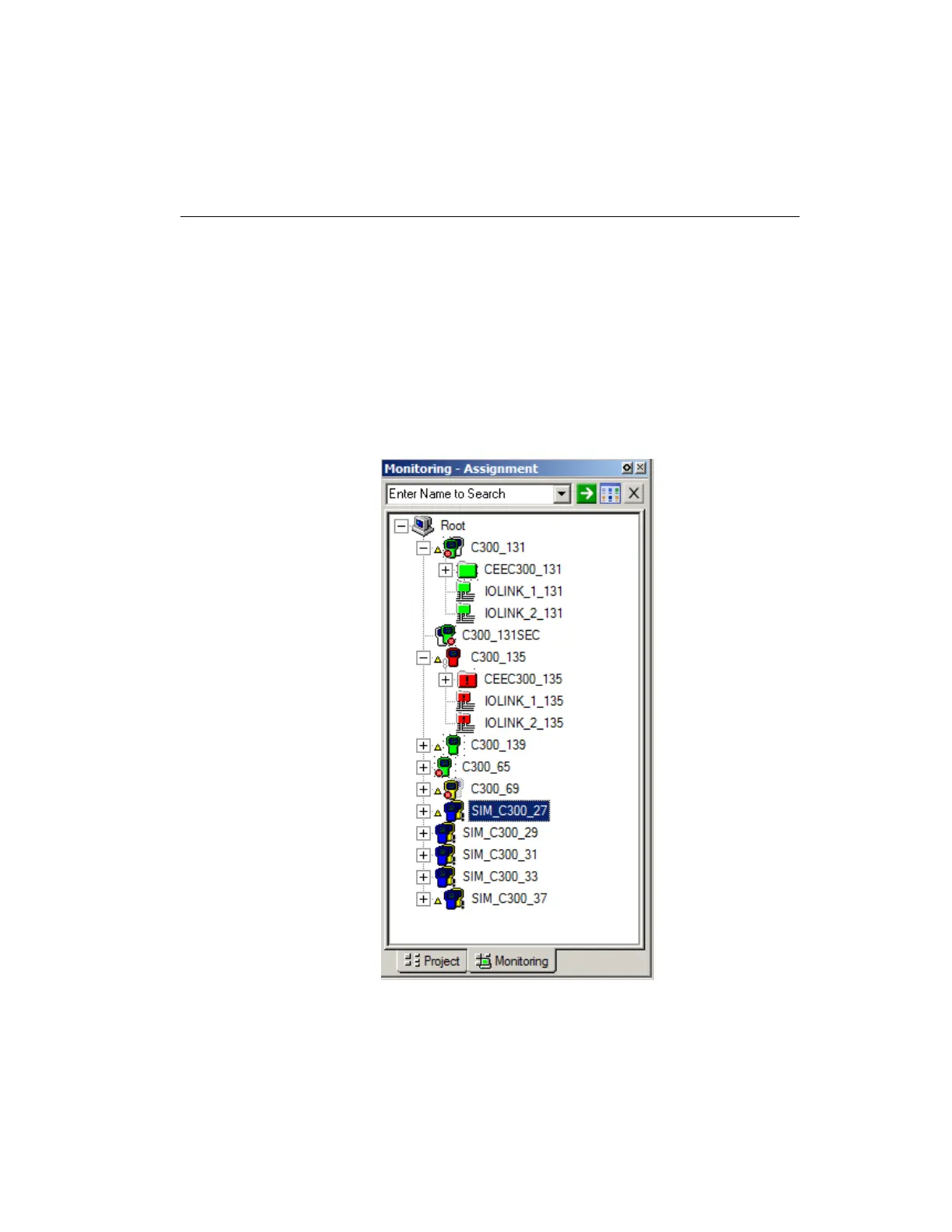

Figure 7 Control Builder Monitoring tab
