3. C300 Controller Installation and Upgrades
3.2. C300 Controller installation
R500
April 2017
Series 8 C300 Controller User's Guide
Honeywell
37
Step
Action

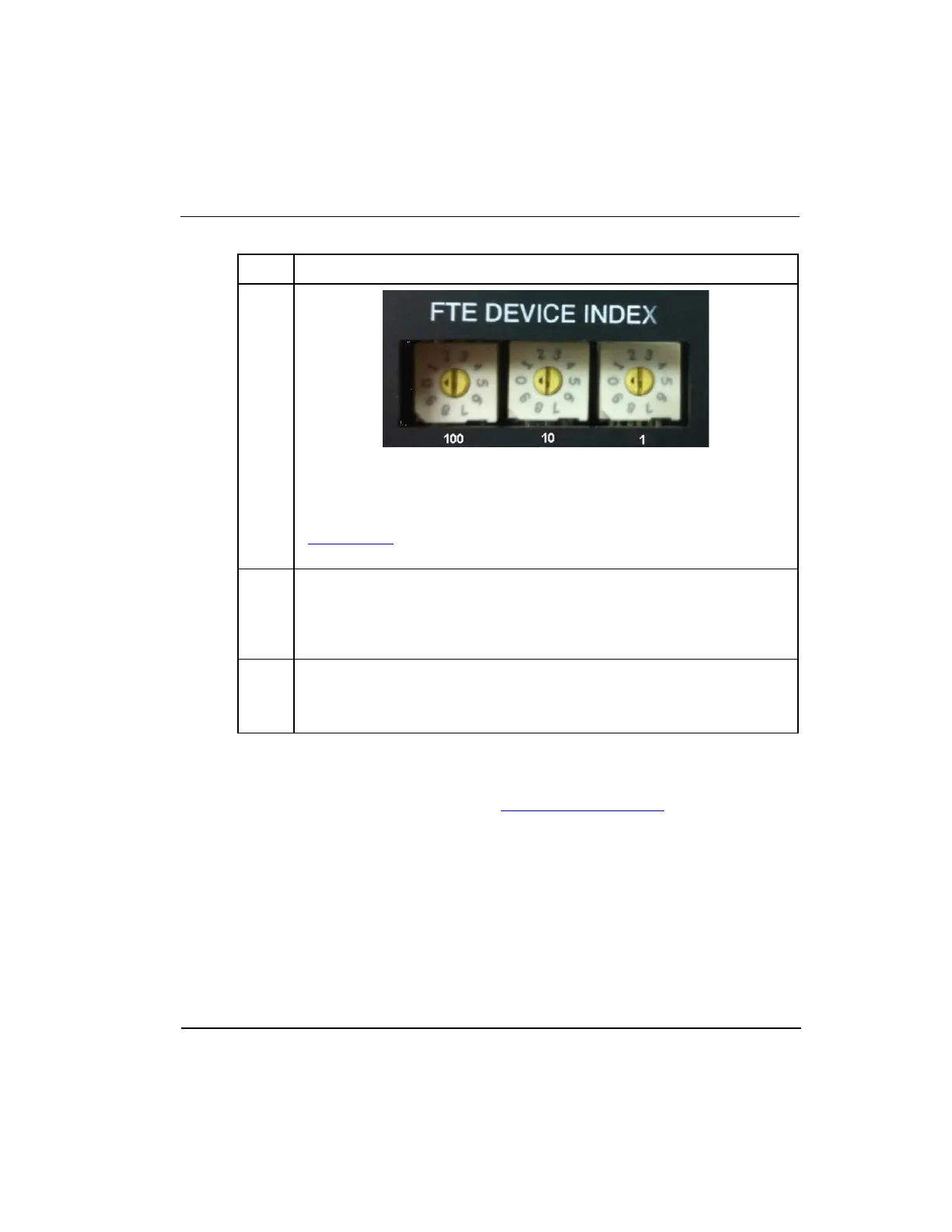

The Device Index of all non-redundant and primary C300 Controllers must be
set to an odd number address.
Note: The FTE DEVICE INDEX setting on the switches should match the
Device Index number entered on the Controller block's configuration form
Main tab.
11
Insert the controller module onto IOTA board making sure that the controller
circuit board mates properly with the IOTA board connector.
Secure the controller module to the IOTA board with two screws located at
each side of the plastic cover.
12
If the controller is to be redundant -
In Control Builder, select the Main tab of the primary controller's configuration
form and be sure to check the 'Module is Redundant' check box.
C300 Secondary Controller Installation
Creating a C300 Controller redundant pair is as simple as installing a second controller in
the control hardware cabinet. Refer to the C300 Controller assembly to review the
location of the cable connections.
Prerequisites
Before you install the C300 Controller you should have:
 A control cabinet installed with panel for mounting Series 8 control hardware.
 A Series 8 power supply and optional battery backup hardware installed in the
cabinet.

Honeywell C300 Specifications

General

Brand	Honeywell
Model	C300
Category	Controller
Language	English
