3. Lift the airflow guide straight up and out of the server (2)

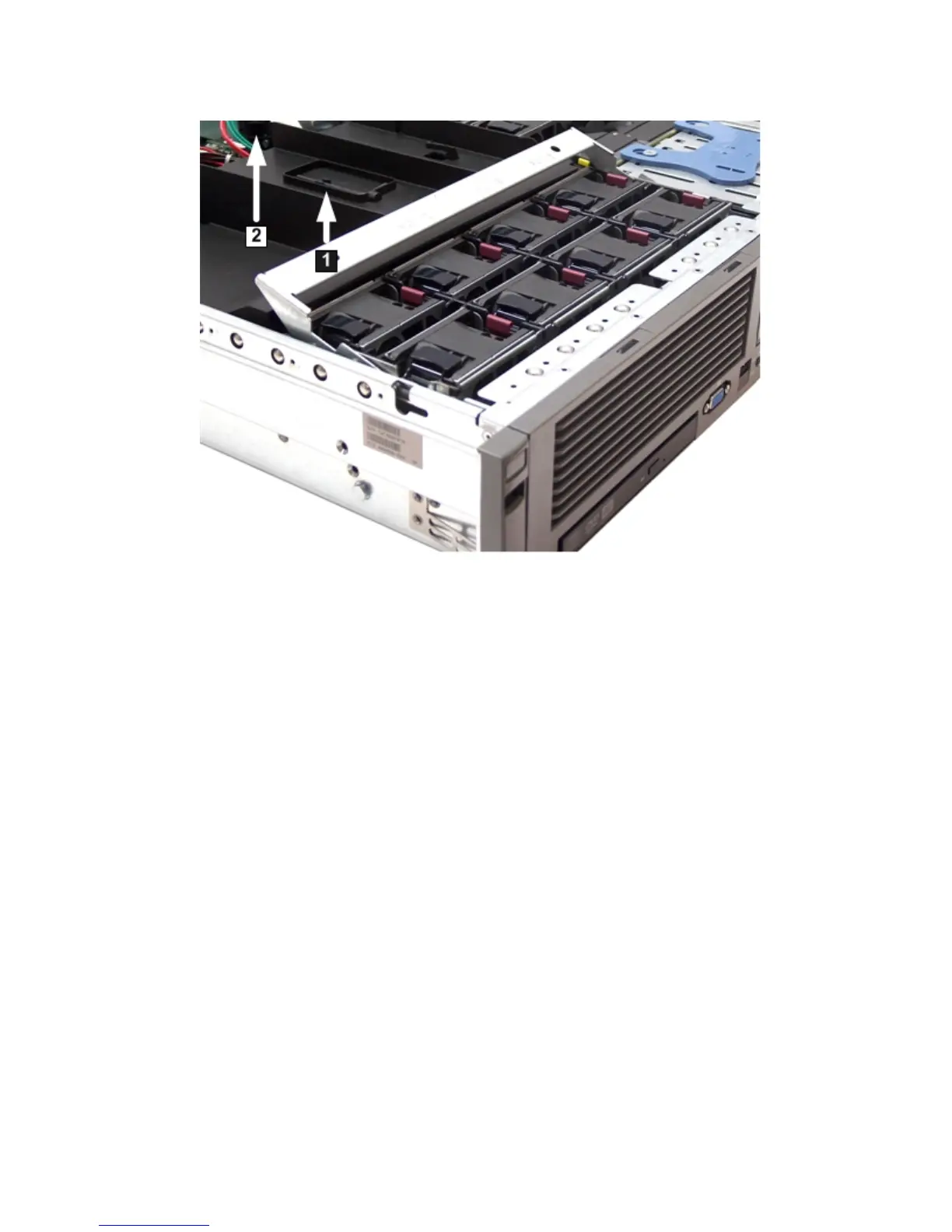

Figure 6-5 Fan Carrier Handle
Replacing the Airflow Guide
To replace the airflow guide, follow these steps:
1. Ensure the fan carrier handle is raised enough to replace the airflow guide.
2. Place the airflow guide on the edge of the fan carrier and push it down into place on the
processor cage (1). See Figure 6-6 (page 148).
3. Push the fan carrier handle down until it is flush against the airflow guide (2).
Removing and Replacing the Airflow Guide 147
