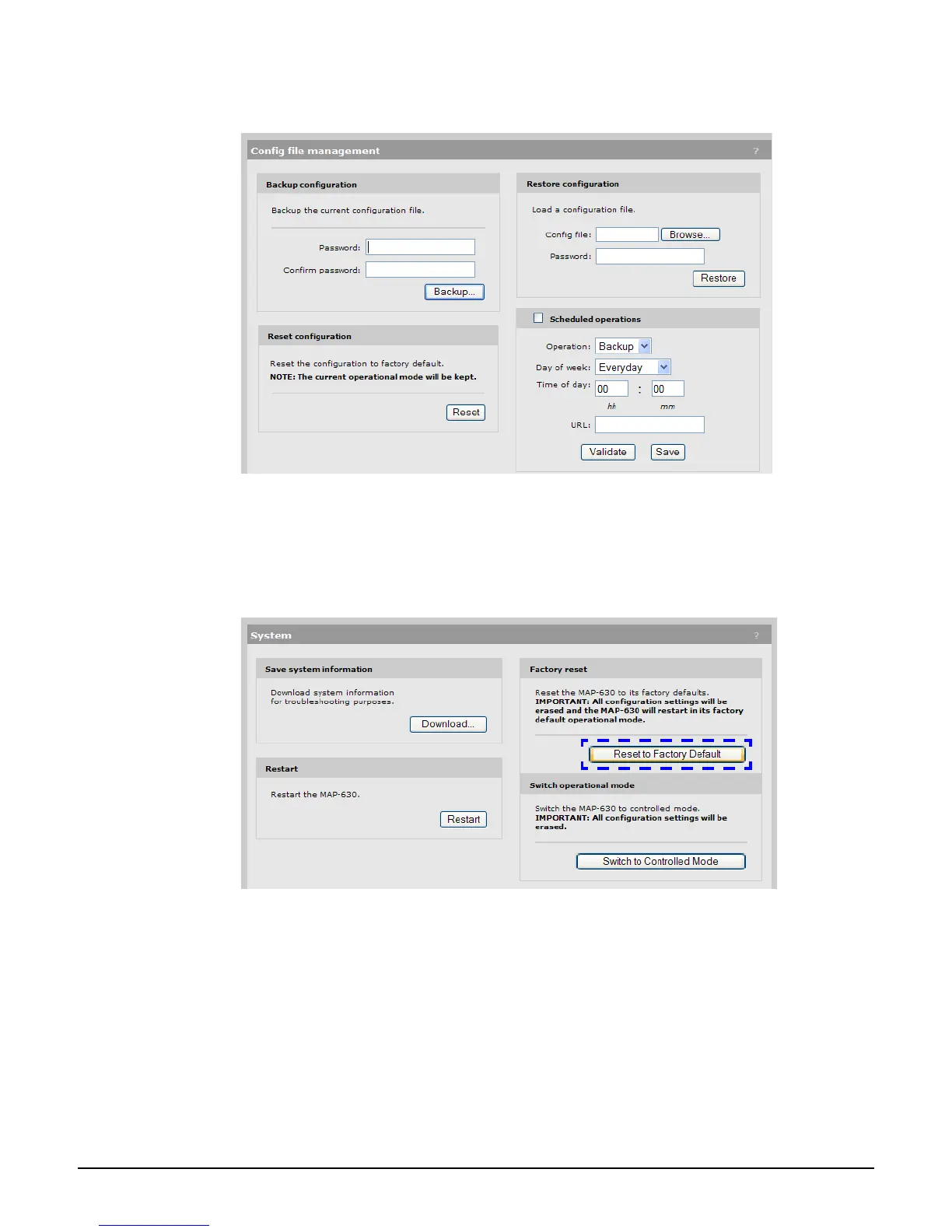

Resetting to factory defaults
Resetting to
factory defaults
D-3
2.
Under
Reset configuration
, selec
t
Reset
.
T
o
reset the AP to factory defaults and
FORCE it back into its default controlled mode
,
follow this procedure:
1.
Select
Maintenance > System
.
2.
Under
Factory reset
, select
Reset to Factory Default
.
204
206
