7.2.6.7 Connecting PSU Cables
7.2.6.7.1 Connecting the AC PSU Cable
Before connecting power cables, ensure that the server has been correctly
installed. For details, see 7.2.5 Installing a 2288X V5.
● Use dedicated power cables to ensure equipment and personal safety.
● Use power cables only for dedicated servers. Do not use them for other devices.
● Connect the power cables of the active and standby PSUs to
dierent power
distribution units (PDUs) to ensure reliable system operation.
● Ground the equipment before powering it on.
Procedure
Step 1 Take the spare part out of its ESD bag.
Step 2 Connect one end of the power cable to the power socket on the PSU of the server.

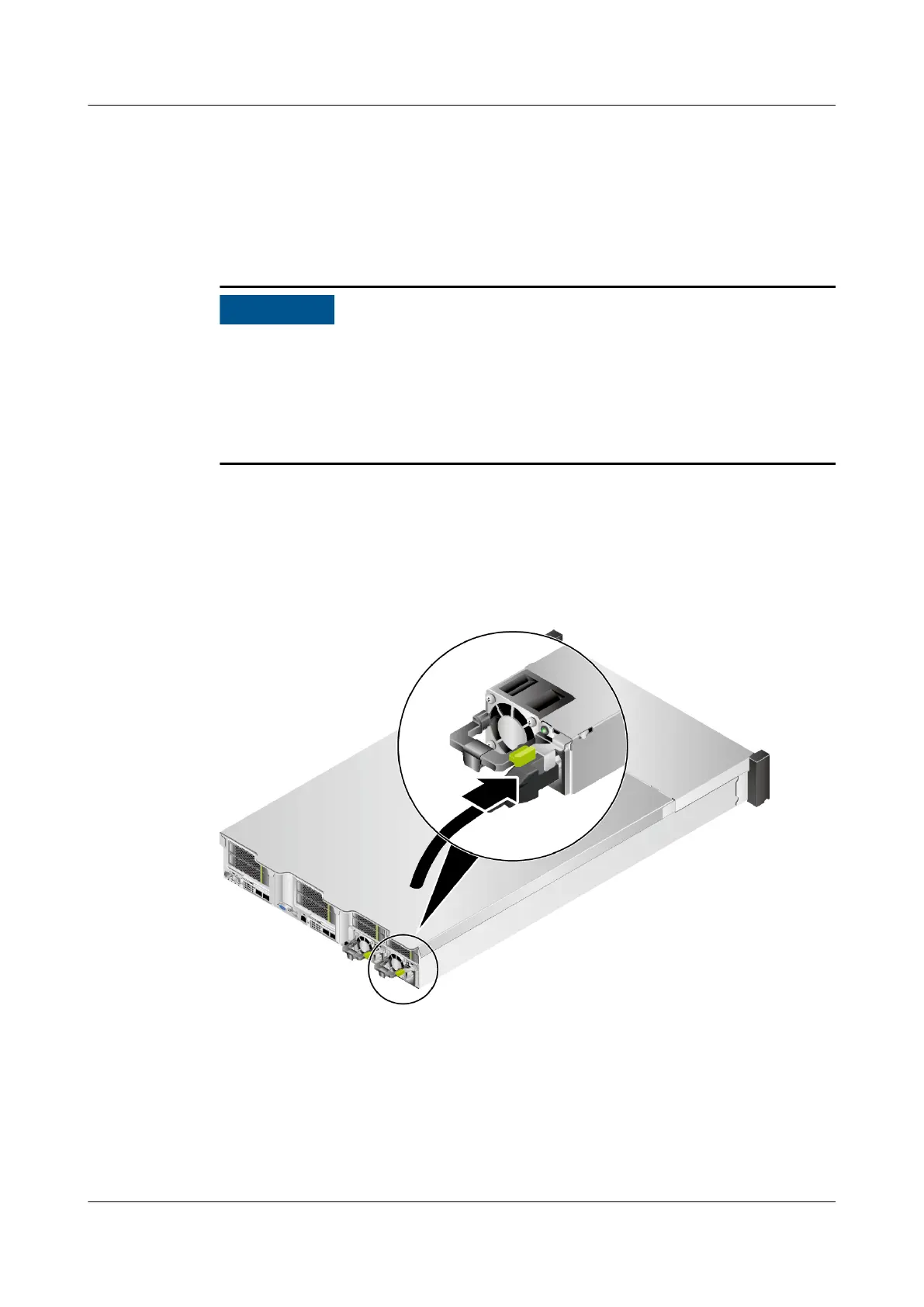

Figure 7-22 Connecting the cable
Step 3 Secure the power cable using a velcro strap.
FusionServer Pro 2288X V5 Server
User Guide 7 Installation and Conguration
