Silkscreen Indicator/
Button
Description
LOM port
connection
status
indicator
Each indicator shows the connection status of
an Ethernet LOM port.
● O: The network port is not in use or has
failed.
● Steady green: The network port is properly
connected.
NOTE
● The indicators correspond to the two 10GE
network ports integrated on the mainboard.
● The LOM has a standby power supply and will
not be powered o even if the service system is
powered
o. As long as the LOM ports are
properly connected to other working network
devices, the network ports will remain connected
and the indicators are on.
2.1.3 Ports
Port Positions
● 8 x 2.5" drive conguration

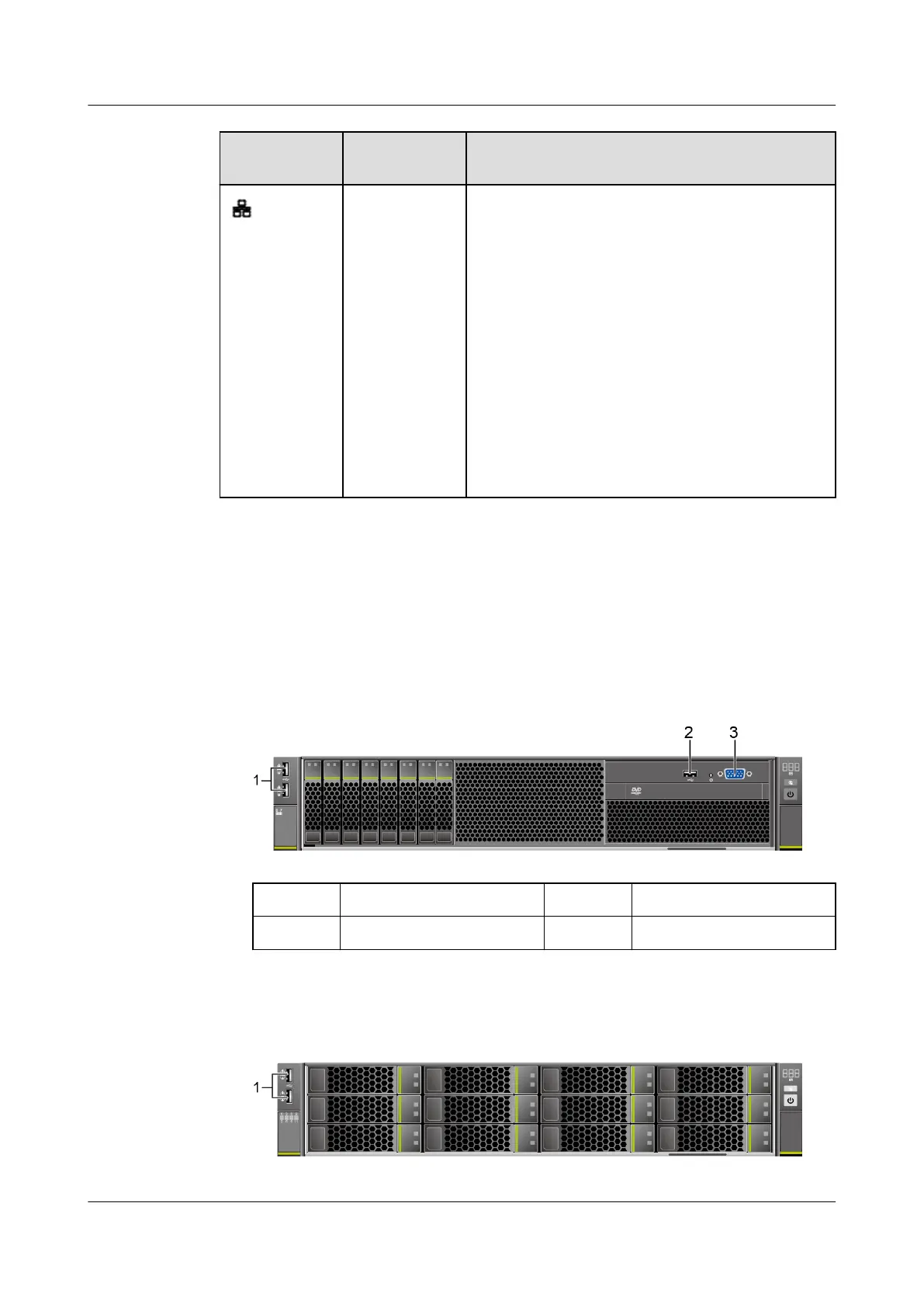

Figure 2-9 Ports on the front panel
1
USB 2.0 ports 2 USB 3.0 port
3 VGA port - -
● 12 x 3.5" drive conguration
Figure 2-10 Ports on the front panel
FusionServer Pro 2288X V5 Server
User Guide 2 Hardware Description
Issue 04 (2020-06-05) Copyright © Huawei Technologies Co., Ltd. 10
