Process

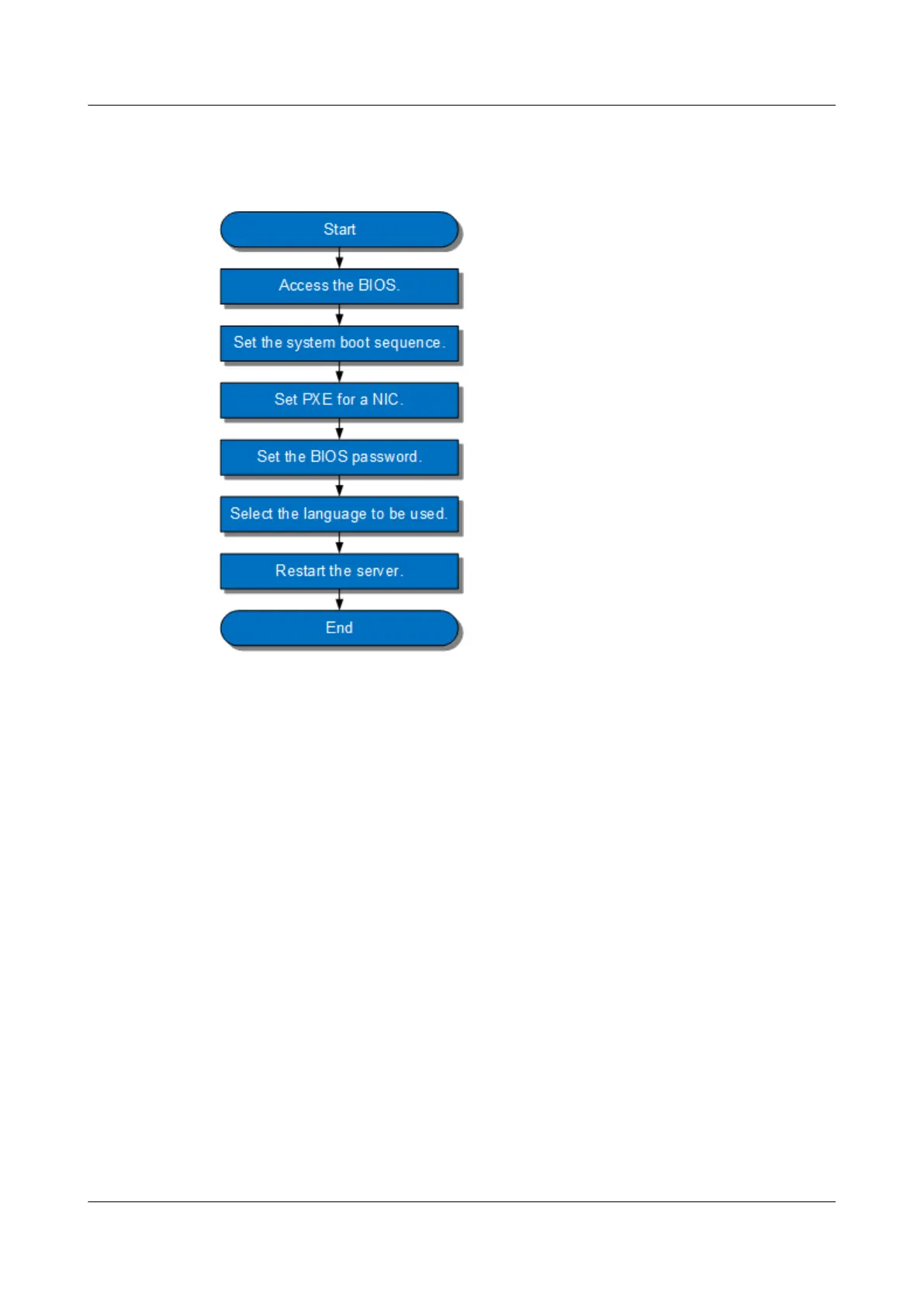

Figure 7-31 Process for conguring the BIOS
7.4.7.1 Accessing the BIOS
Procedure
Step 1 Restart the server, and enter the BIOS.
For details, see 9.6 Accessing the BIOS.
----End
7.4.7.2 Setting the System Boot Sequence
If multiple boot devices are congured for the server, you can set the system boot
sequence on the BIOS.
Procedure
Step 1 On the BIOS main screen, choose Boot.
The Boot screen is displayed.
Step 2 Select Boot Type and press Enter.
The Boot Type dialog box is displayed.
Step 3 Select Legacy Boot or UEFI Boot, and then press Enter.
FusionServer Pro 2288X V5 Server
User Guide 7 Installation and Conguration
Issue 04 (2020-06-05) Copyright © Huawei Technologies Co., Ltd. 106
