41 Left mounting ear
connector (LCIA BOARD/
J161)
42 OCP 2.0 mezzanine card 2
slot (OCP2/J179)
● a: The port is reserved.
● b: The built-in USB 3.0 port can be connected to the front USB 3.0 port
through a USB cable. It cannot be used directly.
2.10.2 Drive Backplane
Front-Drive Backplane
● 8 x 2.5" drive pass-through backplane

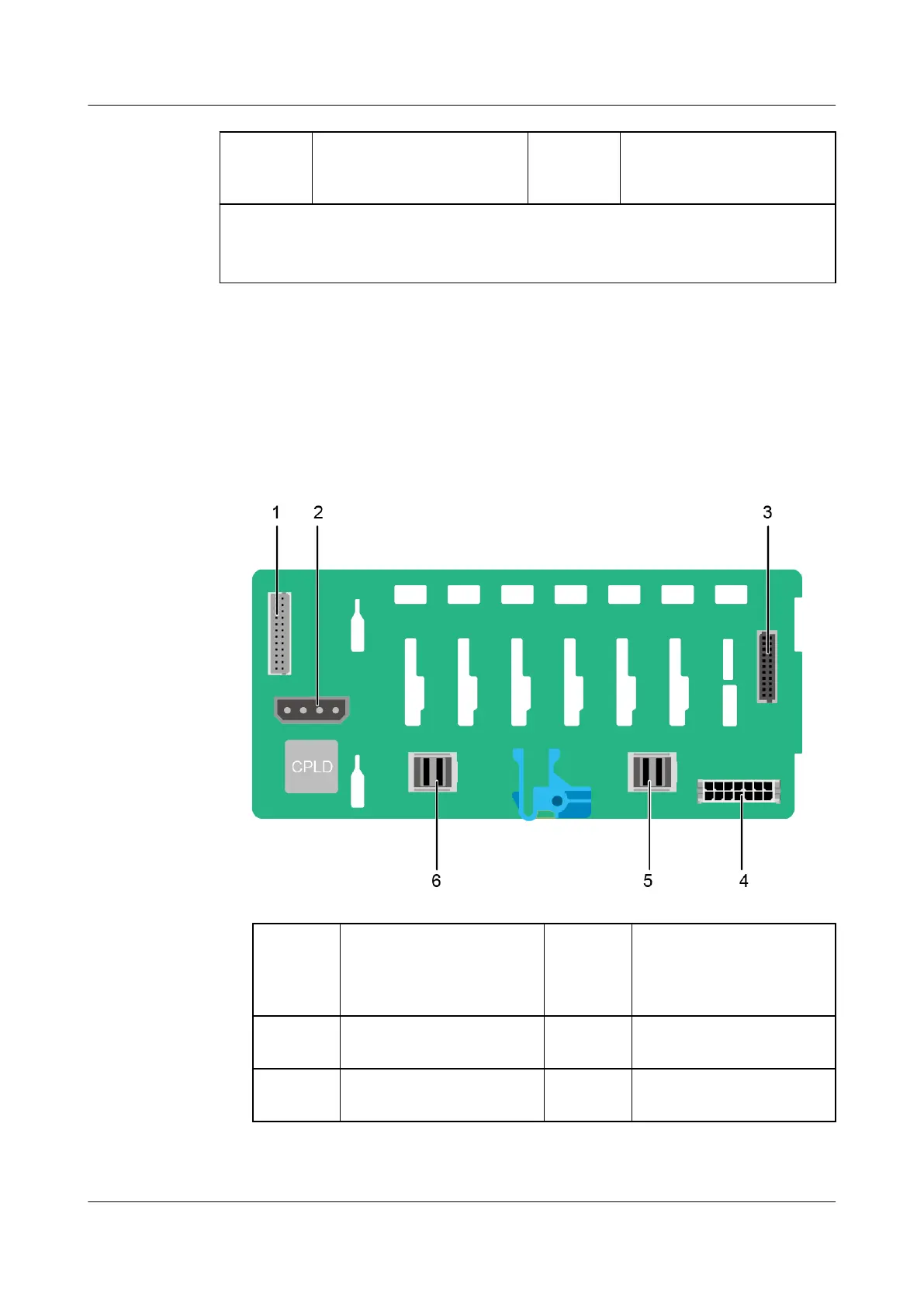

Figure 2-43 8 x 2.5" drive pass-through backplane (BOM 03026VRB)
1 Indicator signal cable
connector (REAR BP1/J3)
NOTE
The connector is reserved.
2 DVD drive power
connector (DVD/J11)
3 Backplane signal cable
connector (HDD BP/J1)
4 Power connector
(POWER/J2)
5 mini-SAS HD connector
(PORT A/J28)
6 mini-SAS HD connector
(PORT B/J29)
● 12 x 3.5" drive pass-through backplane
FusionServer Pro 2288X V5 Server
User Guide 2 Hardware Description
Issue 04 (2020-06-05) Copyright © Huawei Technologies Co., Ltd. 49
