Prerequisites
Conditions
No special condition is required for this operation.
Data
Data preparation is not required for this operation.
Procedure
Step 1 Connect the USB connector on the PS/2 cable to the USB port on the front or rear
panel of the server.
Step 2 Connect the connectors on the other end of the PS/2 cable to the keyboard and
mouse.
Step 3 Connect the DB15 connector on the VGA cable to the VGA port on the front or
rear panel of the server, and tighten the two screws on the connector to secure
the cable.
Step 4 Connect the other end of the VGA cable to the VGA port on the monitor. Tighten
the two screws on the connector to secure the cable.

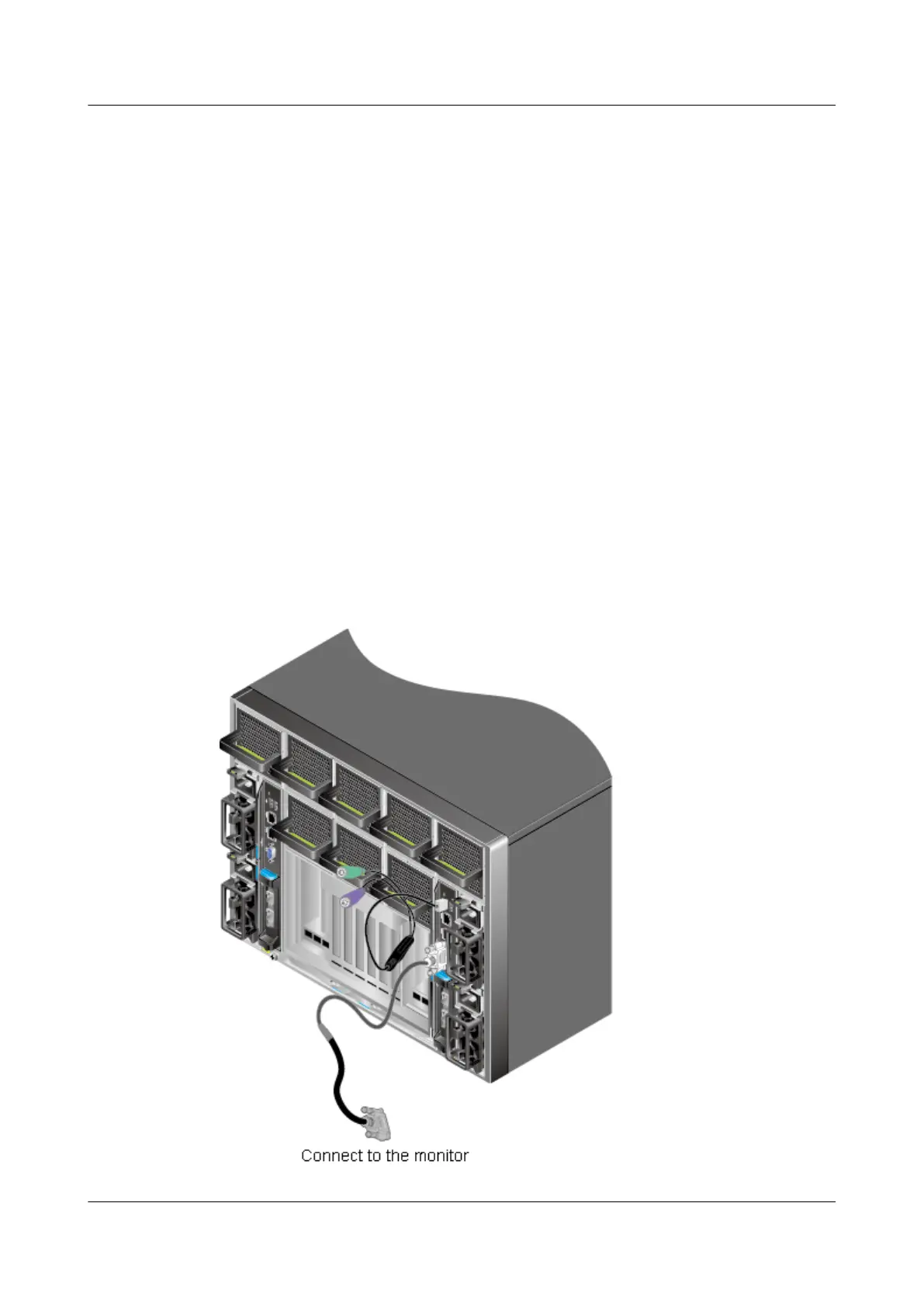

Figure 3-11 Connecting a USB-to-PS/2 cable and a VGA cable
RH8100 V3 Server
User Guide 3 Installing the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 92
