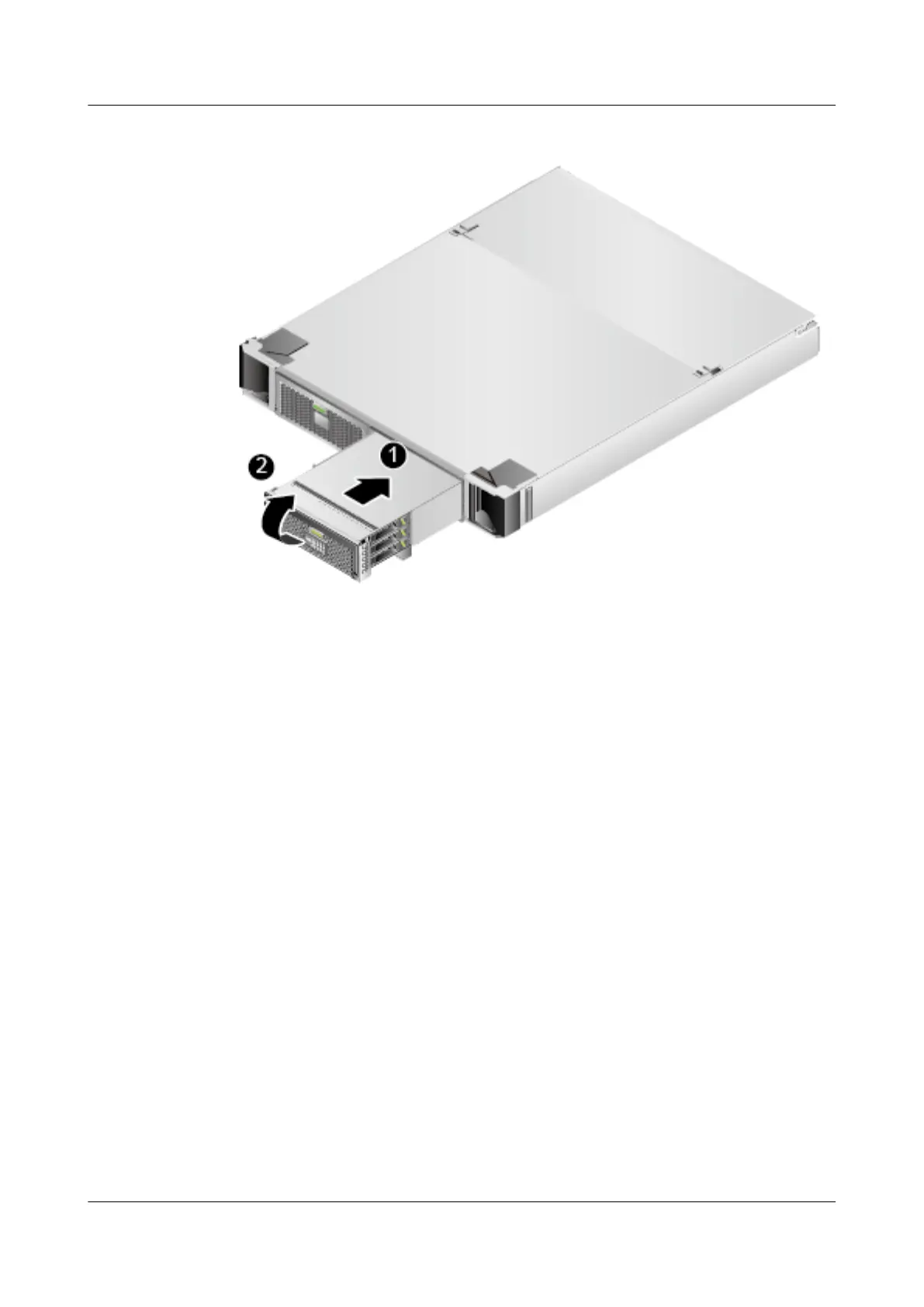

Figure 5-92 Pushing a hard disk enclosure
Step 9 Lower the ejector lever of the hard disk enclosure. See step (2) in Figure 5-92.
Step 10 Connect all cables to the hard disk backplane.
----End
5.7 Replacing the FM-C and Its Internal Components
This topic describes how to replace the front I/O module of model C (FM-C) and
its internal components.
5.7.1 Removing the Front I/O Module
This topic describes how to remove the front I/O module.
Scenarios
Remove the front I/O module if:
● The front I/O module has failed.
● A RAID controller card on the front I/O module has failed.
● A supercapacitor on the front I/O module has failed.
● A hard disk backplane has failed.
Prerequisites
Conditions
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 208
