● ESD gloves
● Packaging materials, for example, an ESD bag
Procedure
Step 1 Wear an ESD wrist strap or ESD gloves. For details, see 1 Safety Instructions.
Step 2 Open the two xing clips of the DIMM slot simultaneously. See step (1) in Figure
5-14.

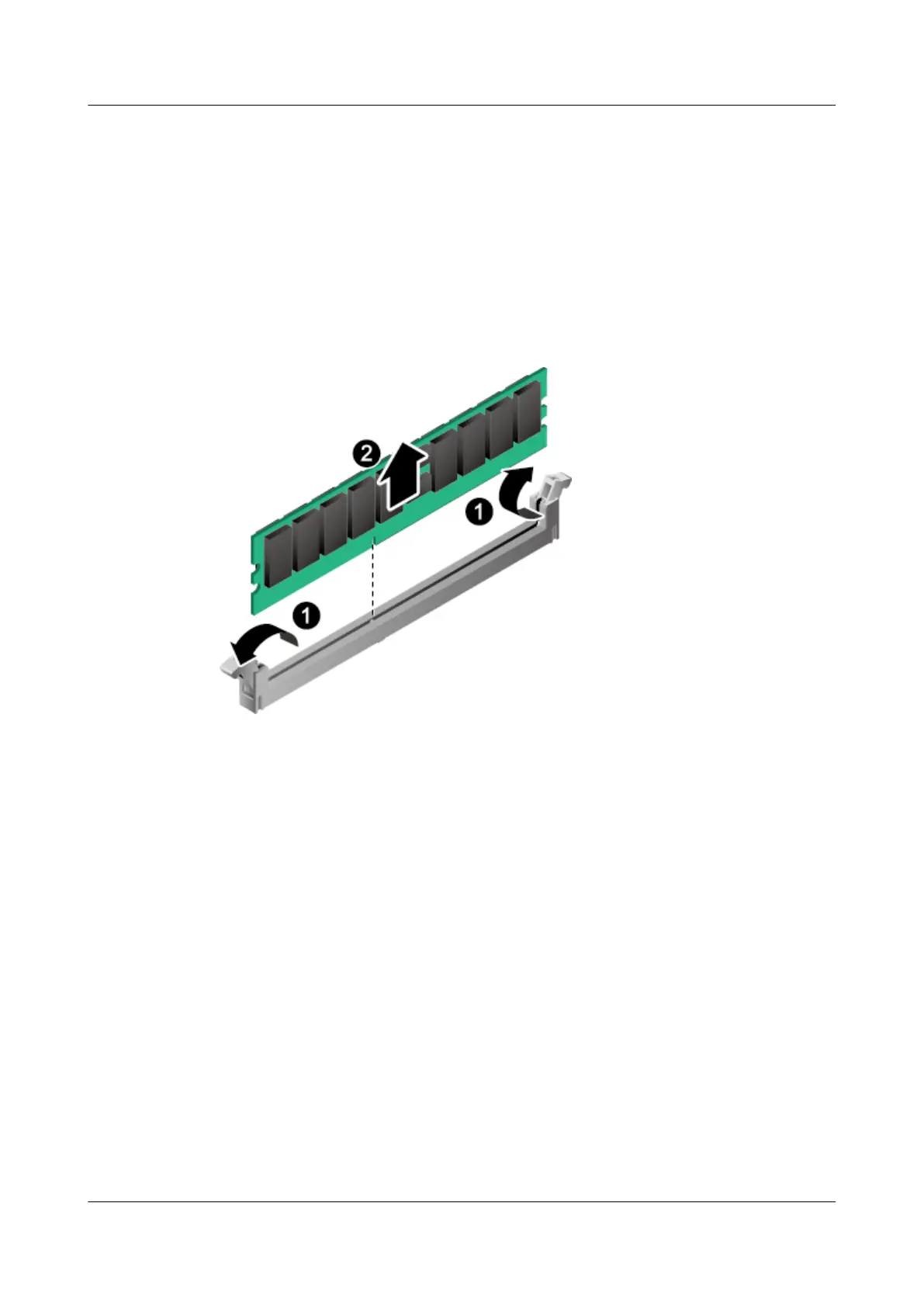

Figure 5-14 Removing a DIMM
Step 3 Remove the DIMM from the slot. See step (2) in Figure 5-14.
Step 4 Place the removed DIMM in an ESD bag.
----End
5.2.8 Installing a DIMM
This topic describes how to install a DIMM.
Scenarios
Install a DIMM if:
● A DIMM has failed.
● A DIMM needs to be replaced with a new model.
● The memory capacity needs to be expanded.
The rules for installing DIMMs are as follows:
● If each memory board supports 12 DIMMs, the RH8100 V3 supports 192
DDR3 or DDR4 DIMMs. Each memory board provides four memory channels:
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 126
