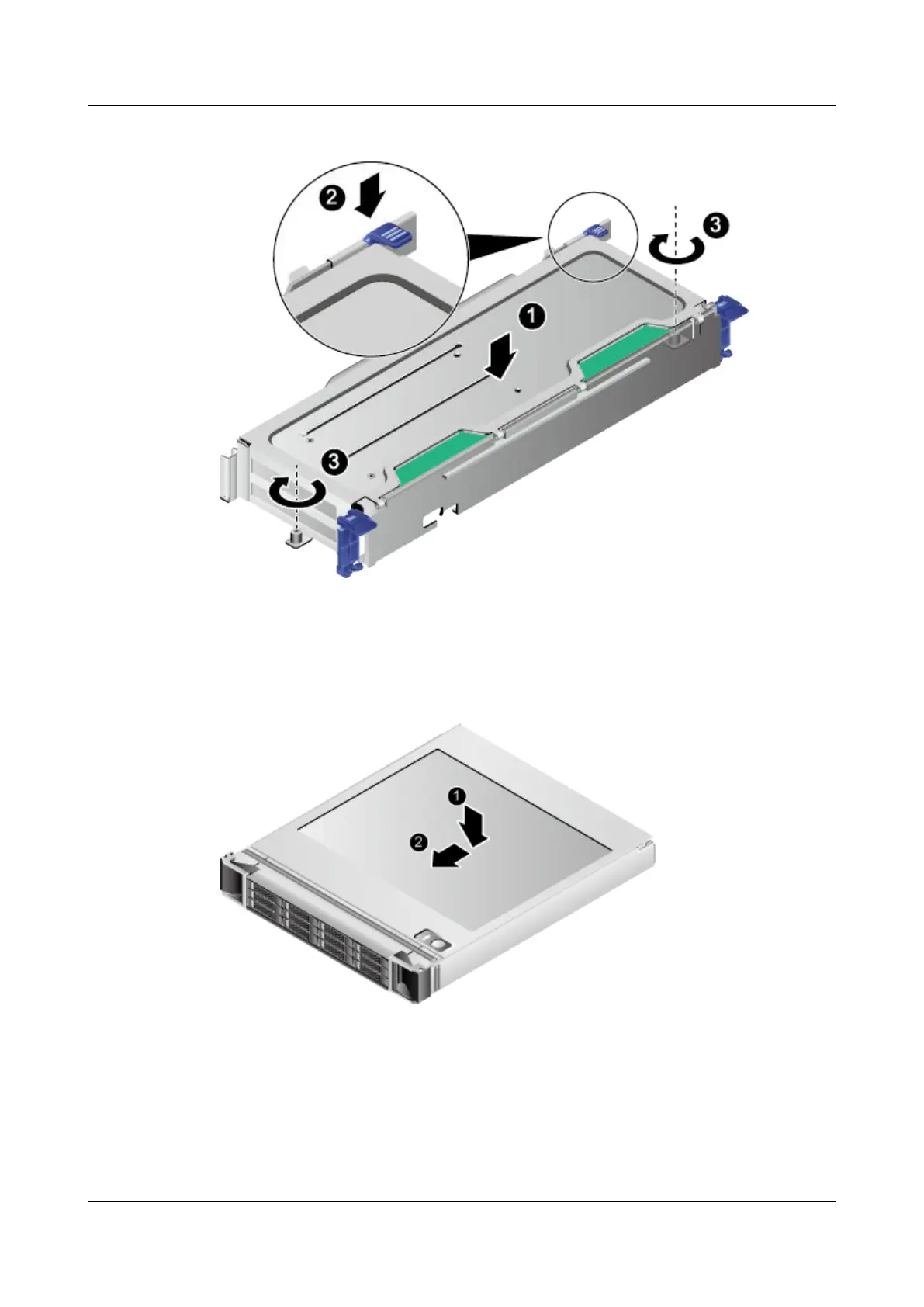

Figure 5-41 Installing a riser card
Step 6 Install the cover of the front I/O module in the arrow directions. See steps (1) and
(2) in Figure 5-42.
Figure 5-42 Installing a cover for the front I/O module
----End
5.5.7 Removing a PCIe Card
This topic describes how to remove a PCIe card.
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 159
