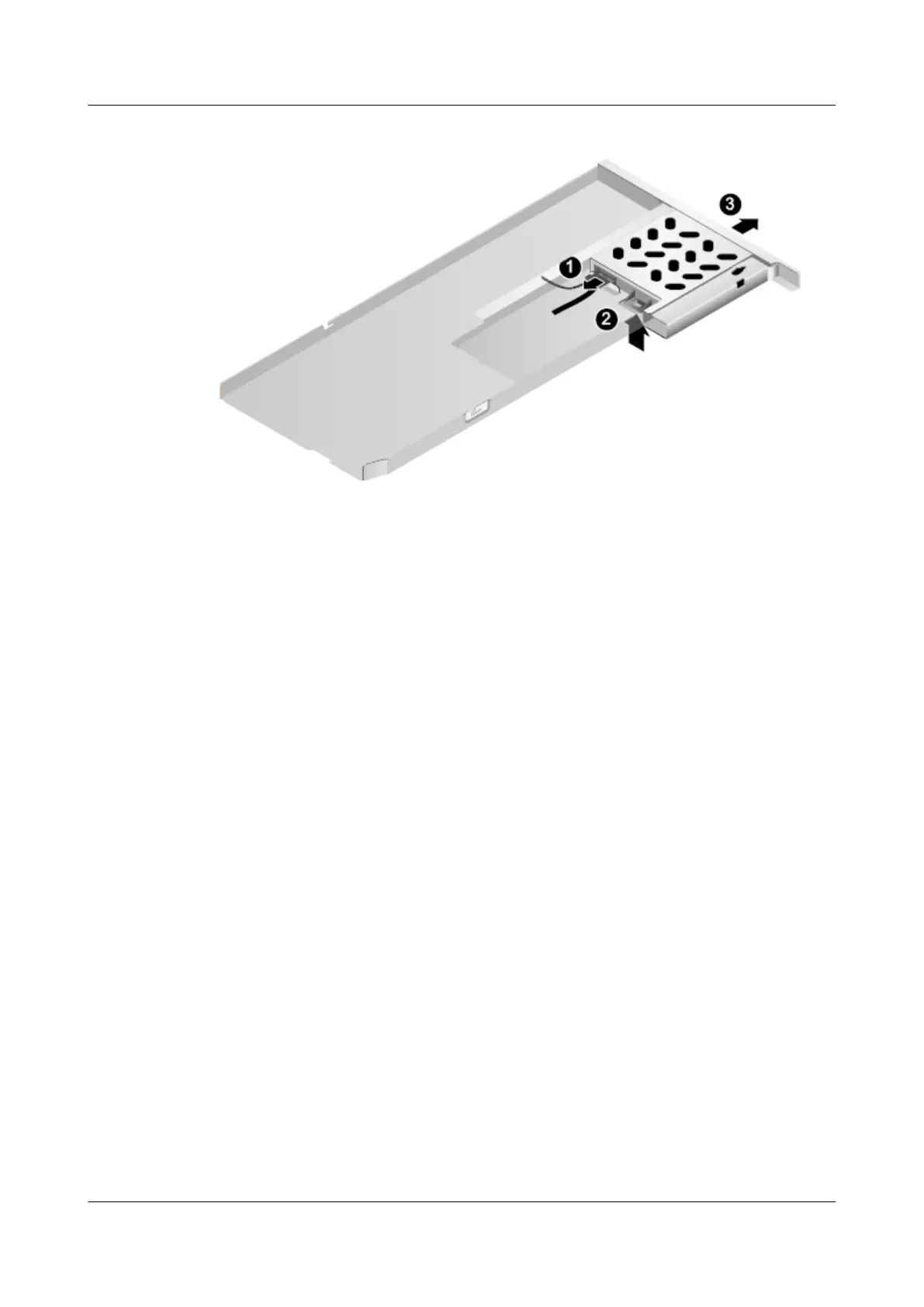

Figure 5-24 Removing a DVD drive
Step 6 Place the removed DVD drive in an ESD bag.
----End
5.3.6 Installing a DVD Drive
This topic describes how to install a DVD drive.
Scenarios
Install a DVD drive if the original one has failed.
Prerequisites
Conditions
You have removed the DVD drive+LCD module from the RH8100 V3. For details,
see 5.3.1 Removing a DVD Drive+LCD Module.
Data
● You have obtained the cabinet number and chassis number of the RH8100 V3.
● You have located the RH8100 V3 based on the preceding information, and
labeled its panel to prevent misoperations.
● You have determined the position on the RH8100 V3 for installing a DVD
drive.
Tools
● ESD gloves
● Packaging materials, for example, an ESD bag
● M3 Phillips screwdriver
Hardware
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 138
