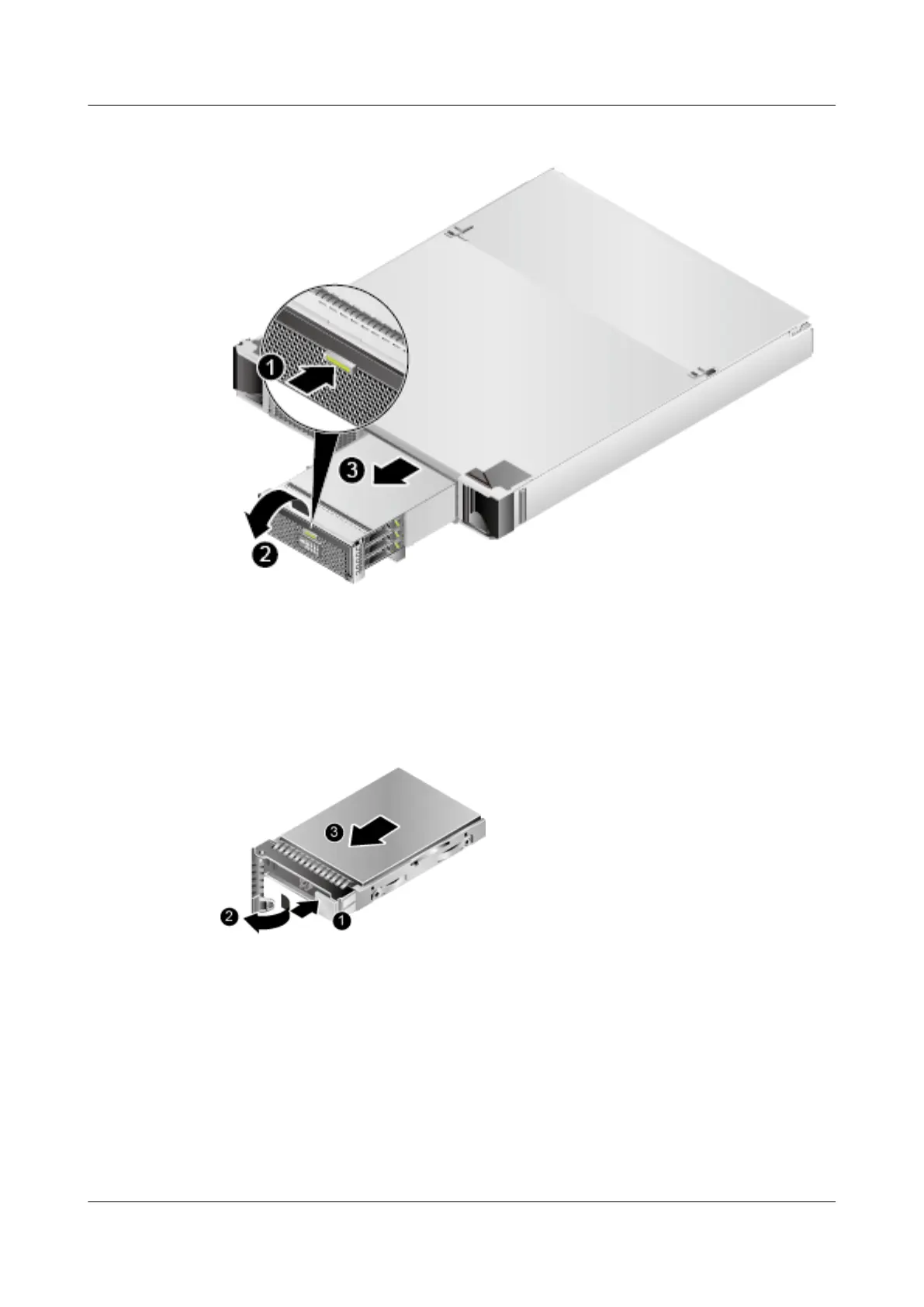

Figure 5-65 Pulling out a hard disk enclosure
Step 3 Pull out the hard disk by holding the ejector lever. See step (3) in Figure 5-65.
Step 4 Press the release button that secures the ejector lever. See step (1) in Figure 5-66.
The ejector lever automatically ejects.
Figure 5-66 Removing a hard disk
Step 5 Pull out the hard disk for about 3 cm (1.18 in.) while holding the ejector lever on
the hard disk enclosure. Wait at least 30s until the hard disk stops spinning, and
then remove the hard disk from the RH8100 V3. See step (2) in Figure 5-66.
Step 6 Place the removed hard disk in an ESD bag.
----End
5.6.4 Installing a Hard Disk
This topic describes how to install a hard disk.
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 184
