Prerequisites
Conditions
No special conditions are required for this operation.
Data
● You have obtained the cabinet number and chassis number of the RH8100 V3.
● You have located the RH8100 V3 based on the preceding information, and
labeled its panel to prevent misoperations.
● You have determined the position on the RH8100 V3 for installing a hard disk.
Tools
● ESD gloves
● Packaging materials, for example, an ESD bag
Hardware
Spare hard disk
Procedure
Step 1 Wear an ESD wrist strap or ESD gloves. For details, see 1 Safety Instructions.
Step 2 Take the spare hard disk out of its ESD bag.
Step 3 Fully open the ejector lever and push the hard disk into the hard disk enclosure
along the guide rails until the hard disk is in place. See (1) in Figure 5-96.

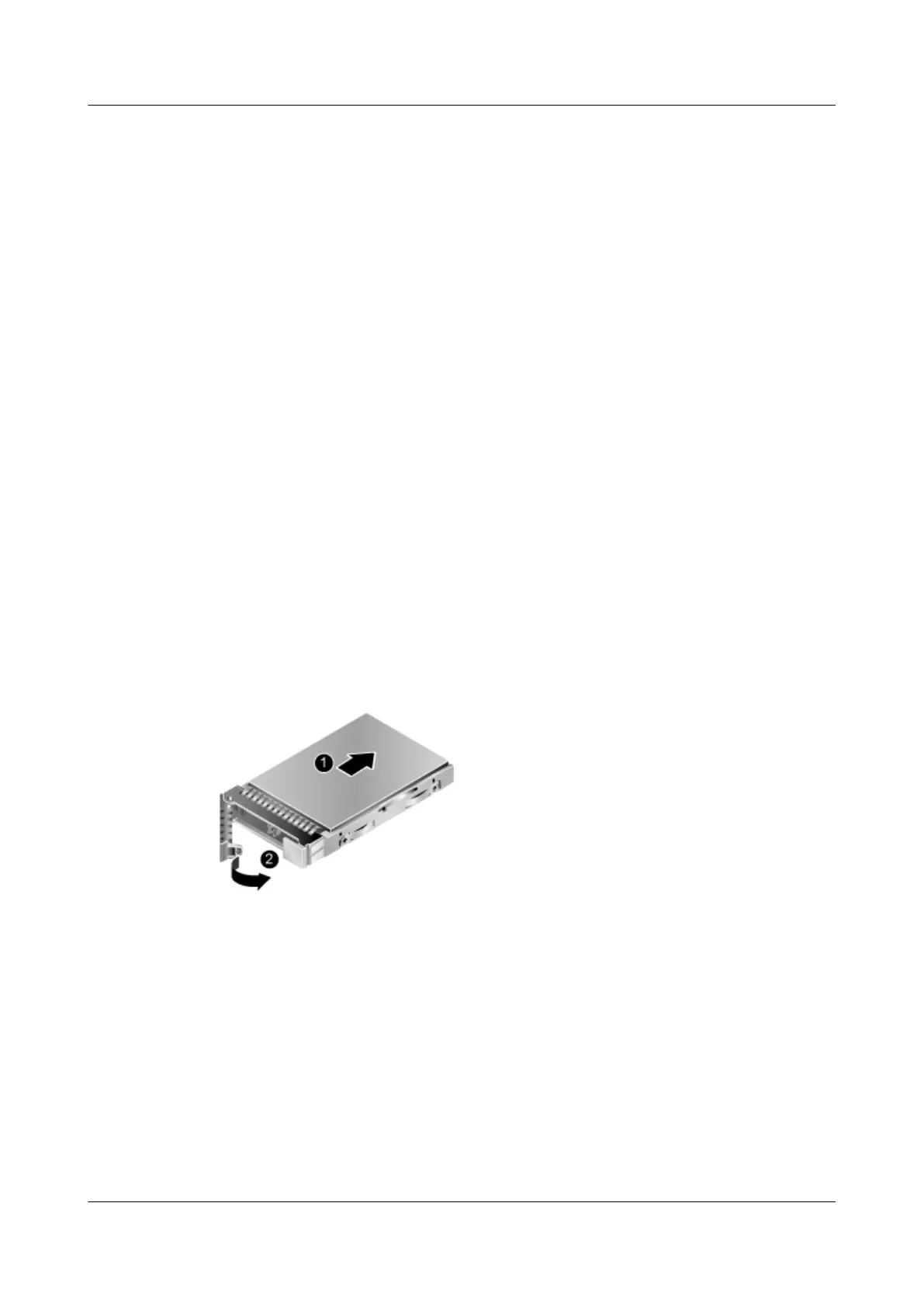

Figure 5-96 Installing a hard disk
Step 4 Ensure that the ejector lever is engaged with the left partition board in the front
I/O module, and close the ejector lever to completely insert the hard disk into the
front I/O module. See step (2) in Figure 5-96.
----End
5.7.5 Removing a RAID Controller Card
This topic describes how to remove a RAID controller card.
Scenarios
Remove a RAID controller card if:
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 213
