Step 5 (Optional) If there is a hollowed-out metal bar on the outer side of the PCIe card
or a PCIe slot is vacant, remove the plastic bae from the top of the rear I/O
module, and install the plastic bae on the outer side of the PCIe slot. See steps
(1) and (2) in Figure 5-163.

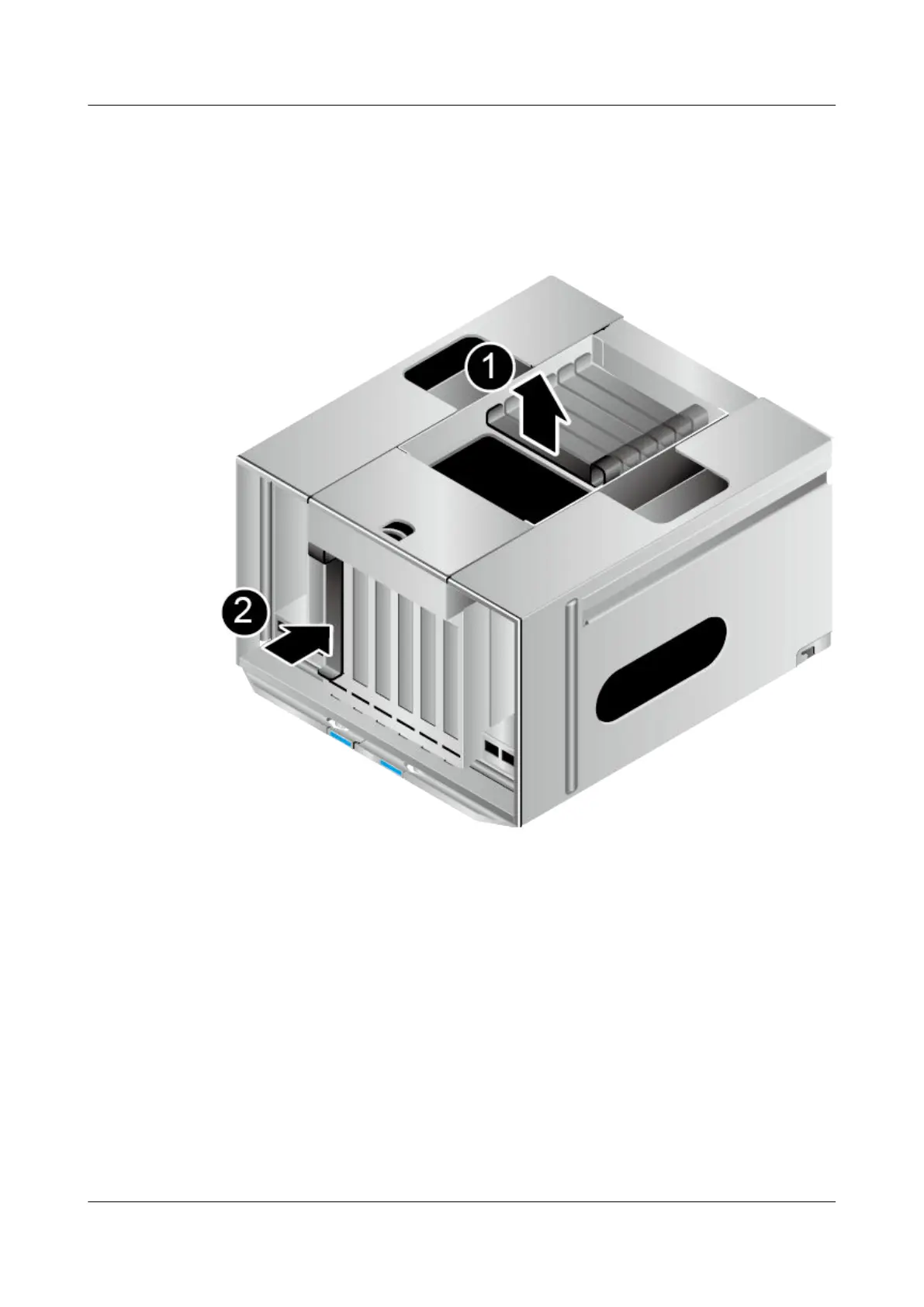

Figure 5-163 Installing a plastic bae
----End
5.11.7 Removing the Rear I/O Board
This topic describes how to remove the rear I/O board before replacing it with a
new one.
Scenarios
Remove the rear I/O board before replacing it with a new one.
Requirements
Prerequisites
● You have powered o the server. For details, see 6.2 Powering O the
RH8100 V3. After the server is powered o, disconnect all the power cables.
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 297
