Scenarios
Install a non-hot-swappable PCIe card if the original one has failed.
Prerequisites
Conditions
● You have powered o the RH8100 V3. For details, see 6.2 Powering O the
RH8100 V3. Then you have removed all power cables from the server.
● You have removed the rear I/O module from the RH8100 V3. For details, see
5.11.1 Removing a Rear I/O Module.
Data
● You have obtained the cabinet number and chassis number of the RH8100 V3.
● You have located the RH8100 V3 based on the preceding information, and
labeled its panel to prevent misoperations.
● You have determined the position on the RH8100 V3 for installing a PCIe card.
Tools
● ESD gloves
● Packaging materials, for example, an ESD bag
Hardware
Spare PCIe card
Procedure
Step 1 Wear an ESD wrist strap or ESD gloves. For details, see 1 Safety Instructions.
Step 2 Take the spare PCIe card out of its ESD bag.
Step 3 Insert the PCIe card into a PCIe slot. See step (1) in Figure 5-162.
Step 4 Close the cover of the rear I/O module. See step (2) in Figure 5-162.

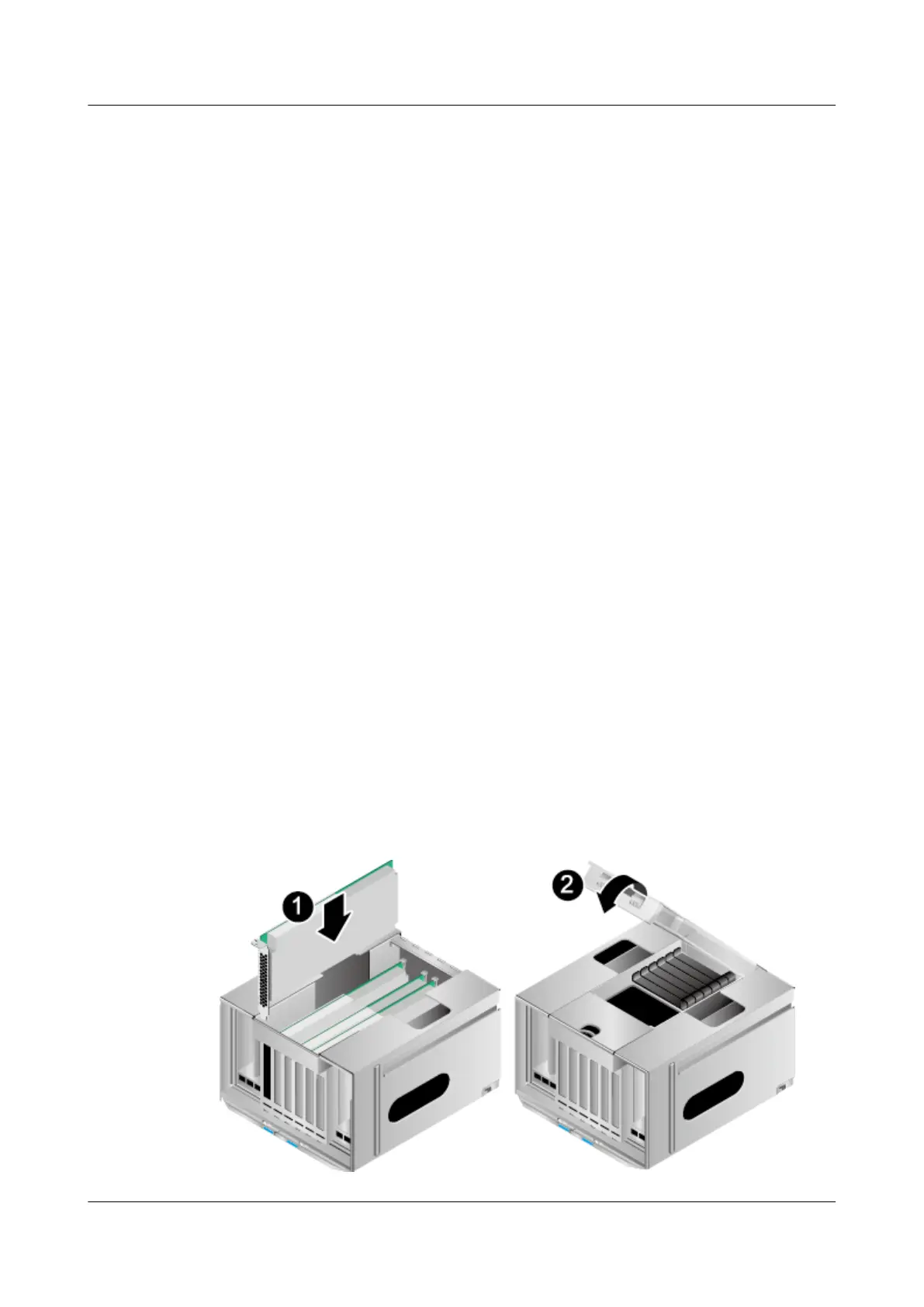

Figure 5-162 Installing a non-hot-swappable PCIe card
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 296
