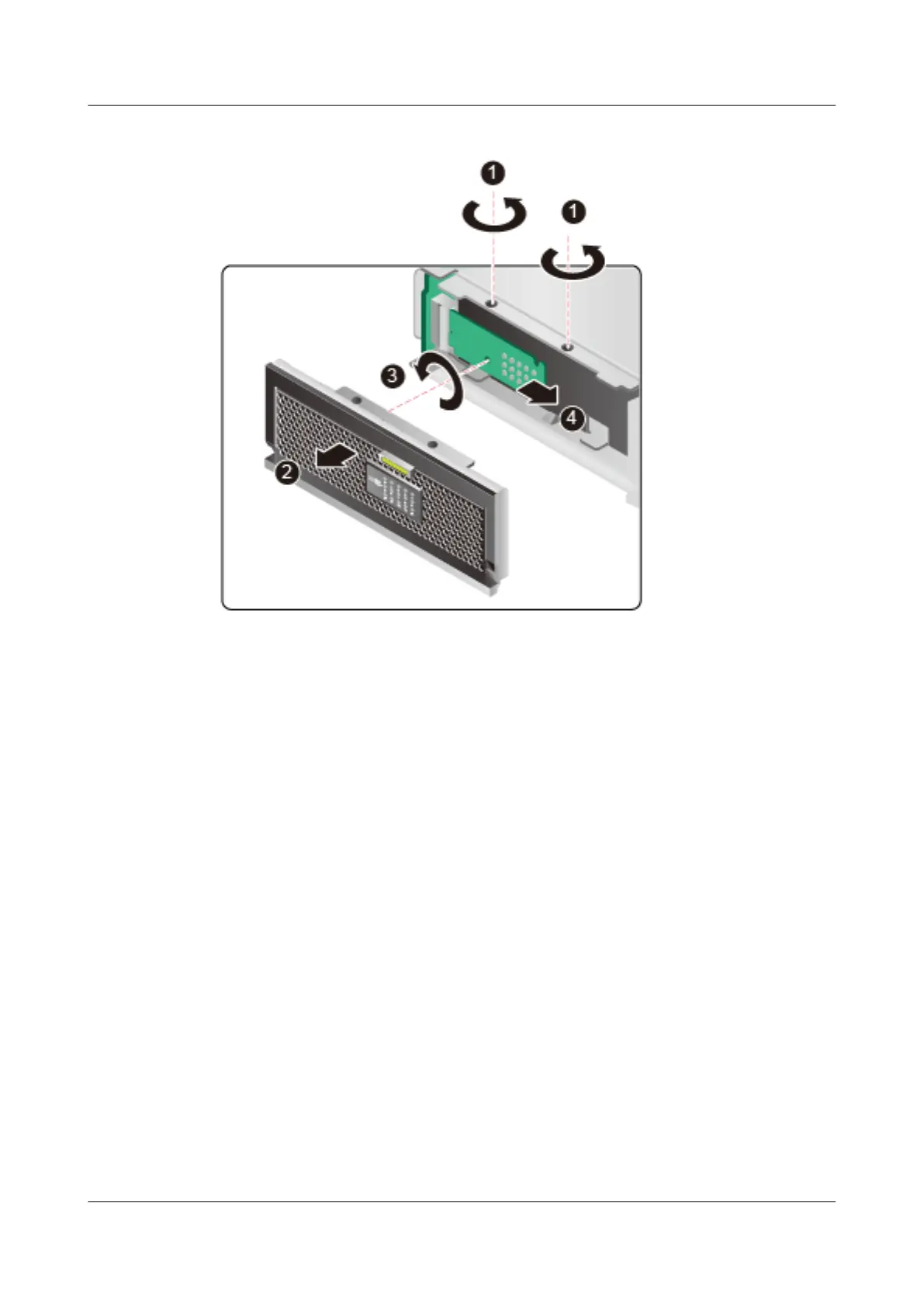

Figure 5-82 Removing a hard disk indicator panel
Step 6 Loosen the screws fastening the hard disk indicator panel. See step (3) in Figure
5-82.
Step 7 Lift the hard disk indicator panel upwards out of the hard disk enclosure. See step
(4) in Figure 5-82.
Step 8 Place the removed hard disk indicator panel in an ESD bag.
----End
5.6.10 Installing a Hard Disk Indicator Panel
This topic describes how to install a hard disk indicator panel.
Scenarios
Install a hard disk indicator panel when it is faulty and needs to be replaced.
Prerequisites
Conditions
● You have powered
o the RH8100 V3. For details, see 6.2 Powering O the
RH8100 V3. Then you have removed all power cables from the server.
● You have removed the front I/O module. For details, see 5.6.1 Removing the
Front I/O Module.
Data
RH8100 V3 Server
