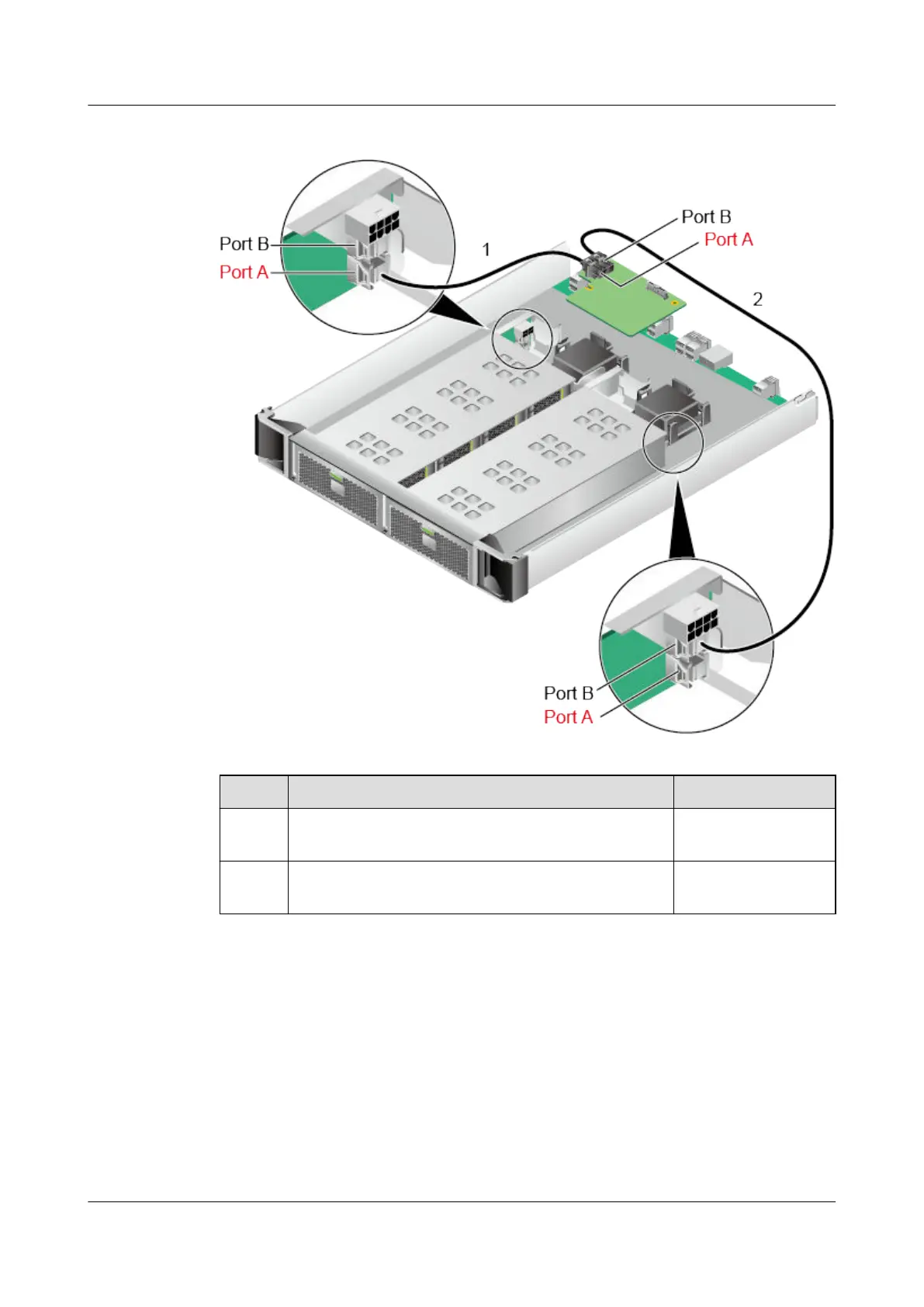

Figure 5-71 Cable connections
No. Description BOM Number
1 SAS HD cable (Port A-Port A) for connecting the
hard disk backplane to the RAID controller card
04051114
2 SAS HD cable (Port B-Port B) for connecting the
hard disk backplane to the RAID controller card
04051116
If the RH8100 V3 is congured with two RAID controller cards, the cable
connections between the RAID controller cards and the hard disk backplane are
shown in Figure 5-72.
RH8100 V3 Server
User Guide 5 Removing and Installing Parts of the RH8100 V3
Issue 30 (2019-12-19) Copyright © Huawei Technologies Co., Ltd. 189
