Install and Set Up the Plasma Power Supply
2
22 810470 Operator Manual Powermax65/85/105 SYNC

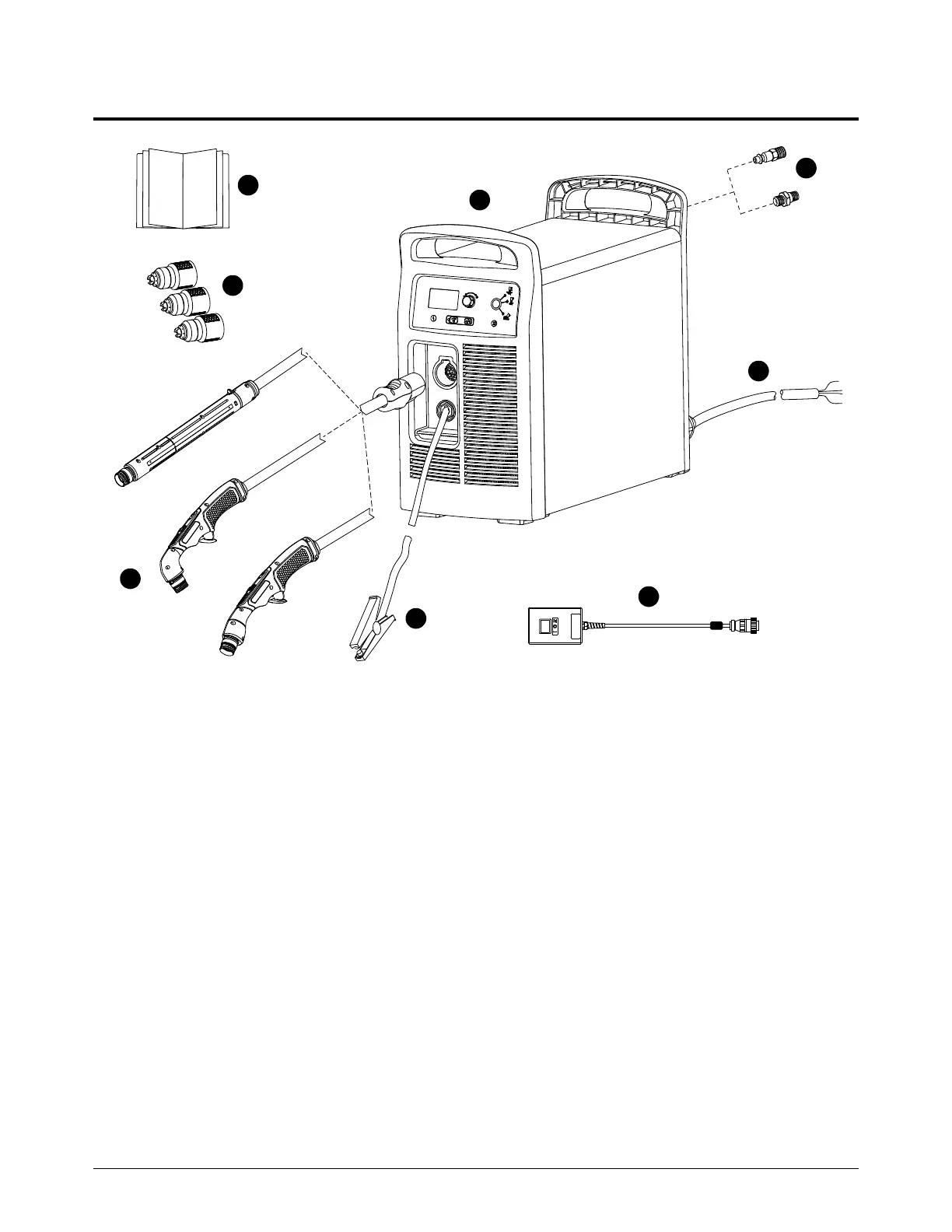

Make sure that you have all the system components

For a full list of the cutting and gouging cartridges available refer to the
Powermax65/85/105 SYNC Parts Guide (810490).
7
8
1
2
3
4
5
6
1 Documentation:
• USB memory stick with technical and safety
documentation
•Quick Setup Guide
• Quick Reference Guide
• Cut Charts Guide
• Fault codes label
2 Plasma power supply
3 Region-specific gas inlet fitting
4 Power cord with no power plug
5 Remote-start pendant (optional – mechanized
configurations only)
6 Work lead with work clamp, C clamp, or ring
terminal
7 15° or 75° hand torch with lead or 180° full-length
machine torch with lead
8 Starter set of cartridges
