Cut with the Hand Torch
4
96 810470 Operator Manual Powermax65/85/105 SYNC
 The FastConnect quick-disconnect system that lets you easily remove the torch to move the
system or to change from one torch to another
For information about the thicknesses you can cut and pierce with a SmartSYNC hand torch, refer
to Cutting specifications on page 35.
Select the correct cutting cartridge
Hypertherm offers the following types of hand-cutting cartridges, which can be used with both the
15° and the 75° SmartSYNC hand torches:
 For a full list of the cutting and gouging cartridges available, refer to the
Powermax65/85/105 SYNC Parts Guide (810490).
 If your preference is to keep a standoff while cutting, you can use the gray mechanized
cutting cartridges on your SmartSYNC hand torch.
 For information on gouging processes and cartridges, refer to Gouge with the Hand Torch
on page 111.
 Plasma power supplies are shipped with a starter set of Hypertherm cartridges.

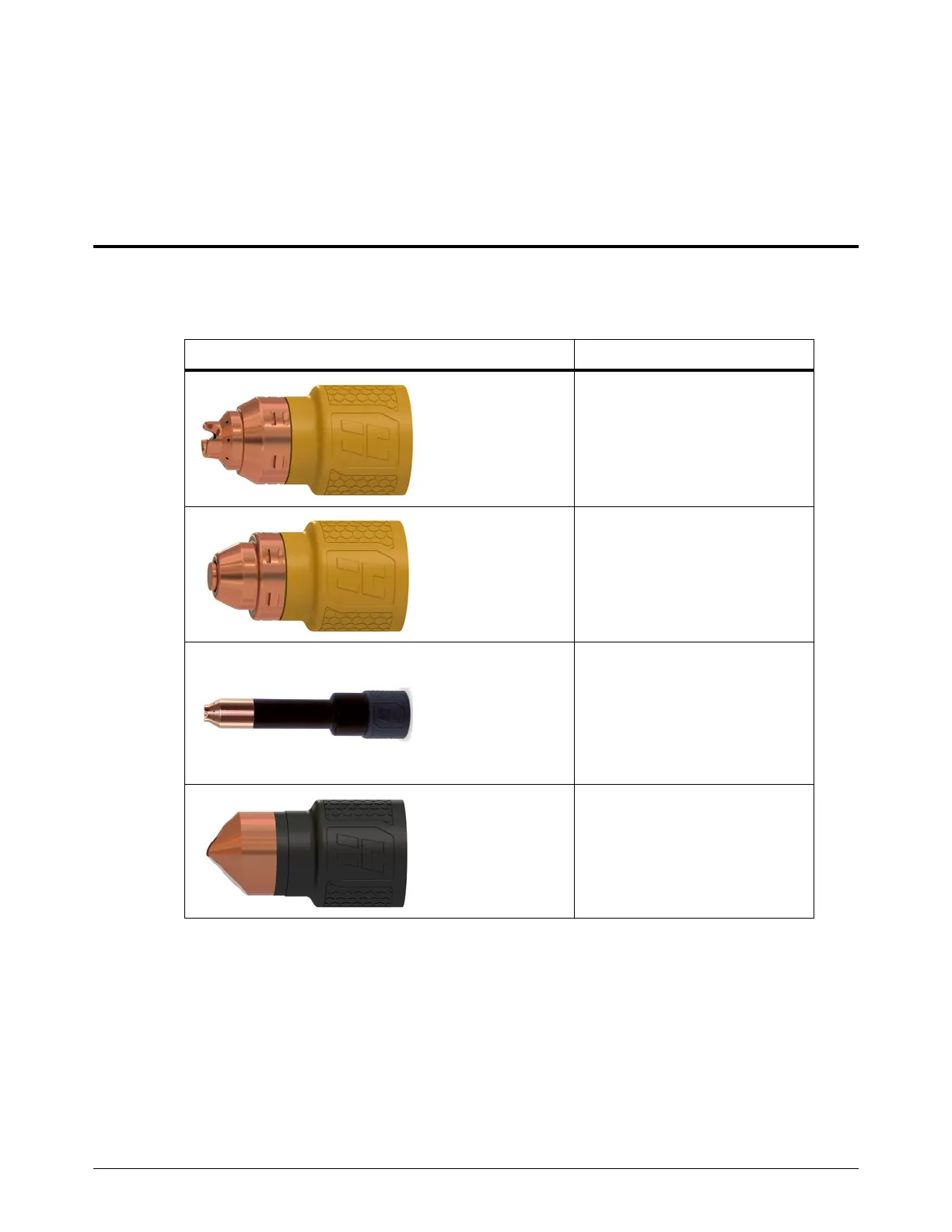

Cartridge Type Purpose
Drag-cutting
(yellow)
Use these cartridges to drag the
torch on the workpiece (drag-cut)
for the widest range of cutting
applications.
FineCut
®
hand
(yellow)
Use these cartridges to get a
narrower kerf on thin mild steel
and stainless steel up to 3 mm
(10 gauge).
HyAccess
TM
(black)
Use these cartridges to increase
the range of the hand torch to cut
in hard-to-reach areas or
confined spaces. Refer to
Guidelines for HyAccess
specialty cartridges on page 106.
FlushCut
TM
(black)
Use these cartridges to remove
lugs, bolts, pad eyes, and other
attachments without piercing or
damaging the workpiece below.
