Operate the Plasma System
3
Powermax65/85/105 SYNC Operator Manual 810470 89

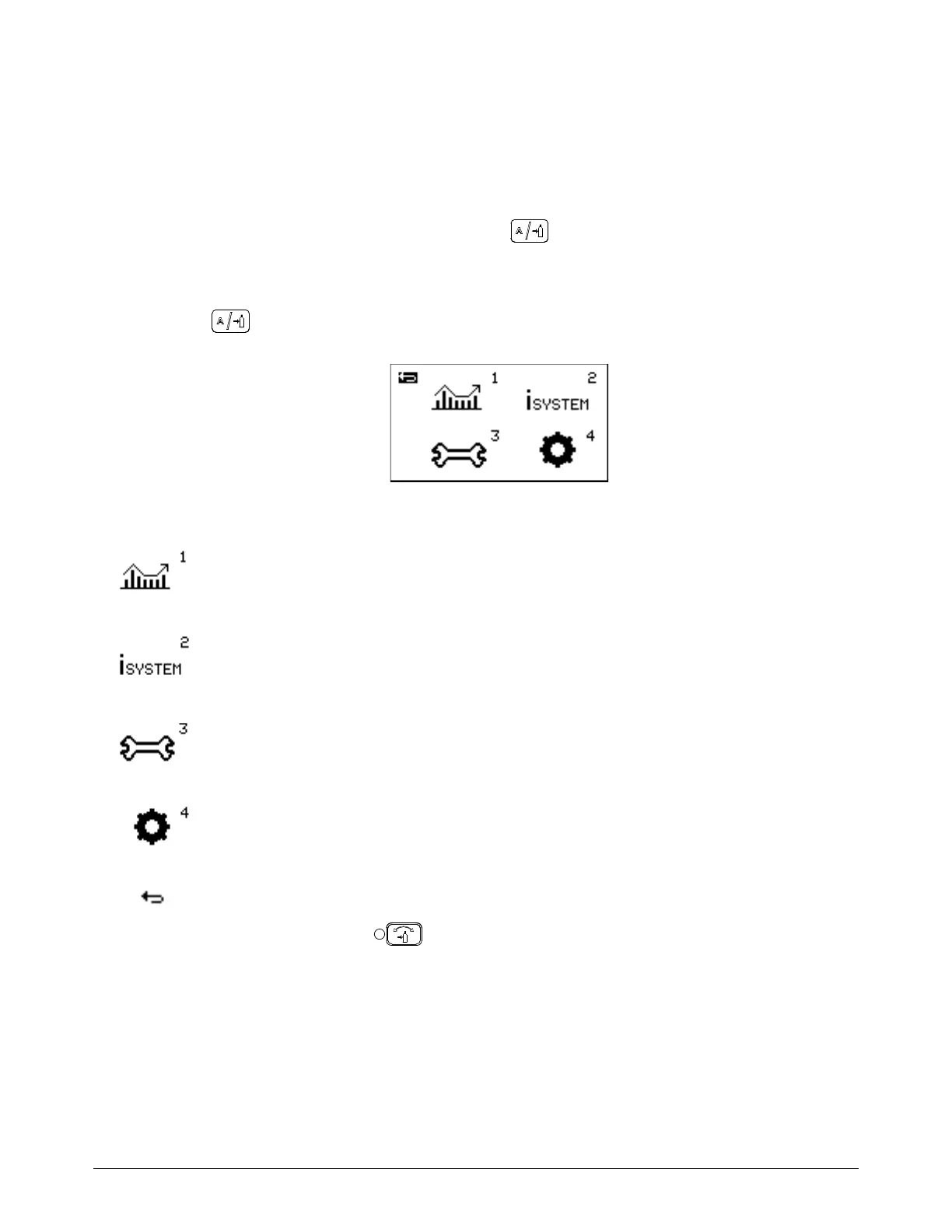

Main menu screen
Use the main menu screen to go to the 4 submenu screens. Use the submenu screens to see
information about the plasma power supply, torch, and Hypertherm cartridge, and to change system
settings.
1. To go to the main menu screen, push and hold for 2 seconds.
2. Turn the adjustment knob to go to an icon on the screen.
3. Push to select the icon.
Cartridge and plasma power supply data – Select this icon to go to use data and
other information about the Hypertherm cartridge and the plasma power supply.
Refer to page 90.
System information – Select this icon to go to service-related information about
printed circuit boards (PCBs) in the plasma power supply and in the
SmartSYNC torch. Refer to page 91.
Service – Select this icon to go to service-related information about fault codes, radio
frequency (RF) settings and logs, and cut counter transfers. Refer to page 92.
Settings – Select this icon to go to system settings that you can change, such as the
brightness and contrast of the LCD screen. Refer to page 93.
Back – Select this icon to go back to the screen you were on before.
Tip: Push the button to immediately go back to the status screen.
