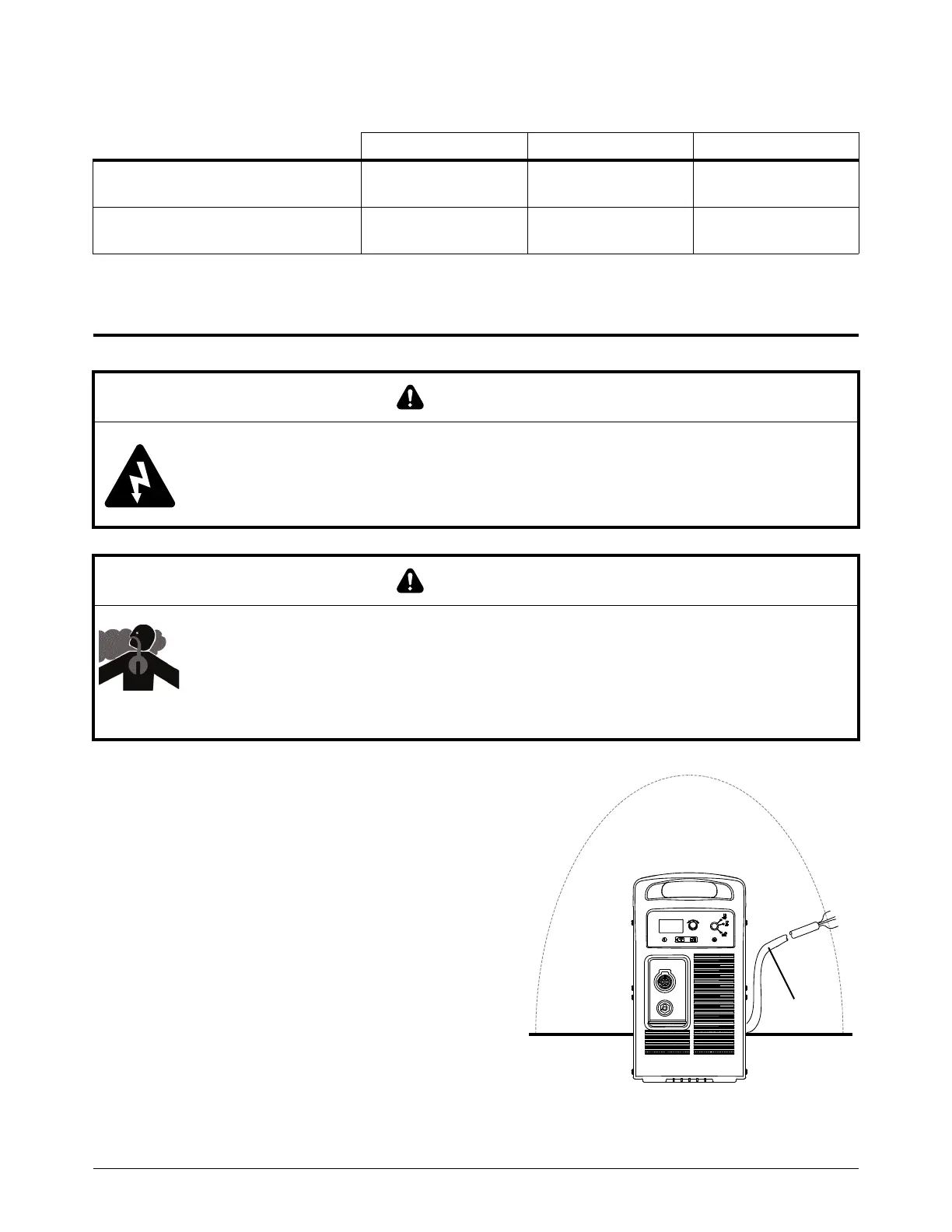

Install and Set Up the Plasma Power Supply
36 810470 Operator Manual Powermax65/85/105 SYNC
Gouge capacity
Set up the plasma power supply
Do not use the plasma power supply in rain
or snow.
Put the plasma power supply near the
line-disconnect switch or near an approved
power receptacle for your installation. The
plasma power supply has a 3 m (10 ft)
power cord.
Keep at least 0.25 m (10 inches) of space
around the plasma power supply for
sufficient ventilation.
65 A 85 A 105 A
Maximum Removal metal removal rate
on mild steel
4.0 kg/hr (8.8 lb/hr) 8.2 kg/hr (18.2 lb/hr) 8.6 kg/hr (19.1 lb/hr)
Maximum Control metal removal rate on
mild steel
2.3 kg/hr (5.1 lb/hr) 4.8 kg/hr (10.6 lb/hr) 7.2 kg/hr (15.9 lb/hr)
WARNING
CHANCE OF ELECTRIC SHOCK
Never cut under water or submerge the torch in water. Electric shock can cause serious
injury.
WARNING
TOXIC FUMES CAN CAUSE INJURY OR DEATH
Some metals, including stainless steel, can release toxic fumes when cut. Make sure that
your work site has sufficient ventilation to make sure that the air quality level meets all local
and national standards and regulations. Refer to the Safety and Compliance Manual
(80669C) for more information.
Clearance:
>0.25 m (10 inches)
3m (10ft)
