2
PANEL DESCRIPTION
2-5

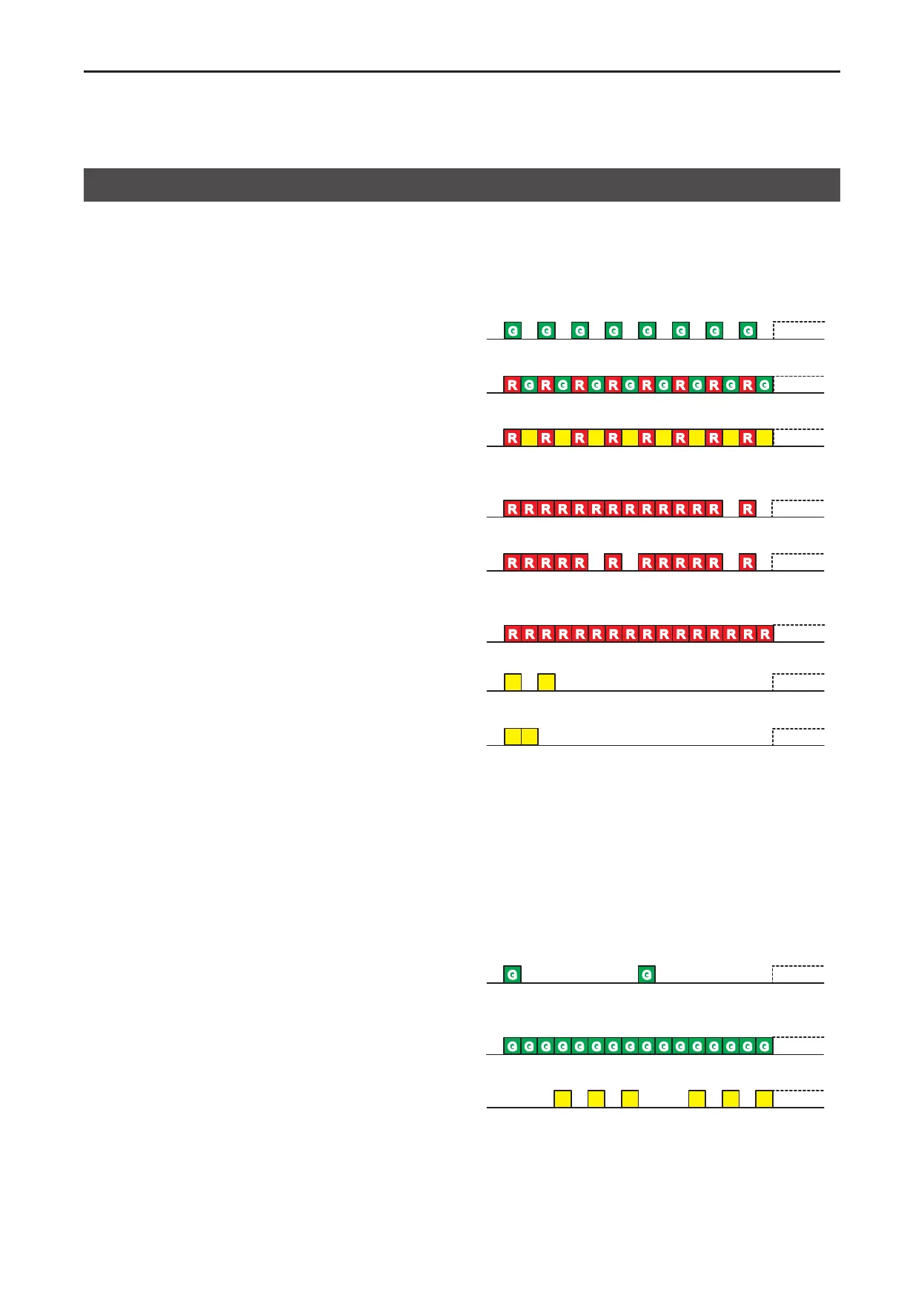

The Status indicator indicates the status of various
parameters of the transceiver, as described below�
(Reference: R=Red, G=Green, Y=Yellow, M=Magenta,
W=White, B=Blue)
• Programming:
Blinks while reading or writing data�
• Programming Error:
Blinks if cloning fails�
• Channel Error:
Blinks when you select a blank channel, or an
unlocked channel�
• TX low Battery 1:
Blinks while detecting a low battery in the TX mode�
• TX low Battery 2:
Blinks while detecting a very low battery in the TX
mode�
• TX:
Lights while transmitting�
• Bell (Blink):
Blinks about twice every second�*
• Bell (ON):
Blinks about once every second�*
* Depending on the “Bell” setting, the Status indicator blinks:
• When a call that includes a matching 2-Tone code is
received�
• When a call that includes a matching 5-Tone code is
received�
• When a Call Alert is received�
• When a Message is received�
• When a Status call that includes a matching status
number is received�
• Scan, Hunt:
Blinks while scanning for a channel with a signal, or
while hunting for a control channel�
• RX:
Lights while receiving a signal�
• CH Access:
Blinks while making a call�
G G G G G G G GG G G G G G G G
R G R G R G R G R G R G R G R GR G R G R G R G R G R G R G R G
R R R R R R R RR R R R R R R RY Y Y Y Y Y Y Y
R R R R R RR R R R R R R RR R R R R RR R R R R R R R
R R R R R R R R R R R RR R R R R R R R R R R R
R R R R R R R RR R R R R R R RR R R R R R R RR R R R R R R R
Y Y
Y Y
G GG G
G G G G G G G GG G G G G G G GG G G G G G G GG G G G G G G G
Y Y Y Y Y Y
Status indicator
